M55O4Q8A

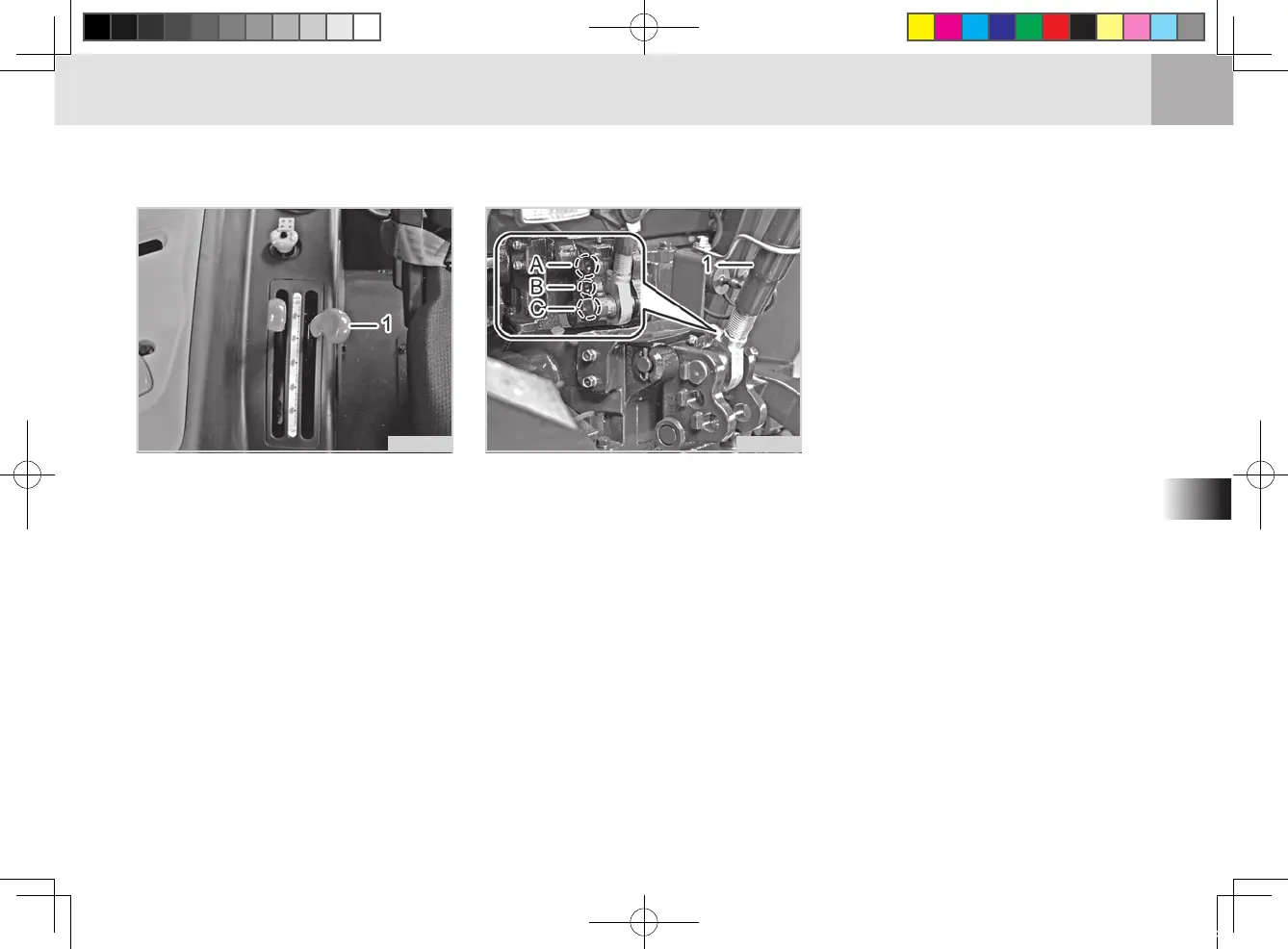

(1) Draft Control Lever
M55O558A
(1) Top Link
(A) Traction Power Is Not Required (Rotary Etc.)
(B) Heavy Load Traction Work
(C) Normal Load Traction Work
1. The draft control function is used
to prevent the wheels from spin-
ning and the engine from stopping
due to excessive draft load when
the tractor is used for work which
requires a lot of draft, such as
plowing.
2. The draft function is activated
when the lowest or middle hole on
the top link of the 3-point hitch is
used. The middle hole is for sensi-
tive draft control.
3. To keep the plowing depth shallow,
put the draft control lever to the
rear (shallow) position.
The plowing depth tends to become
deeper naturally by outer condi-
tions. When the load increases by
DRAFT CONTROL
the increase of the plowing depth
while the draft control lever is set
to the "Shallow" position, the plow-
ing depth is maintained as shal-
low because the reaction force is
transferred to the internal system
via the top link and the lifting arm
is automatically lifted.
4. To keep the plowing depth deep,
put the draft control lever to the
front (deep) position.
5. The position of the draft control
lever should be different based on
the condition of soil to keep the
plowing depth constant.
Whenworkingonaneweld,itis
recommended to put the draft con-
trol lever to the proper position for
the desired plowing depth and lock
the lever with the lock bolt.
6. When using an implement which
requires no draft function, such as
a rotary tiller and mower, use the
highest hole on the top link and put
the draft control lever in any posi-
tion.
To Next Page
