DOUBLE ACTING LEVER

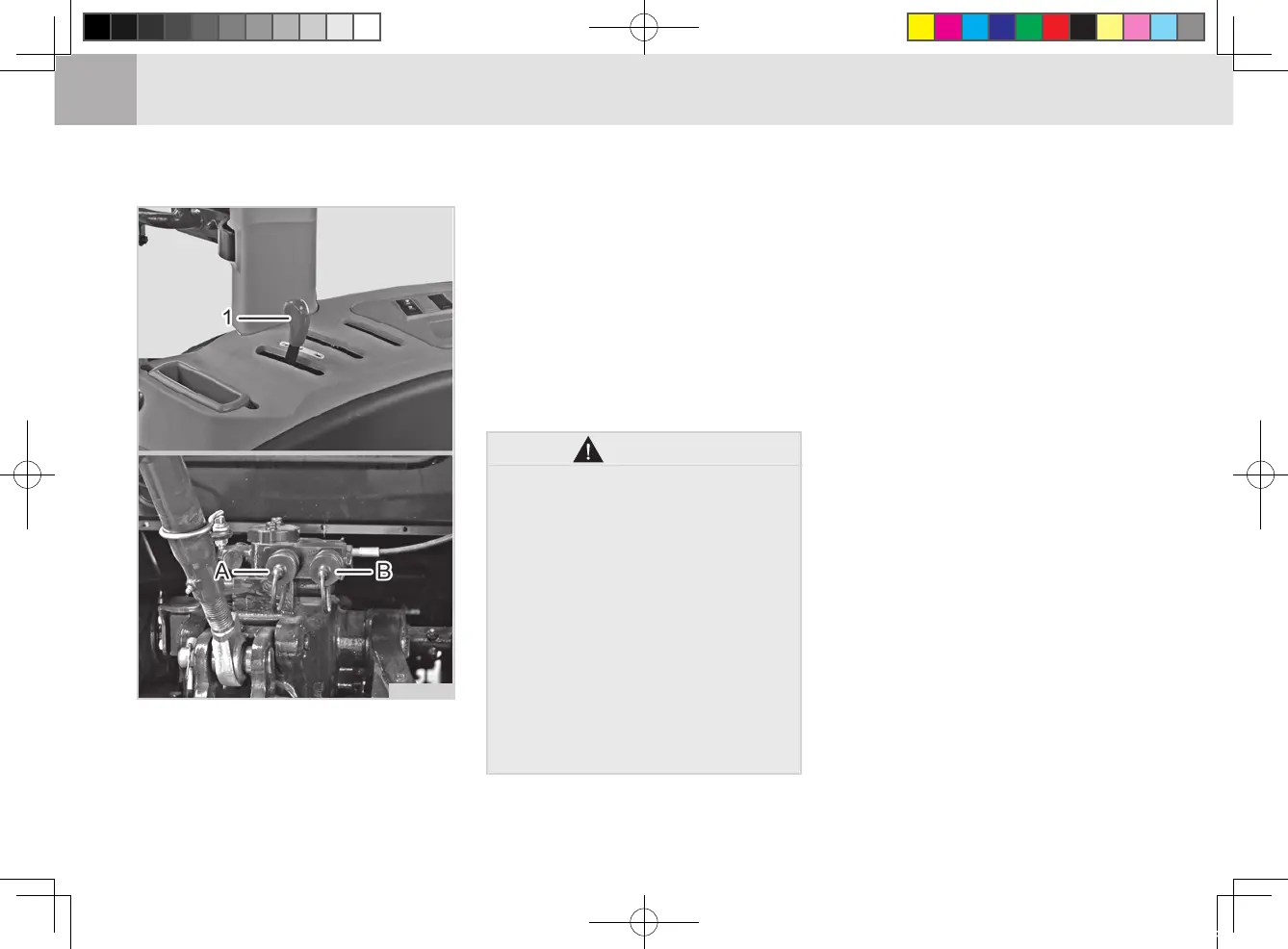

(1) Double Acting Valve 1 & Lever 1
(A) Port A (B) Port B
M55O4P2A
This lever is used to control a auxil-
iary hydraulic implement installed on
rear.
Pushing the lever supplies the port A
with hydraulic pressure while pulling
it supplies the port B with hydraulic
pressure.
For detailed information, see "Opera
-
tion" in Chapter 5.
Put the detent valve(if equipp-
ed) operating lever into the
ne u tra l posi tio n wh en the
hydraulic implement is not in
use. If the detent valve is kept
in the operating position for
an extended period of time,
the relief valve is kept open
and the temperature of the hy-
draulic fluid rises, leading to
damage of various hydraulic
parts, such as the oil seals and
O-rings.
WARNING
