POSITION CONTROL LEVER

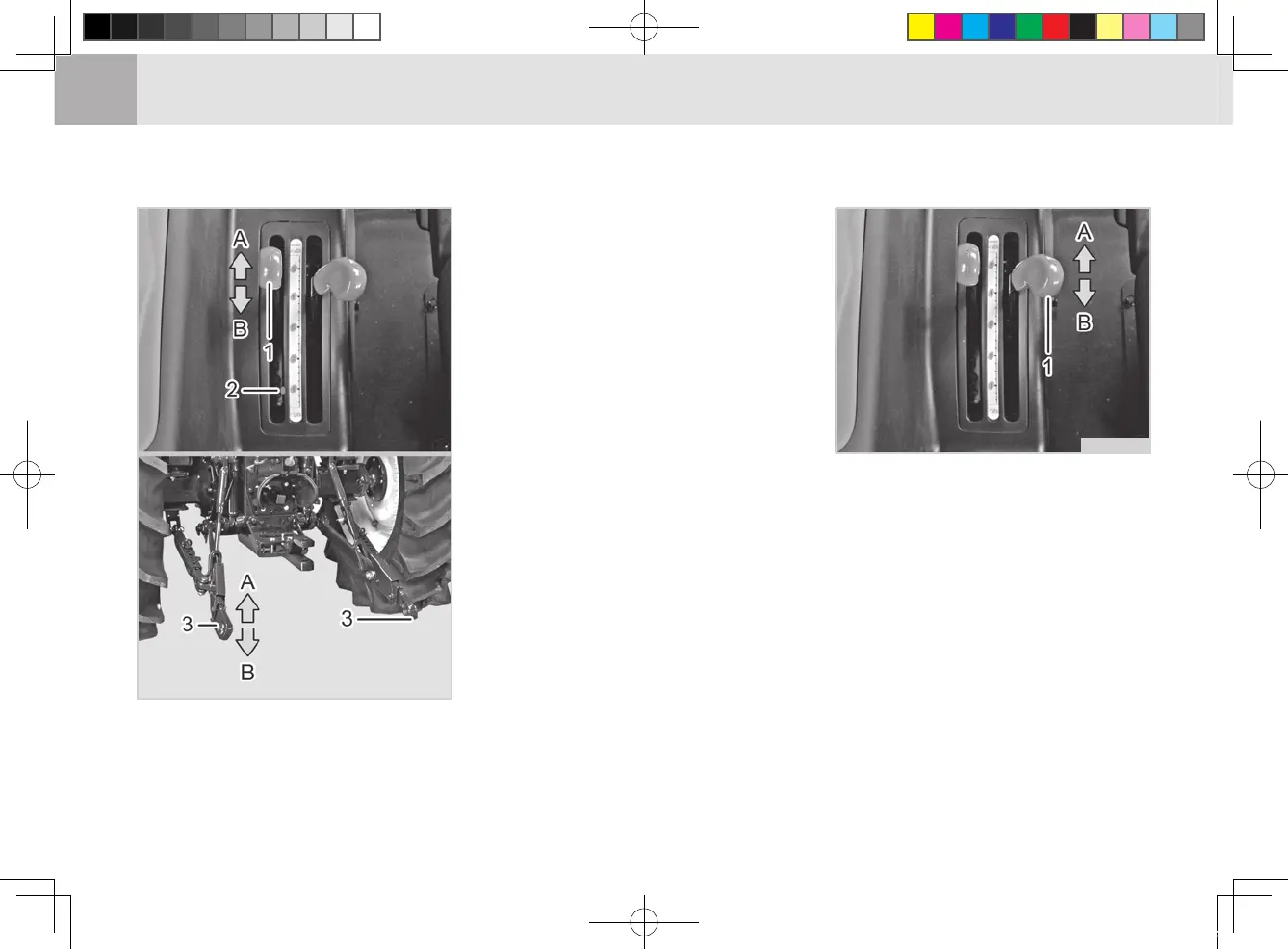

(1) Position Control Lever (2) Lock Bolt
(3) Lower Link
(A) Lifting (B) Lowering
The position control lever is used to
adjust the height of implements on
the 3-point hitch ends.
The implement attached to the lifting
arm can be lowered by pushing the
lever while the implement is raised
by pulling the lever.
In order to limit the lowering height of
implements, use the lock bolt (2) to
limit the operating range of the lever.
For detailed information, refer to
"3 point hitch control" in Chapter 5.
(1) Draft Control Lever
(A) Lifting (B) Lowering
The draft function can be used for
the plow which is installed to the
lower link (lifting arm).
If the plow is applied with excessive
draft, the lifting arm is automatically
raised to reduce the draft and then
returned to its original. This is called;
"Draft Function". The plowing depth
can be controlled by the soil status
by putting the draft control lever into
the "Deep" position to activate the
draft function at mid load and putting
DRAFT CONTROL LEVER
M55O4R5A
