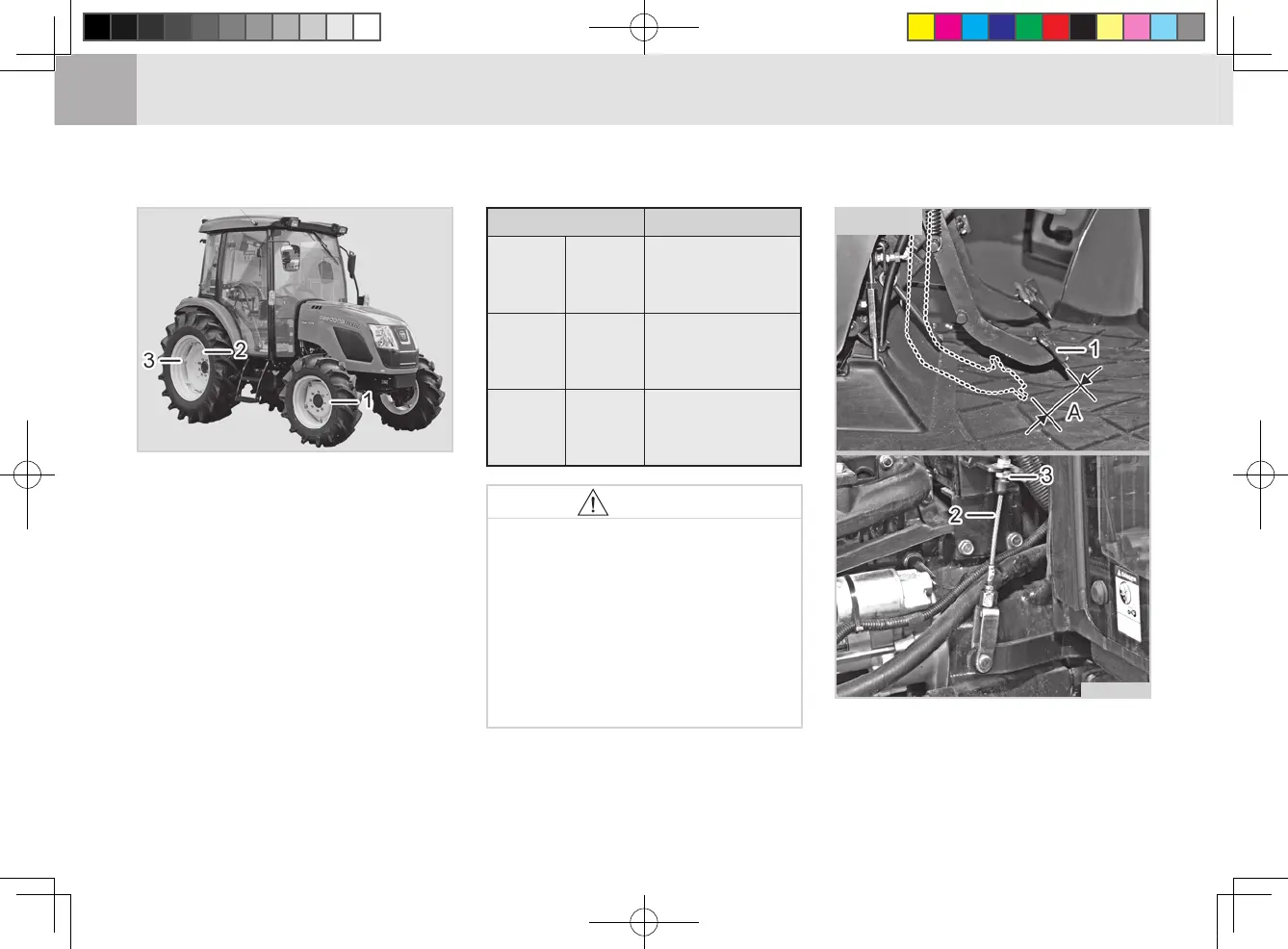

CHECKING WHEEL BOLT/NUT TORQUE (Q)
(1) Front Wheel Bolt / Nut
(2) Rear Wheel Bolt / Nut
(3) Wheel Rim Bolt/Nut
Check wheel bolts and nuts regu-
larly especially when new. If they are
loose, tighten them as follows.
Item Tightening Torque
Front
wheel
Bolt/Nut
196 ~ 225 N·m
144 ~ 166 lbf-ft
20 ~ 23 kgf·m
Rear
wheel
Bolt/Nut
275 ~ 319 N·m
203 ~ 235 lbf-ft
28 ~ 32.5 kgf·m
Front
Rear
Rim
Bolt/Nut
260 ~ 304 N·m
192 ~ 224 lbf-ft
26.5 ~ 31 kgf·m
M55O773B
To avoid personal injury:
Never operate tractor with a
loose rim, wheel, or axle.
Any time bolts and nuts are
loosened, retighten to speci-
ed torque.
Check all bolts and nuts fre-
quently and keep them tight.
•
•
•
CAUTION
M55O7C9A
(1) Clutch Pedal (2)
Clutch Cable
(3) Lock Nut (A) Free Play
ADJUSTING CLUTCH PEDAL (R)
