M55O4R6A
(1) Calibration Switch
CALIBRATION SWITCH
This switch is for calibration of shuttle
lever and clutch pedal. if any calibra-
tion is required please contact KIOTI
dealer at your earliest convenience.

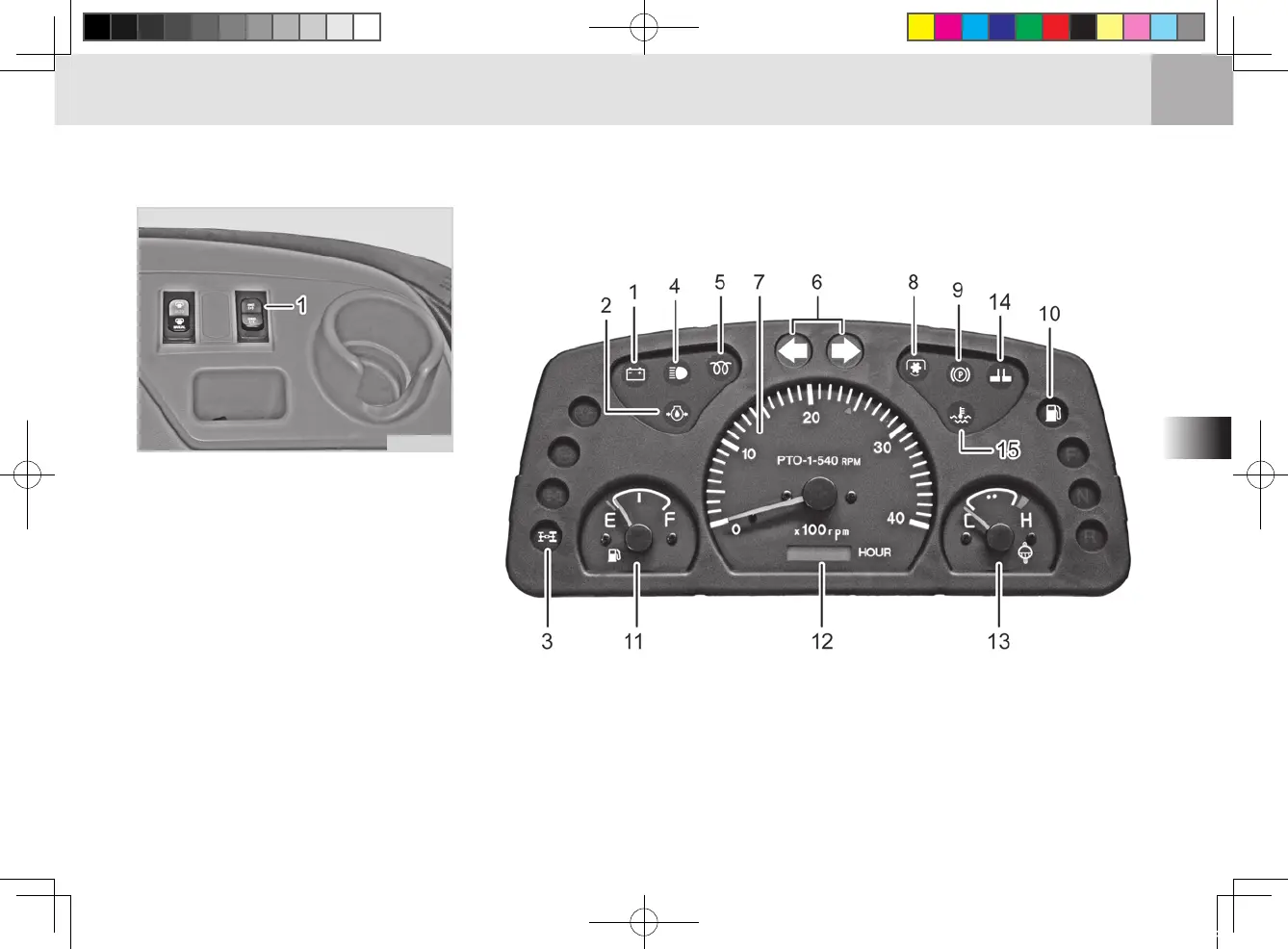

INSTRUMENT PANEL
(1) Battery Charge Warning Lamp
(2) Engine Oil Pressure Warning Lamp
(3) 4WD Operation Indicator
(4) High Beam Indicator
(5) Glow Plug Indicator
(6) Turn Signal Lamp
(7) Tachometer
(8) P.T.O On Indicator
(9) Parking Brake Indicator
(10) Low Fuel Level Warning Indicator
(11) Fuel Gauge
(12) Hour Meter
(13) Coolant Temperature Gauge
(14) One Side Brake Lamp
(15) Coolant Temperature Warning Lamp
M55O4P3A
Symbols on the instrument panel come on when the key switch is turned to
the "ON" position.
To Next Page
