ADJUSTMENT OF STABILIZER
M55O612A
1. Adjust the check link to control
horizontal sway of the implement.
It is also used to set the implement
on the back of the tractor in center.
2. To adjust the check link, pull out
the pin and adjust it until the de-
sired transverse moving distance
is obtained.
3. Fit the pin to the gardening hole
(fixed) for normal operation and
long hole (moving) for draft work.

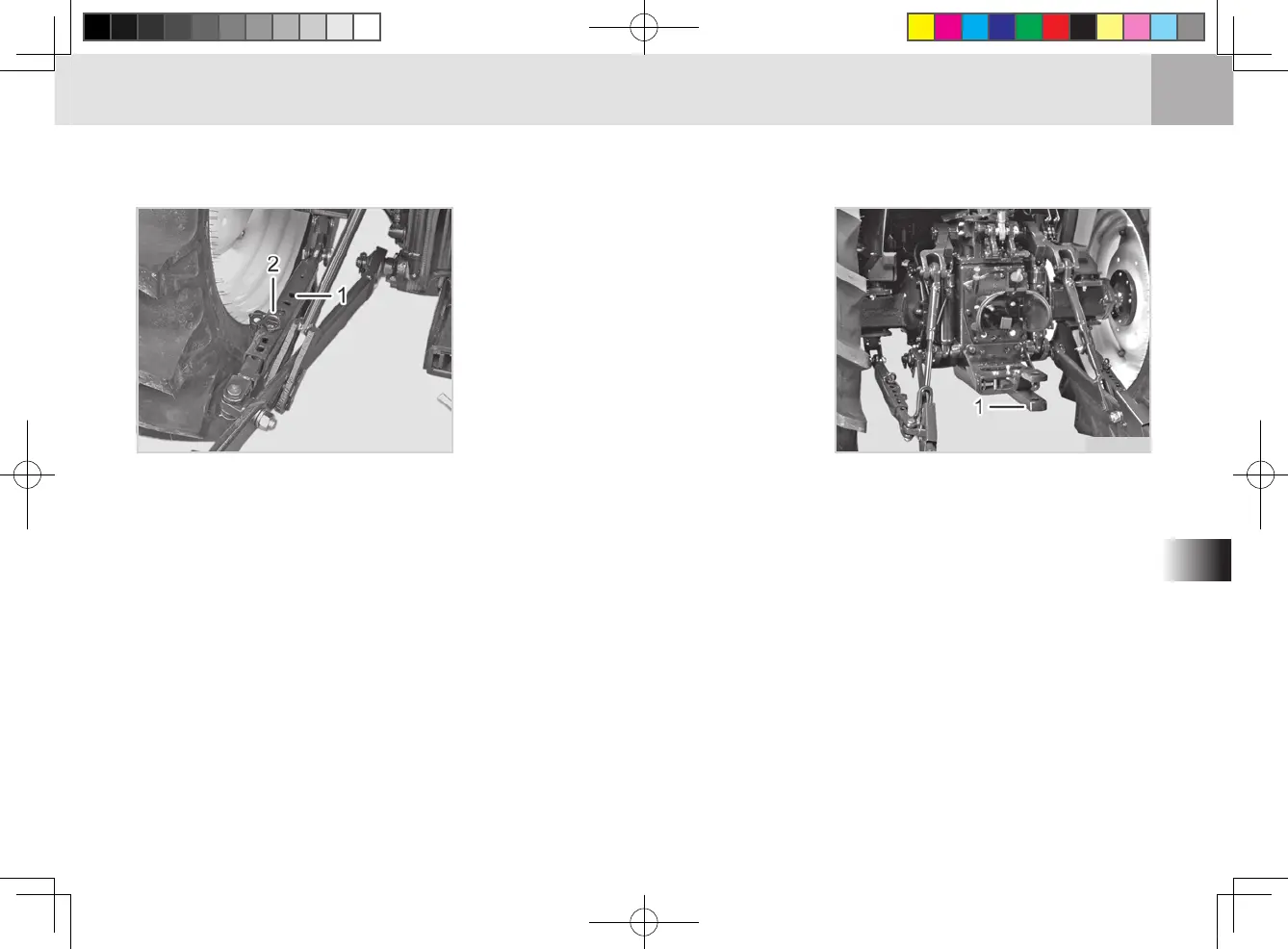

(1) Check Link (2) Pin
DISMOUNTING THE IMPLEMENT
1. Park the tractor with the implement
on level ground and lower the
implement all the way down.
Install the implement support as
needed.
2. Disconnect the top link and lower
links from the implement by re-
moving the pins.
3. Be sure to insert the set pins, lynch
pins and snap pins back to the
implement securely to keep those
safe.
4. Stop the engine and move the re-
mote hydraulic control lever back
and forth to relief the hydraulic
pressure in the system before dis-
connecting hydraulic couplers.
5. Put the top link back to its hook.
Hold both lower links together with
a rubber "strap" or "tie down". Oth-
erwise, the lower links can contact
with rear tires and cause damage
to the lower links and tires while
driving.
DRAW BAR AND TRAILER
(1) Draw Bar
M55O621A
The draw bar is used to pull an im-
plement, such as a trailer. Make sure
to check the max. towing weight of
the trailer and max. vertical load that
can be applied to the draw bar.
-Max. trailer weight (trailer + loaded
weight) = 3,000 kg (6,614 lbs)
-Vertical load on the draw bar
= 750 daN (1,653 lbs)
