Kioti RX6010C - Replacing Cabin FUSE (Ao)

7
-
38
RX6010C / RX6010PC
(A) Open
M55O794A
M55O794A

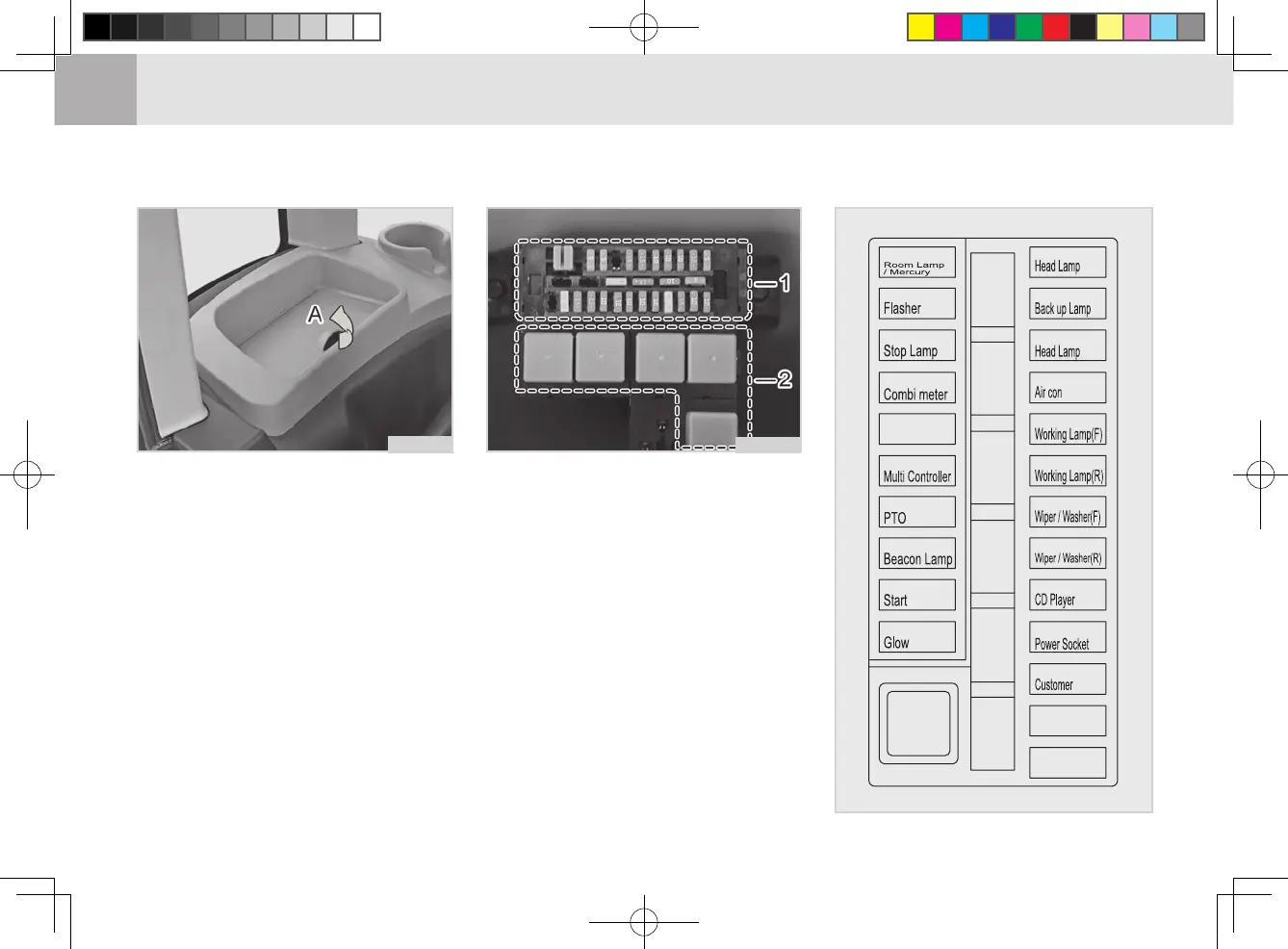

REPLACING CABIN FUSE (AO)
The cabin fuse panel is behind the
cup holder on the left fender in the
cabin.
(1) Fuse Box (2) Relay
Box
The relay and fuse designation decal
is on the fuse box cover for refer-
ence.
Fuse
Puller
Spare 5ASpare 5ASpare 5ASpare 5A
5A 10A
10A
15A
30A
10A
10A
10A
10A
10A
15A
30A
15A
10A
10A
15A
10A
15A
5A
5A
M55O7D2A
FUSE BOX (MANUAL)
M55O795A
