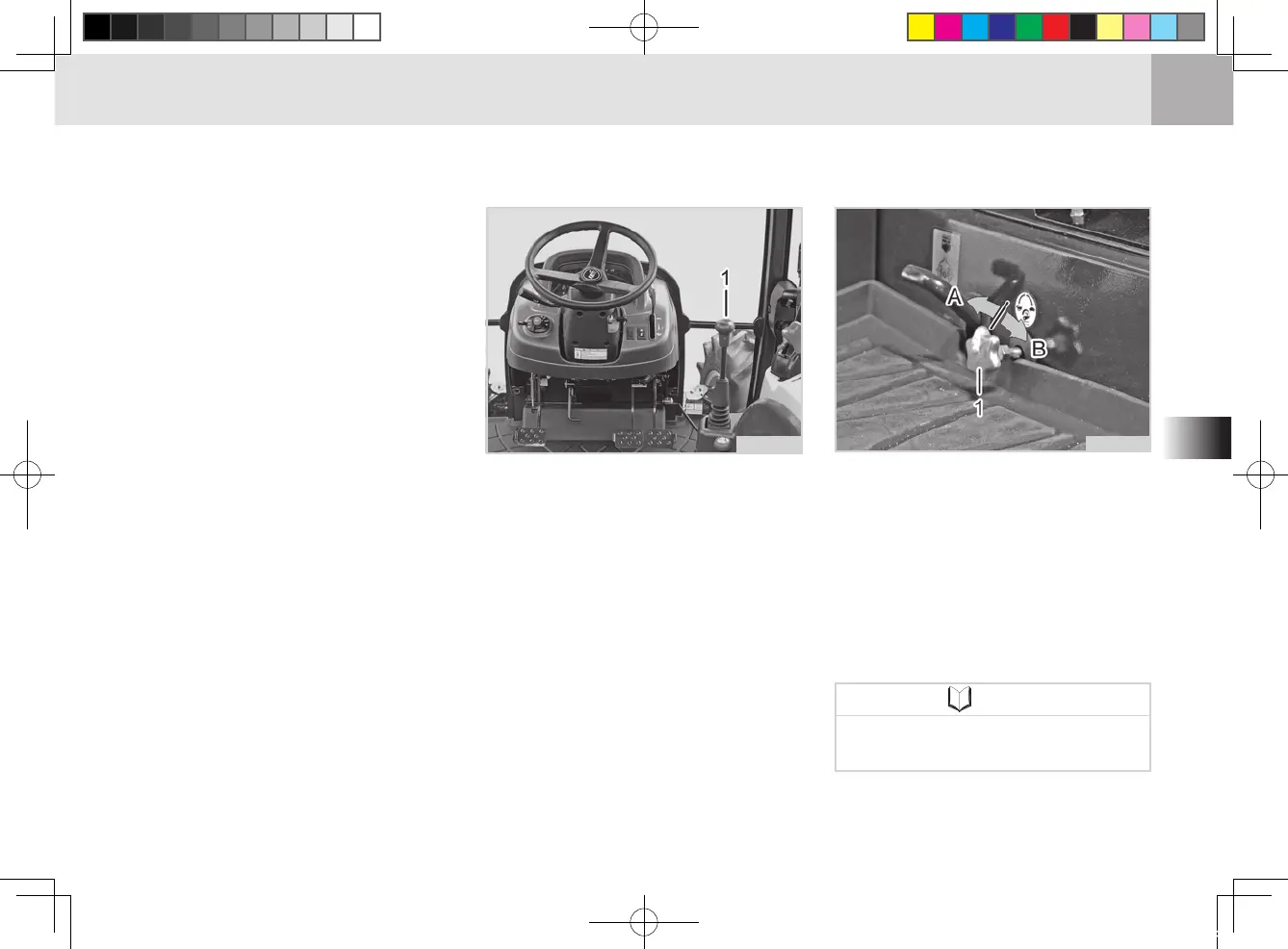

This joystick lever is used mainly to
operate the front end loader when at-
tached to the tractor.
For detailed information, refer to
"Handling Loader" in Chapter 6.
(1) Joystick Lever
M55O4S4A
JOYSTICK LEVER
the lever into the "Shallow" position
to activate the draft function at light
load.
For detailed information, refer to
"Draft control" in Chapter 5.
Turning the knob counterclockwise
increases the lowering speed while
turning it clockwise decreases the
lowering speed. Also, turning it clock-
wise to its end can x the implement
to a certain position.
LIFTING ARM (LOWER LINK)
SPEED CONTROL KNOB
This knob does not control the
lifting speed of the lower link.
NOTE
(1) Lowering Speed Control Knob
(A) High Speed (B) Low Speed
M55O560A
