Kioti RX6010C - Air Conditioner Belt Tension (Ab); Cleaning Air Conditioner Condenser (Ac)

7
-
29
MAINTENANCE
7
1. Stop the engine and apply the
parking brake.
2. Unscrew the nuts (B) and (D) and
press the middle of the belt with
force of 10 kg/f. Adjust the belt ten-
sion to the specification with the
nut (C). Then, tighten the nuts (B)
and (D).

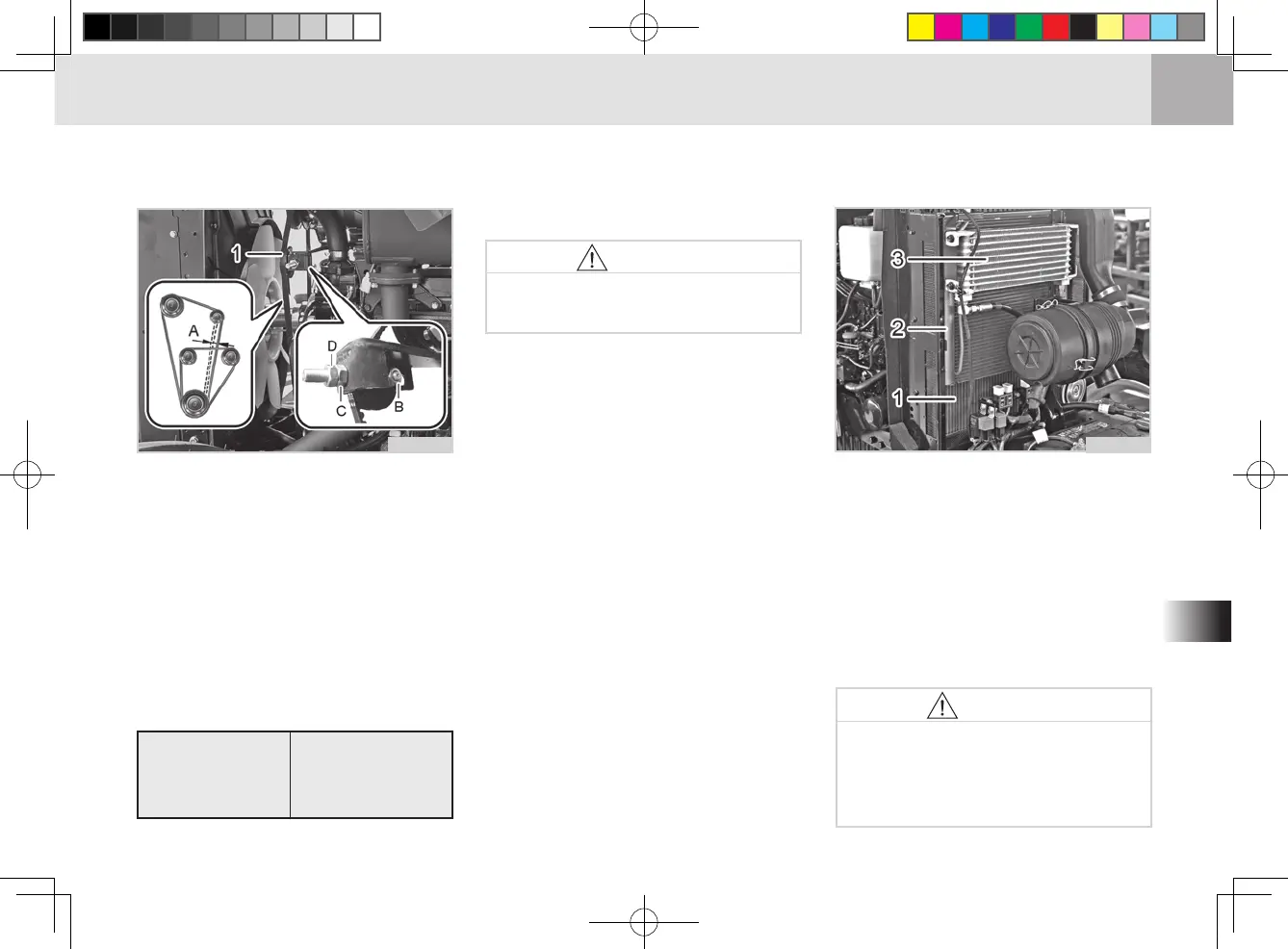

(1) Air Conditioner Belt
(A) Tension Amount (B) Mounting Nut
(C) Adjustment Nut (D) Lock Nut
AIR CONDITIONER BELT TENSION (AB)
3. Replace the damaged belt.
M55O785A
Stop the engine before check-
ing air conditioner belt.
•
CAUTION
(1) Net (2) Condenser
(3) Oil Cooler
CLEANING AIR CONDITIONER
CONDENSER (AC)
1. Pull the hood lever on the right
side forward to open the hood.
2. Undo the wing bolt and pull the
grill to the right side to remove it.
Remove the oil cooler as neces-
sary to clean the condenser.
M55O7e6A
Ma k e s u re t o stop en gi n e
when checking. If cooler fan is
blocked by dirt, clean with a soft
brush or cloth using tab water.
•
CAUTION
Belt deection for
proper fan belt
tension (A)
0.39~0.47 in
(10~12 mm)
