(1) Main Shift Lever
M55O4E2A

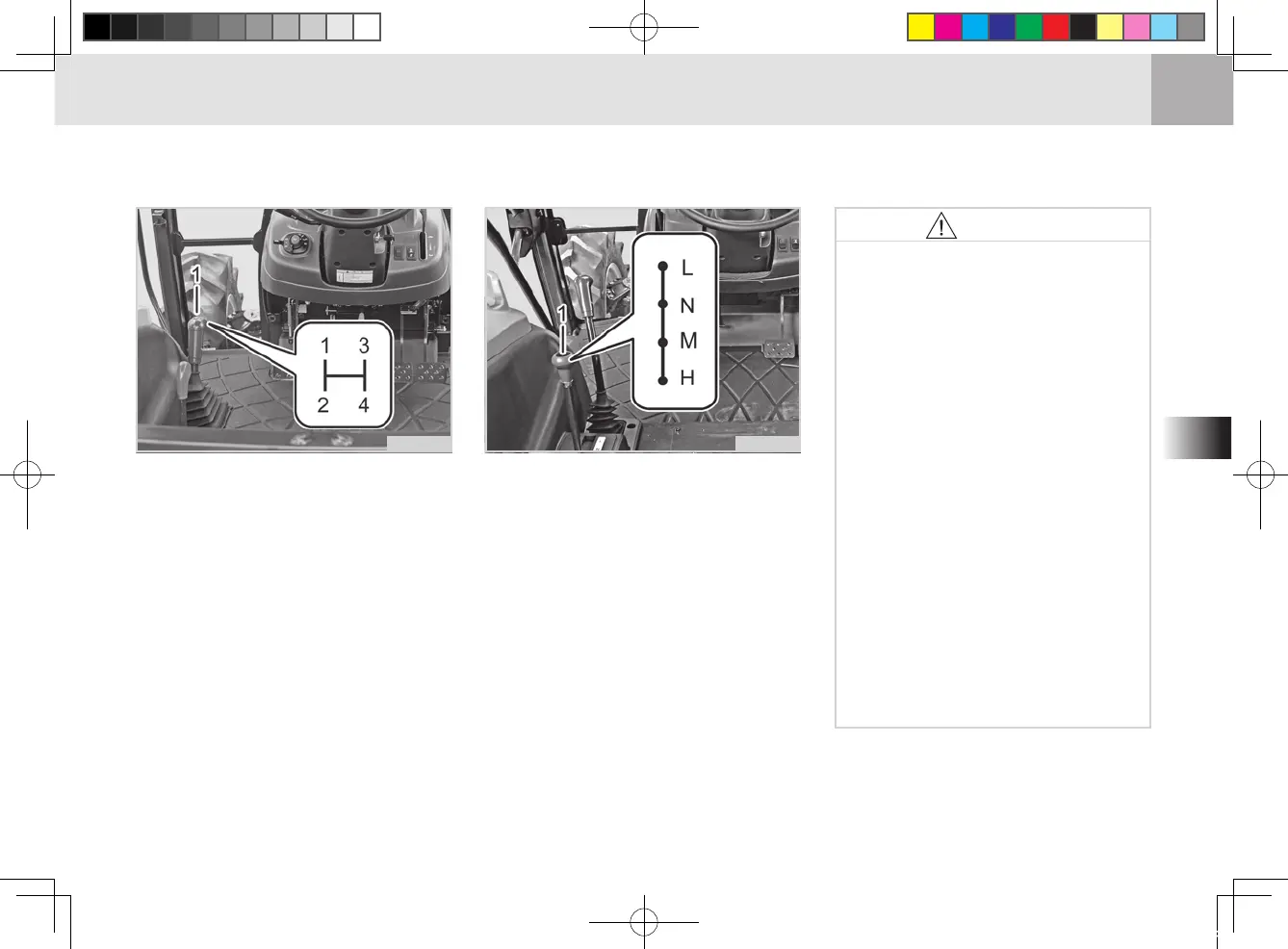

MAIN SHIFT LEVER
Four speeds can be selected by
moving this main shift lever in the
「
H
」
shaped path. It is possible to
shift this lever from the 1st to 4th
gears even when the tractor is mov-
ing by disengaging the clutch as
these gears are synchromeshed.
There are 4 speeds for the main shift
lever, 3 speeds for the range shift
lever and 2 directions for the shuttle
shift lever. Therefore, there are 12
forward driving speeds and 12 re-
verse driving speeds in total.
RANGE GEAR SHIFT LEVER
M55O4E3A
3 speeds can be selected by operat-
ing the range gear shift lever in the
「I」
shaped pattern. Make sure to
shift this lever after the tractor is
completely stopped by depress-
ing the clutch pedal. If the lever is
not moved freely or makes abnormal
noise, put the lever in the neutral po-
sition, depress the clutch pedal, and
then try to shift the lever.
(1) Range Gear Shift Lever
(L) Low Speed (N) Neutral
(M) Middle Speed (H) High Speed
Make sure to shift the range
gear shift lever with the clutch
pedal depressed and the trac-
tor stationary.
Never put the range gear shift
lever in the 3rd gear position
during driving backward as it
is dangerous to drive at a high
speed.
The tractor is not braked by
depressing the brake pedal
without depressing the clutch
pedal at a low speed as rota-
tional force of the axle has a
major effect at a low speed.
The r e fo r e , di s eng a g e th e
clutch before depressing the
brake pedal to stop the tractor.
To shift the lever, depress the
clutch pedal fully.
•
•
•
•
CAUTION
