The center of gravity of the
tractor is higher compared to
other common vehicles, so
the possibility of a roll-over
accident is very high. Be extra
careful when driving on a lat-
eral slope, bumpy road, road
with puddles, and narrow road.
Make sure to set the ROPS in
its original position (straight
up position) and fasten the
seat belt.
If stopping the engine while
driving, the steering perfor-
mance can become deterio-
rated due to loss of hydraulic
power, resulting in a severe
accident. Never stop the en-
gine while driving.
Always grip the steering wheel
using both hands while driv-
ing.
WARNING
3-POINT HITCH CONTROL SYSTEM
POSITION CONTROL
The 3-point hitch can be controlled
by the position control lever.
1. The position control lever is used
to lift or lower the lifting arm (lower
link) of the 3-point hitch.
2. Pushing the lever forward lowers
the lower link while pulling the le-
ver backward lifts the lower link.
3. The height of the lower link is pre-
cisely controlled proportional to the
position of the lever.

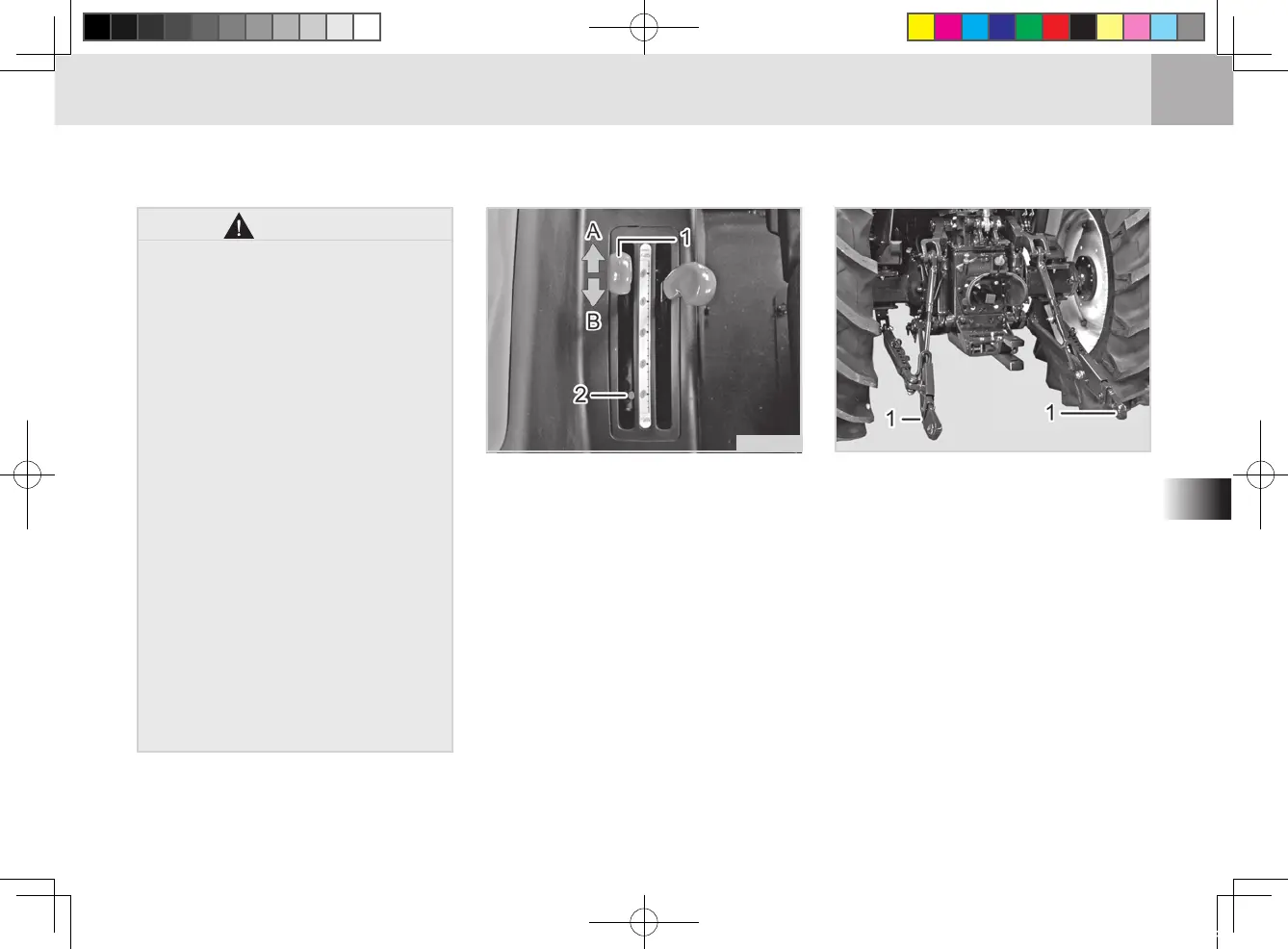

M55O4R3A
(1) Position Control Lever (2) Bolt
(A) Lifting (B) Lowing
4. The lower link is lifted by the hy-
draulic energy of the tractor while
it is lowered by potential energy
of its own weight. Therefore, the
implement cannot be lowered by
the hydraulic pressure.
5. Therefore, the implement attached
to the lower link may be lifted by
protrusion on the ground when it is
lowered to the ground. It is called
as"oating".
(1) Lower Link
M55O563A
