Kioti RX6010C - Operation TIP for 3-Point Hitch Elements; Adjustment of Lift ROD

6
-
5
3-POINT HITCH IMPLEMENT AND LOADER OPERATION
6

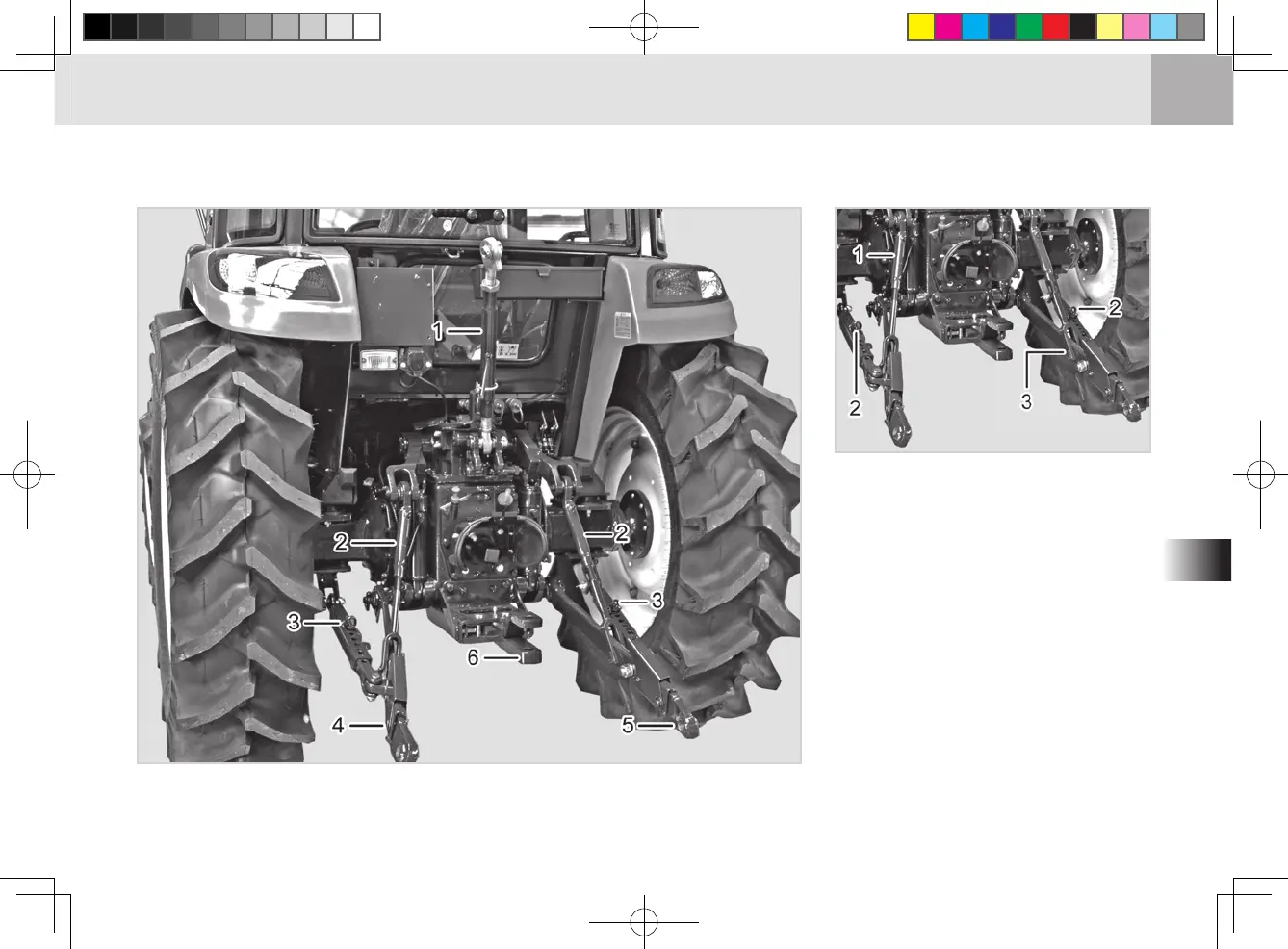

(1) Top Link
(2) Lift Rod
(3) Check Link
(4) Lower Link (L)
(5) Lower Link (R)
(6) Draw Bar
M55O618A
OPERATION TIP FOR 3-POINT HITCH ELEMENTS
M55O622A
ADJUSTMENT OF LIFT ROD
(1) Lift Rod (2) Check Link
(3) Pin
1. Adjust the implement height by
turning the lift rod after removing
the pin.
2. After adjustment, secure it with the
pin.
