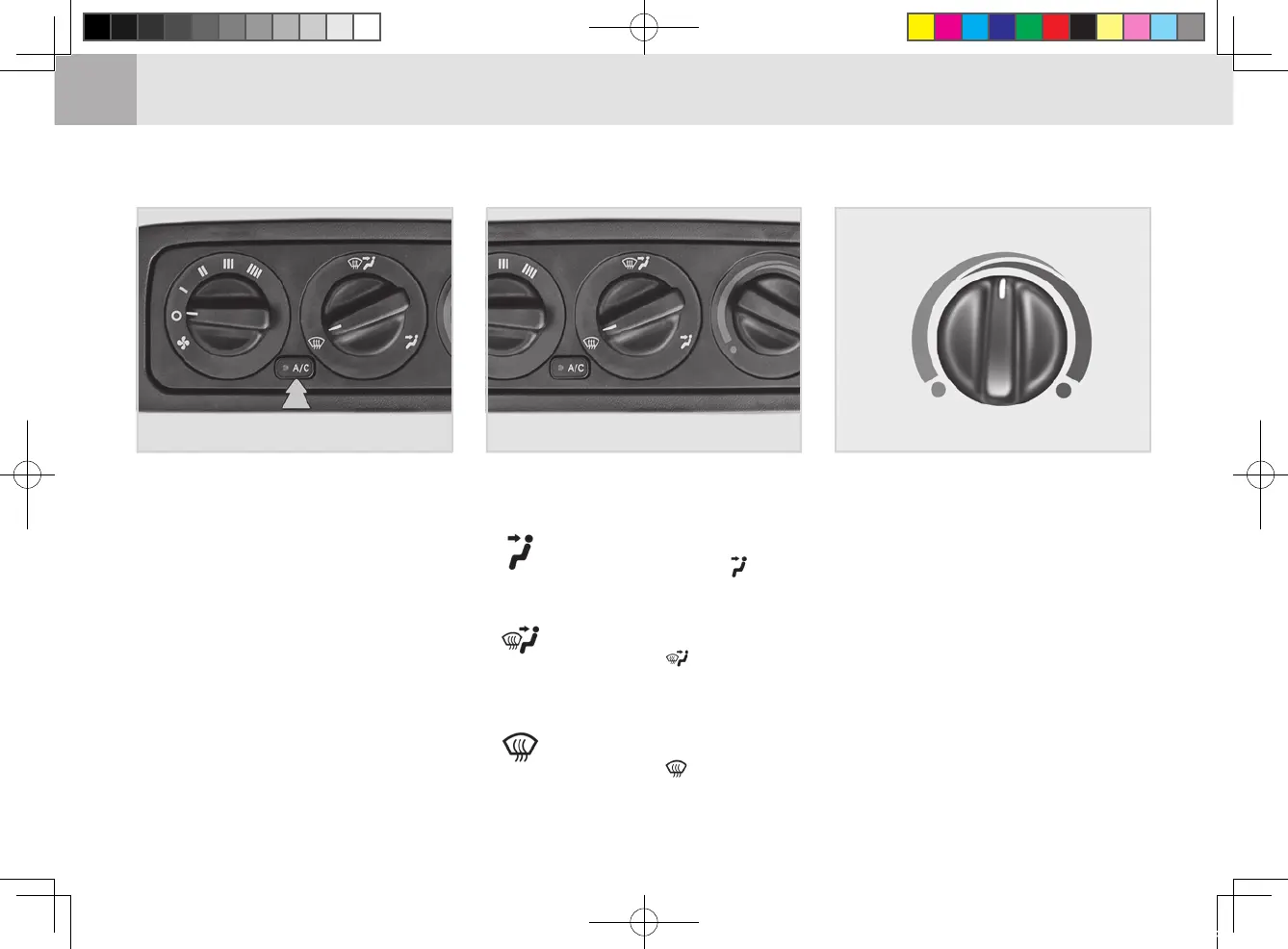

AIR CONDITIONER SWITCH
Press it to activate the air conditioner
and press it again to deactivate the
air conditioner.
The heater can be operated by the
temperature control switch and fan
speed control switch.
VENT MODE CONTROL DIAL
M55O4J5A M55O4J6A
· : When the vent mode control
dial is turned to the ( ) posi-
tion, air comes out from the 4
vents on the left and right.
· : When the dial is turned to
the Bi-level ( ) position, air
comes out from 4 vents in
the front and 4 vents on the
left and right.
· : When the dial is turned to
the Defrost ( ) position, air
comes out from 4 vents in
the front to defrost the wind-
shield.
H11O498A
The desired temperature can be set
by adjusting this dial. Warm air ows
out by turning it clockwise (Red), and
cool air ows out by turning it coun-
terclockwise. (Blue)
The temperature control dial only con-
trols the amount of air owing through
the heater and air conditioner.
Therefore, unnecessary load can
be applied to the air conditioner if
this dial is set to the high tempera-
ture with the A/C in operation.
TEMPERATURE CONTROL SWITCH
