4.3.6.1 Parameter "Capture Only the First NOK EO for Bar Graph"
To use this function the EOs must be
ositioned so that their numbering
also corresponds to the order in which the curve should pass through!
Result 1
The cause of the NOK is not
clearly discernable. The NOKs
of EO-3 and EO-4 are only a
consequence of the problem in
the range of EO-2. They
greatly weaken diagnosis of
causes.
Result 2
The cause of the overall NOK
is now clearly discernable. It
lies in the range of EO-02.

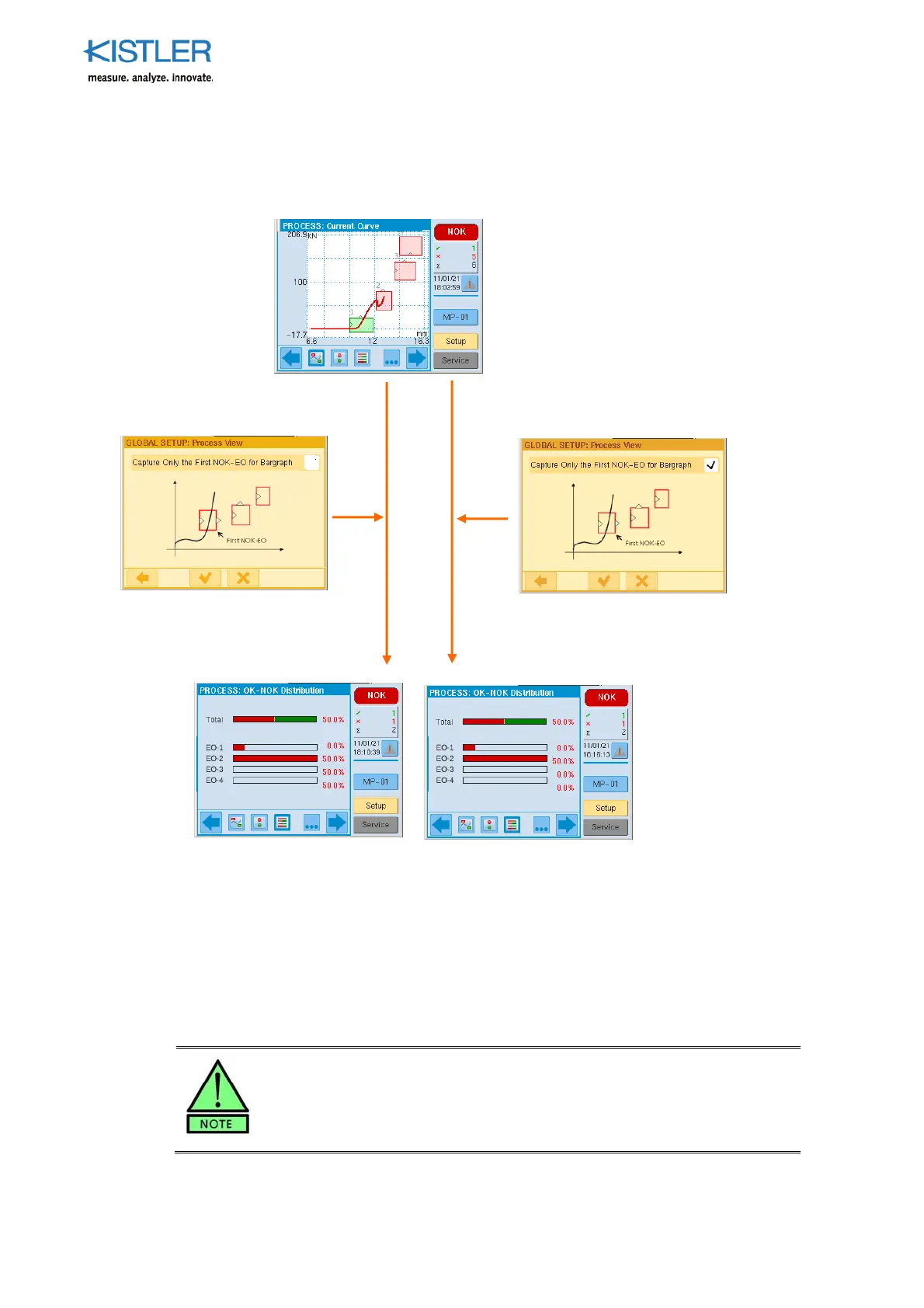

Example
The actual cause of the NOK here is
clearly in the range of EO-2. The
NOKs of the following EOs are only a
result of this. If they are also counted
in the bar graph, the cause of the
NOK will no longer be clearly evident.
