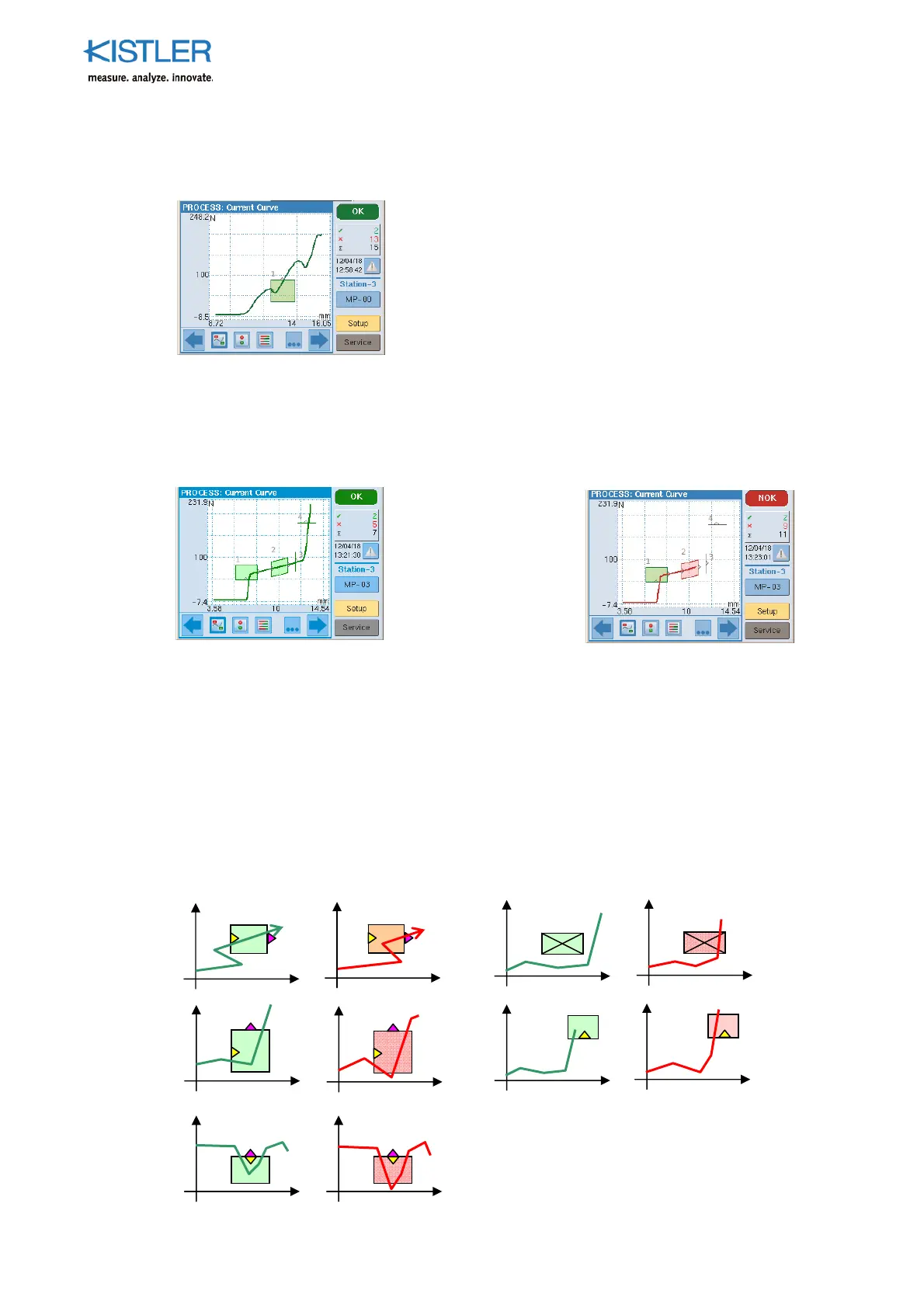

4.4.5 Testing Newly Set Up Evaluation Objects
Change over to the PROCESS main menu:
Now run several cycles and assess the evaluation results.
Correct reference points and/or the EO coordinates as
necessary.
4.4.6 Types of Evaluation Object
The maXYmos BL offers a total of five types of evaluation object [EOs]. Four of these can be
specified for each measurement curve or for each measurement program.
4.4.6.1 Evaluation Object [EO] UNI-BOX
4.4.6.1.1 Evaluation Criterion
The measurement curve must enter through the specified entry side once and leave through
the specified exit side once. Any sides can be defined as entry and exit side. The first point
of intersection of the curve with a boundary of the box is the entry event, the following
point of intersection with a boundary of the box the exit event.
Example cases
≠
X
Y
X
Y
X
Y
X
Y
X
Y
X
Y
X
Y
X
Y
Y
Y
X
OK
NOK
IO
NOK
