4.4.6.3.4 Specifying Catch Zone for LINE-Y
See also section: "Catch Zone for Process Value", p. 76 ff.
De
IMPORTANT! The actual evaluation is carried out entirely manually on the basis of the
LINE-X limits. The only purpose of the catch zone is to ensure that process values are
captured even beyond these limits. If LINE-Y is missed, the distance away the measurement
curve passes by can be of statistical interest.
4.4.6.3.5 Showing Process Value of LINE-Y in Value Table
7.69 cm

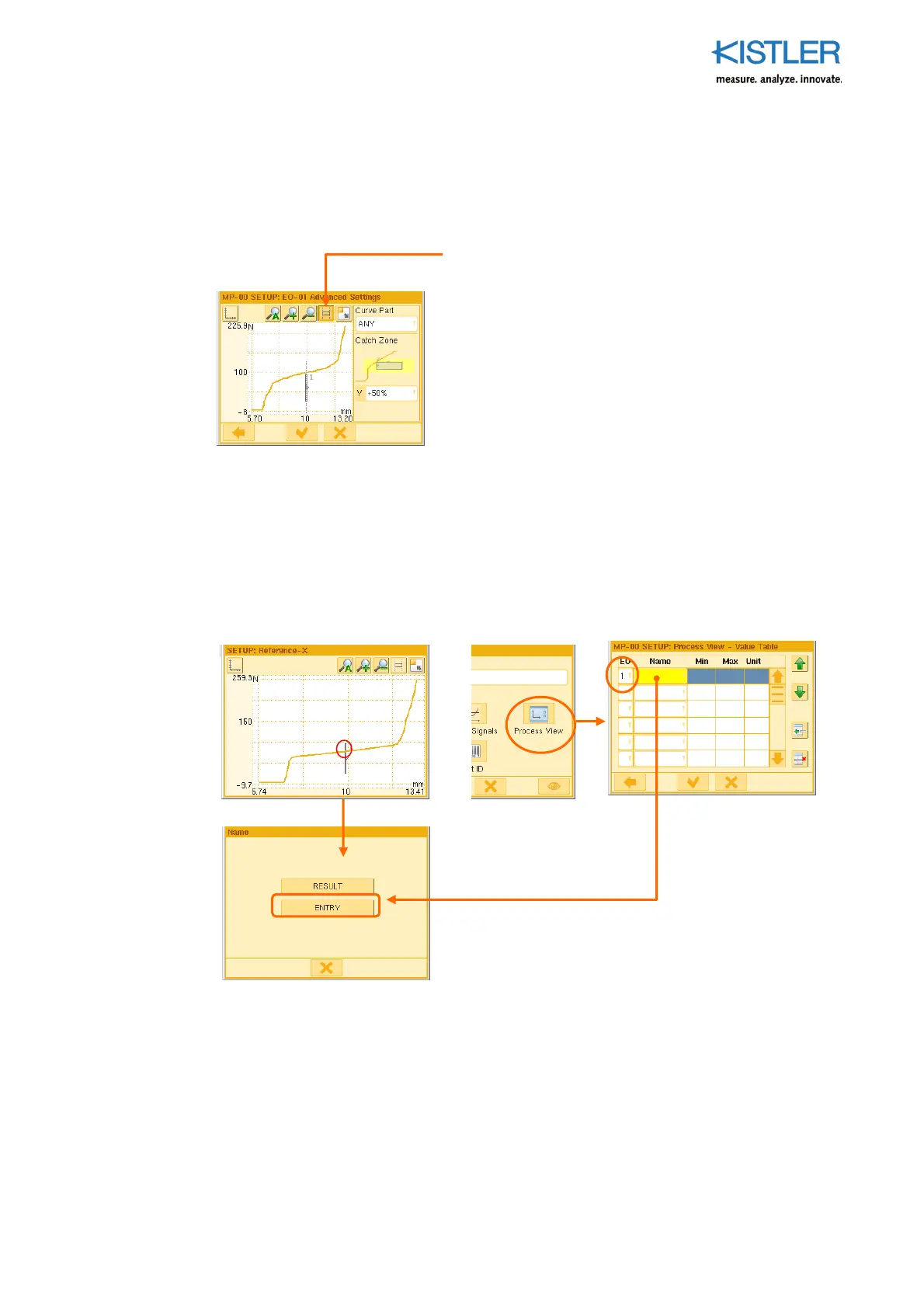

The catch zone, within which
p
rocess values are still
caught, is specified separately for each EO (left
screenshot). It is specified as a percentage of the
particular width or height of the EO (see adjacent
screenshot)
50% has been chosen here as catch zone. Process
values are therefore still captured at the LINE-Y line
extended 50 % above and 50 % below (relative to
the height of this evaluation object).
"Dis
p
lay Catch Zone" button
See also "Choosing Process Value Source for
Value Table S.79)
