SETUP – Configuring Monitor Parameters
5867B_002-626e-04.16 Page 49

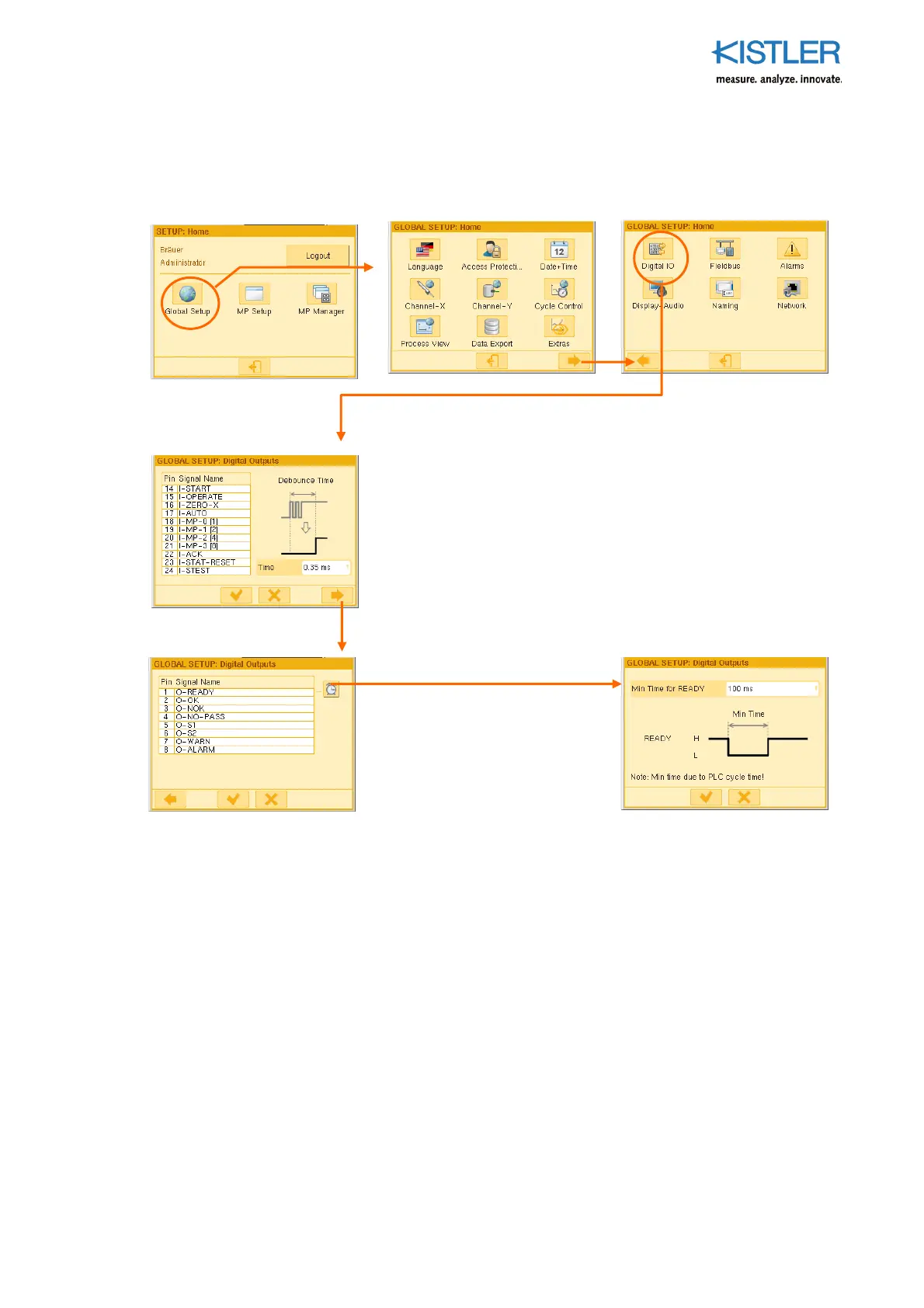

4.3.9 Configuring Digital IOs
To accommodate excessive
PLC cycle times the signal
READY=0 can be "artificially"
lengthened!
The debounce time s
ecified here
affects all of the inputs. In the event
of problems you should experiment
with different times.
Ticking the checkbox for level
inversion effects an inversion of
the digital output logic. (Logical
1 = 0 Volt)
