Kistler maXYmos BL - Configuring Digital IOs

maXYmos BL, Type 5867B…
Page 48 5867B_002-626e-04.16

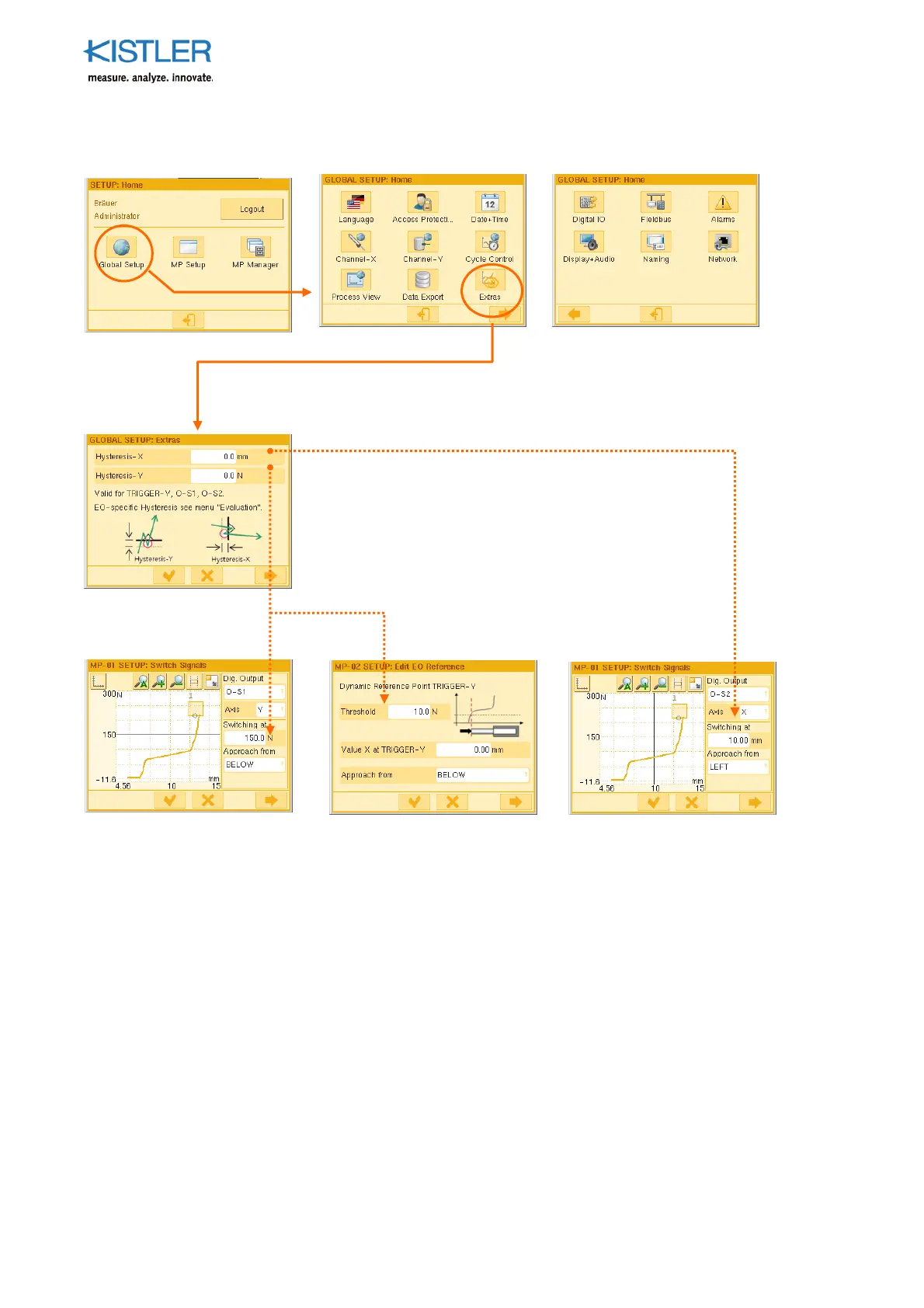

4.3.8 Specifying Hysteresis for Switch Signals and Trigger-Y
Hysteresis-Y affects the
threshold of a switch signal
relative to the Y axis.
Hysteresis-X affects the
threshold of a switch signal
relative to the X axis.
Hysteresis-Y affects the
threshold of the dynamic
reference point TRIGGER-Y.
See dashed-line arrows for effect of hysteresis-X and
hysteresis-Y!
