maXYmos BL, Type 5867B…
Page 74 5867B_002-626e-04.16

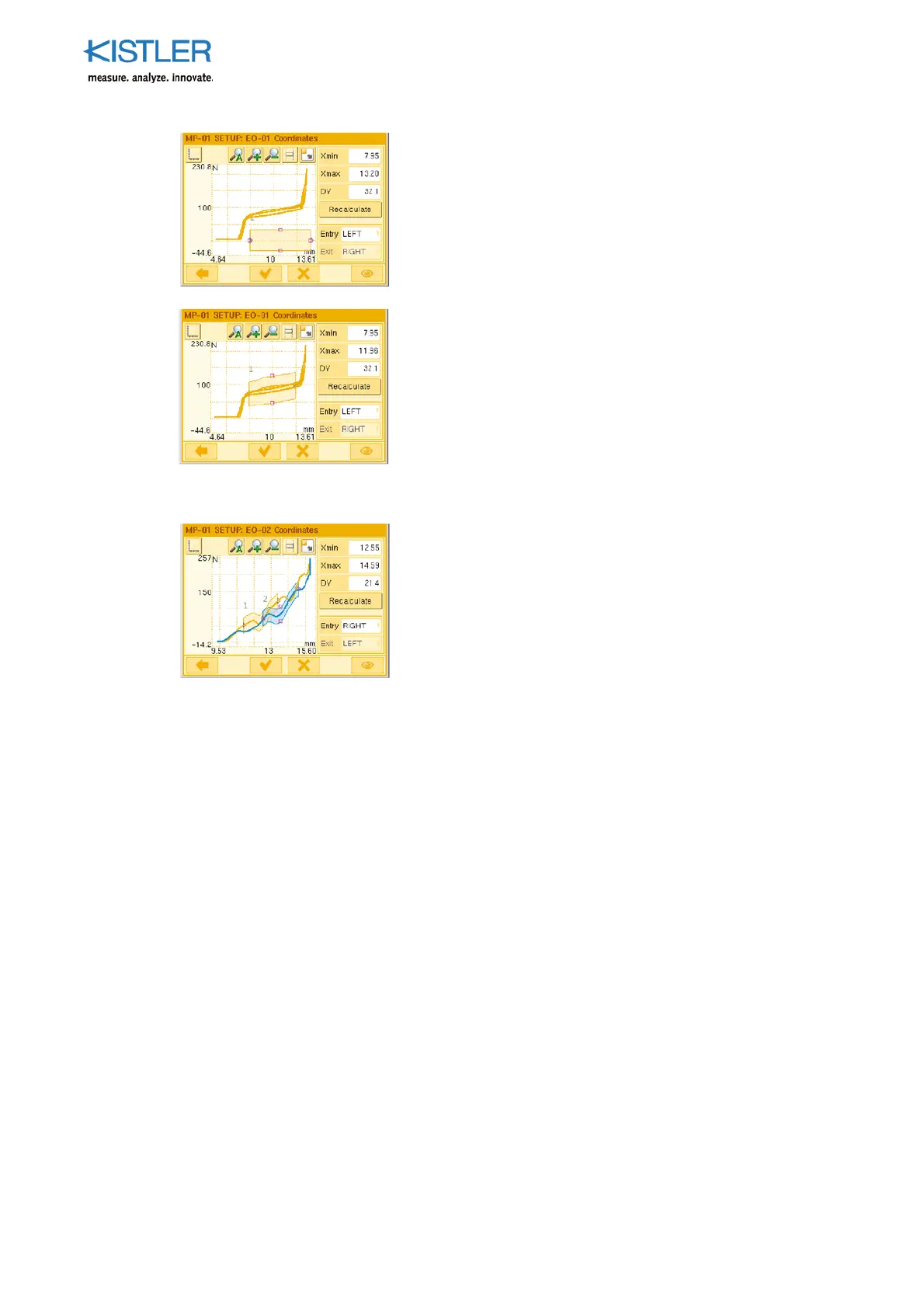

Only those measurement curves that cover the complete
X range of the envelope are included in its generation. In
the adjacent example none of the curves meet this
condition, so the ENVELOPE "drops" onto the X-axis.
However, as soon as these conditions have been met, for
example by moving the right-hand exit side to the left,
the envelope will spring back onto the bundle.
The envelope can also be updated by dragging a corner
or with the "Recalculate" button
4.4.6.5.3 Allocating ENVELOPE to one Part of Curve
If the measurement curve consists of a forward
(POSITIVE) and a return part (NEGATIVE), the envelope
can be allocated to one of these parts. The brown
envelope then evaluates just the brown, the blue
envelope just the blue part of the curve. The particular
allocation is made using the "Entry" parameter.
