4.4.9 Sequencer Mode (License 2832 A)
The Sequencer Mode allows programming of sequence controls that are used to control the
processes. Enabling sequencer mode turns the maXYmos BL into a "standalone" device.
An independent program can be created for every measurement program, using, for
instance, the freely programmable digital input and outputs to poll or output special,
process-relevant conditions.
- Important features of the maXYmos BL sequencer mode:
- 11 freely programmable digital inputs
- 8 freely programmable digital outputs
- Up to 128 elements for measurement program
- "Cam function" for the X and Y axis
- 16 measurement programs
- 20 variables
When sequencer mode is enabled, external activation via: - fieldbus, -
Digital inputs and outputs
will be disabled. The digital inputs and outputs can then only be
activated using the sequencer program.

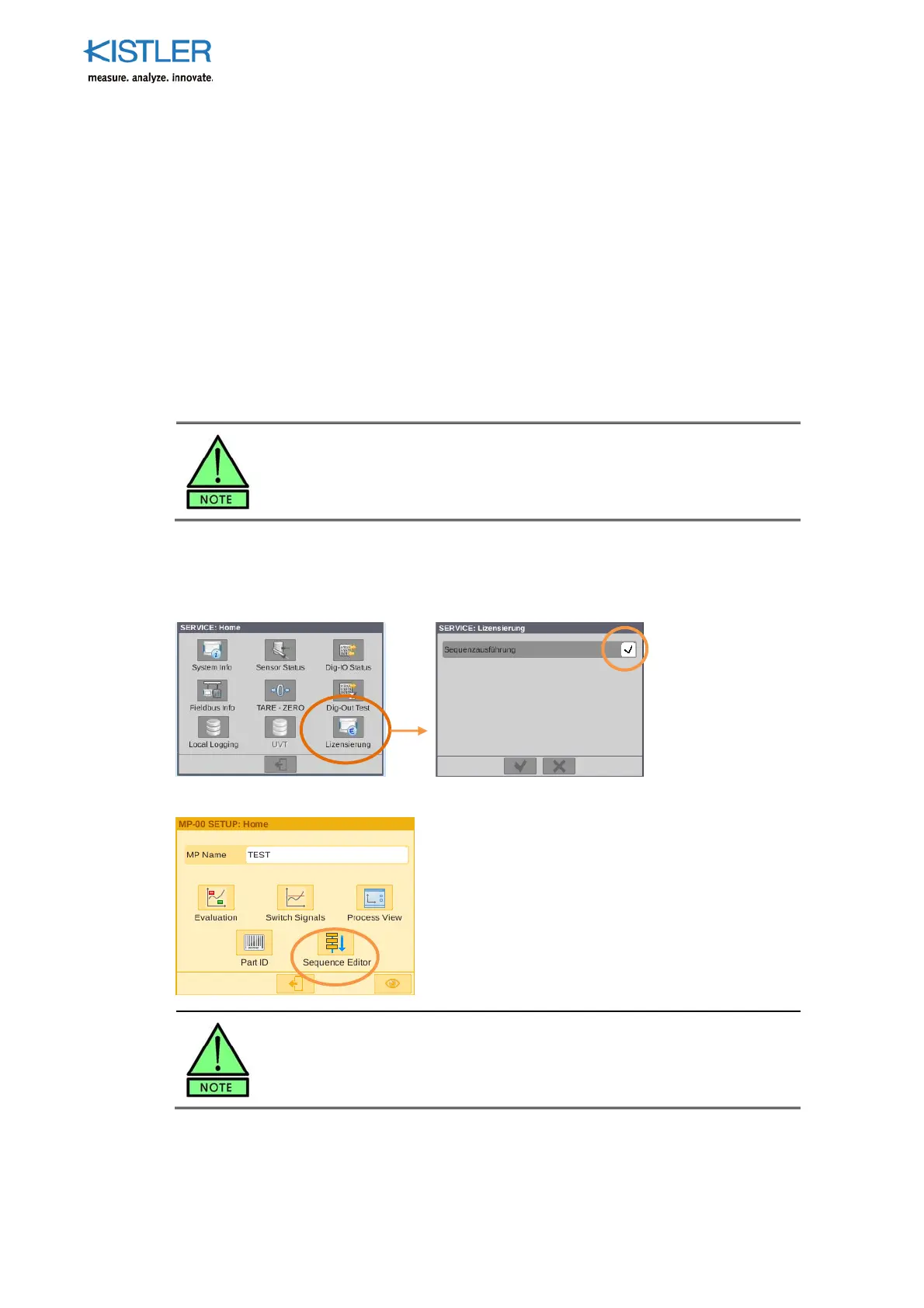

4.4.9.1 Enabling Sequencer Mode
Before you can start using it, you need to enable sequencer mode in the Service menu first.
The Sequence Editor will afterwards be available in the MP menu.
Enablin
g
se
q
uencer mode is not
p
ossible unless the 2832A activation
license is available.
