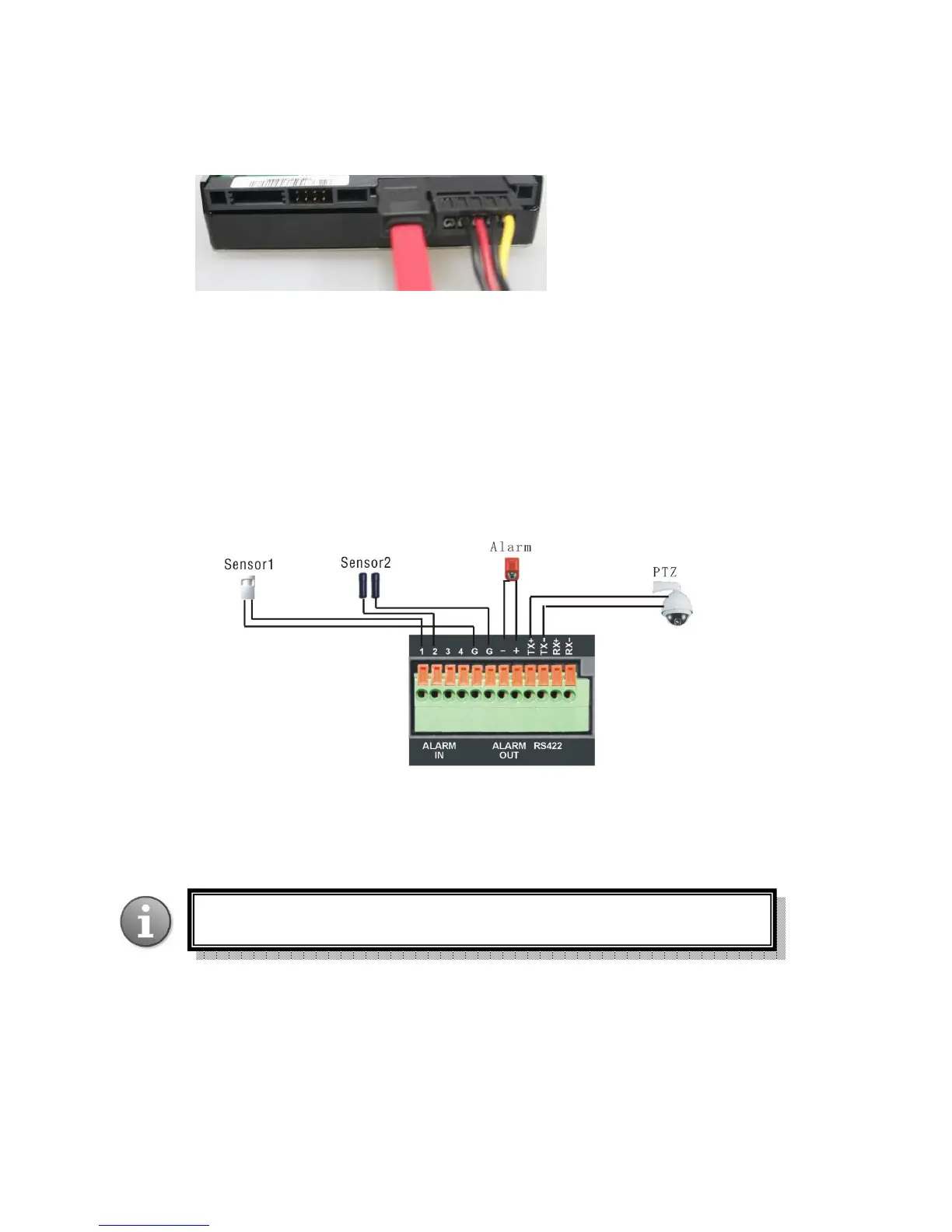

You r HD D sh o u l d be installed insi d e t h e DV R . Pl e a s e c o nne c t the HD D in the standard
way. All necessary cables are delivered with the DVR. Use instructions that came
together with the hard drive for
exact wiring. Please connect the
power cable to the appropriate
socket, and the data cables to their
corresponding connectors.
For the list of HDD drives tested for compatibility please see Appendix 3.
3.6.3 PTZ Control Connections
Connect the PTZ control jacks to the corresponding RS422/RS485 T
X
+ and T
X
- interfaces on
the rear panel.
For detailed description of PTZ protocols, baud rates and IDs, please refer to
