Sound mode
Pitch: Pitch EG
Reference
JS+Y
Intensity of the corresponding LFO when the joystick is pushed
forward.
-12…0…+12 Parameter value. Negative values invert the LFO
shape.
AMS / Intensity
Alternate Modulation Source for the LFO. See “AMS (Alternate
Modulation Source) list” on page 229. Use the “Intensity”
parameter to set the intensity of the modulation.
Pitch: Pitch EG
Here you can make settings for the pitch EG, which creates time-
variant changes in the pitch of the oscillators. The depth of pitch
change produced by these EG settings on the oscillators is
adjusted by the “Intensity (AMS1/2 Intensity)” parameter (see
page 216).

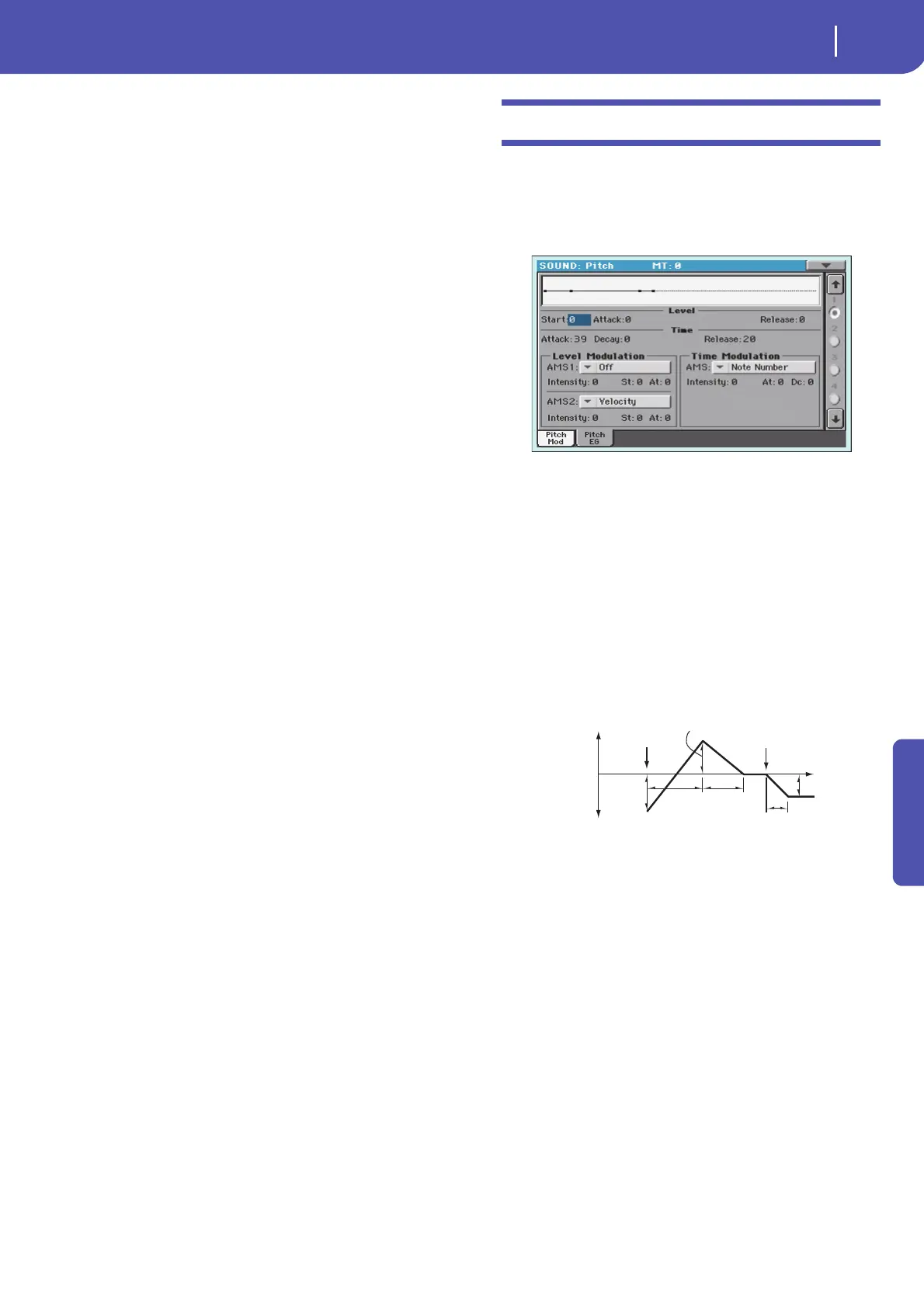

Diagram
The diagram on top of the page shows the Pitch envelope line.
Level
These parameters specify the amount of pitch change. The actual
amount of pitch change will depend on the “Intensity (AMS1/2
Intensity)” parameter (see below). For example, with an “Inten-
sity” setting of +12.00, a “Level” setting of +99 would raise the
pitch one octave, and a “Level” setting of –99 would lower the
pitch one octave.
Start Level
Specifies the amount of pitch change at note-on.
-99…+99 Parameter value.
Attack Level
Specifies the amount of pitch change when the attack time has
elapsed.
-99…+99 Parameter value.
Release Level
Specifies the amount of pitch change when the release time has
elapsed.
-99…+99 Parameter value.
Time
These parameters specify the time over which the pitch change
will occur.
See diagram above.
Note-on
Note-off
Attack
Time
Decay
Time
Start Level
Release Level
Release Time
Attack Level
+99 = approximately 1 octave
–99 = approximately 1 octave
0 = pitch when
key is held
(sustained)
Time
Time-varying pitch settings (when Pitch EG Intensity = +12.00)
