226
AMS1 (Alternate Modulation Source1)
Selects the source that will adjust the frequency of the selected
oscillator LFO1 (see “AMS (Alternate Modulation Source) list”
on page 229). LFO1 can be modulated by LFO2.
Intensity (AMS1 Intensity)
This parameter specifies the depth and direction of the effect
that “AMS1(F)” will have. When this parameter is set to a value
of 16, 33, 49, 66, 82, or 99, the LFO frequency being can be
increased by a maximum of 2, 4, 8, 16, 32, or 64 times respec-
tively (or decreased by 1/2, 1/4, 1/8, 1/16, 1/32, or 1/64 respec-
tively).
For example, if “AMS1(F)” is Note Number, positive (+) values
of this parameter will cause the oscillator LFO to speed up as you
play higher notes. Negative (–) values will cause the oscillator
LFO to slow down as you play higher notes. This change will be
centered on the C4 note.
If “AMS1(F)” is set to JS +Y, raising the value of this parameter
will cause the oscillator LFO1 speed to increase as the joystick is
moved away from yourself. With a setting of +99, moving the
joystick all the way away from yourself will increase the LFO
speed by approximately 64 times.
-99…+99 Intensity value.
AMS2 (Alternate Modulation Source2)
Intensity (AMS2 Intensity)
Make settings for a second alternate modulation source that will
adjust the frequency of the oscillator LFO1 (see above “AMS1 (Alter-
nate Modulation Source1)” and “Intensity (AMS1 Intensity)”).
Frequency MIDI/Tempo Sync
MIDI/Tempo Sync
This parameter enables/disables the LFO synchronization with
Sequencer 1 Tempo.
On The LFO frequency will synchronize to the
tempo (MIDI Clock) of Sequencer 1. In this case,
the values you specified for “Frequency” (see
page 225) and “Frequency Modulation” (see
page 225) will be ignored.
Base Note
When “MIDI/Tempo Sync” is On, these parameters set a note
length relative to “q (Tempo)” and the multiple (“Times”) that
will be applied to it. These parameters will determine the fre-
quency of the LFO1. For example if “Base Note” is q (quarter
note) and “Times” is 04, the LFO will perform one cycle every
four beats.
Even if you change the “q (Tempo)” setting of Sequencer 1, the
LFO will always perform one cycle every four beats.
This parameter is not available when editing a Drum Kit.
Note Note value.
Times
This parameter is not available when editing a Drum Kit.
1...16 Beats before restarting the cycle.
LFO: LFO2
Here you can make settings for the LFO2, which is the second
LFO that can be applied to the selected oscillator. See “LFO:
LFO1” for more information on the parameters value.
However in “Frequency Modulation”, the LFO cannot be
selected as a modulation source in “AMS1” or “AMS2.”

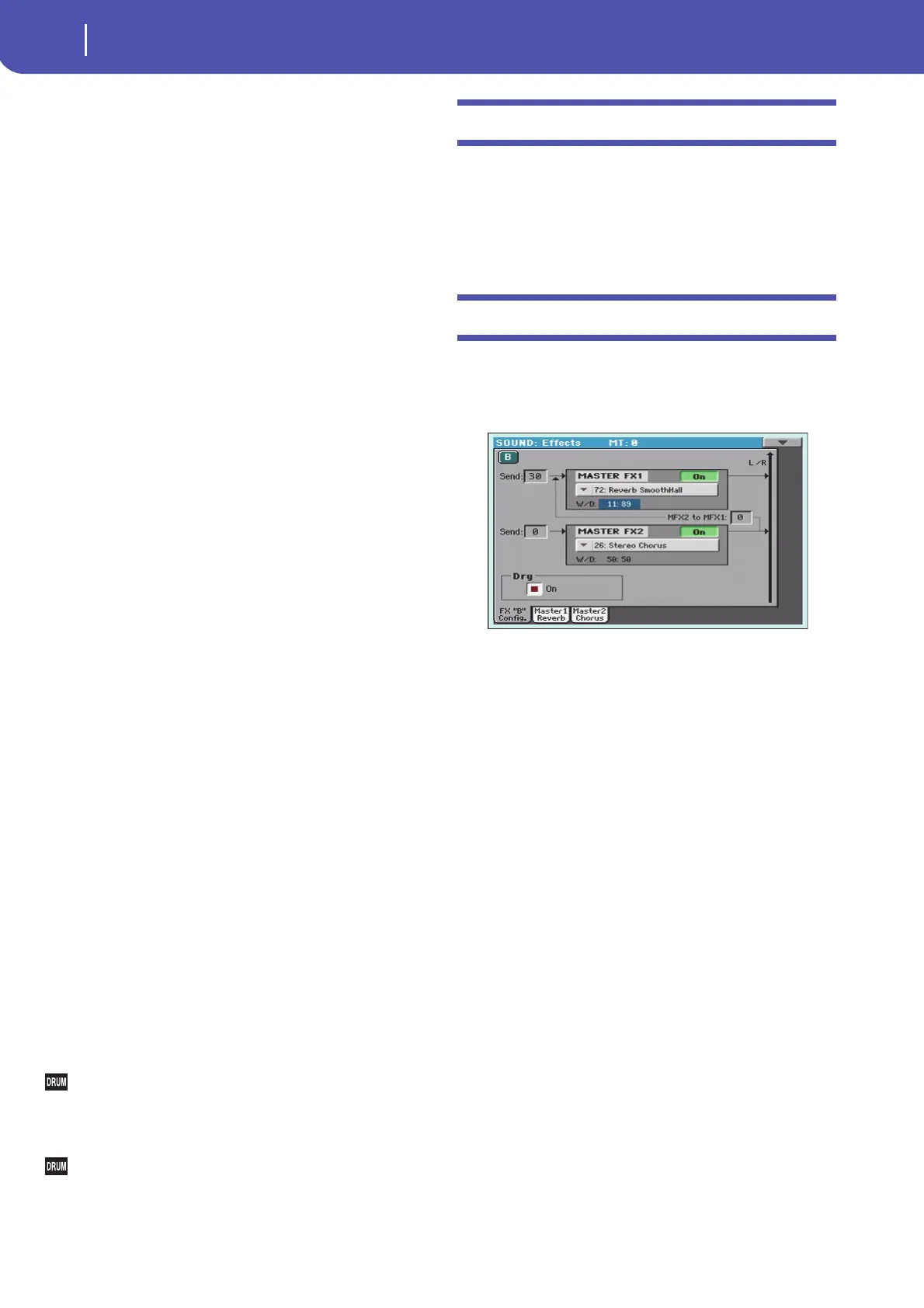

Effects: “B” FX Config
This page allows you to select the effects for the Sound (B
Group). The effect types and the FX matrix are the same seen for
the Style Play mode (see “Effects: A/B FX Configuration” on
page 119 of the User’s Manual).
FX Name
Use this pop-up menu to choose one of the available effects. For
a list of the available effects, see “Effects” on page 351.
FX parameters
All other parameters in this page are the same seen for the Style
Play mode (see “Effects: A/B FX Configuration” on page 119 in
the User’s Manual).
Send to Master
Use these parameters to set the level of the Sound signal going
from the Insert FX to the Master FXs.
0…127 Level of the sent signal.
Dry
Use this checkbox to mix the dry, direct Sound signal to the effects.
To Next Page
