251
Installing the Video Interface (VIF4)
Installation
Appendix

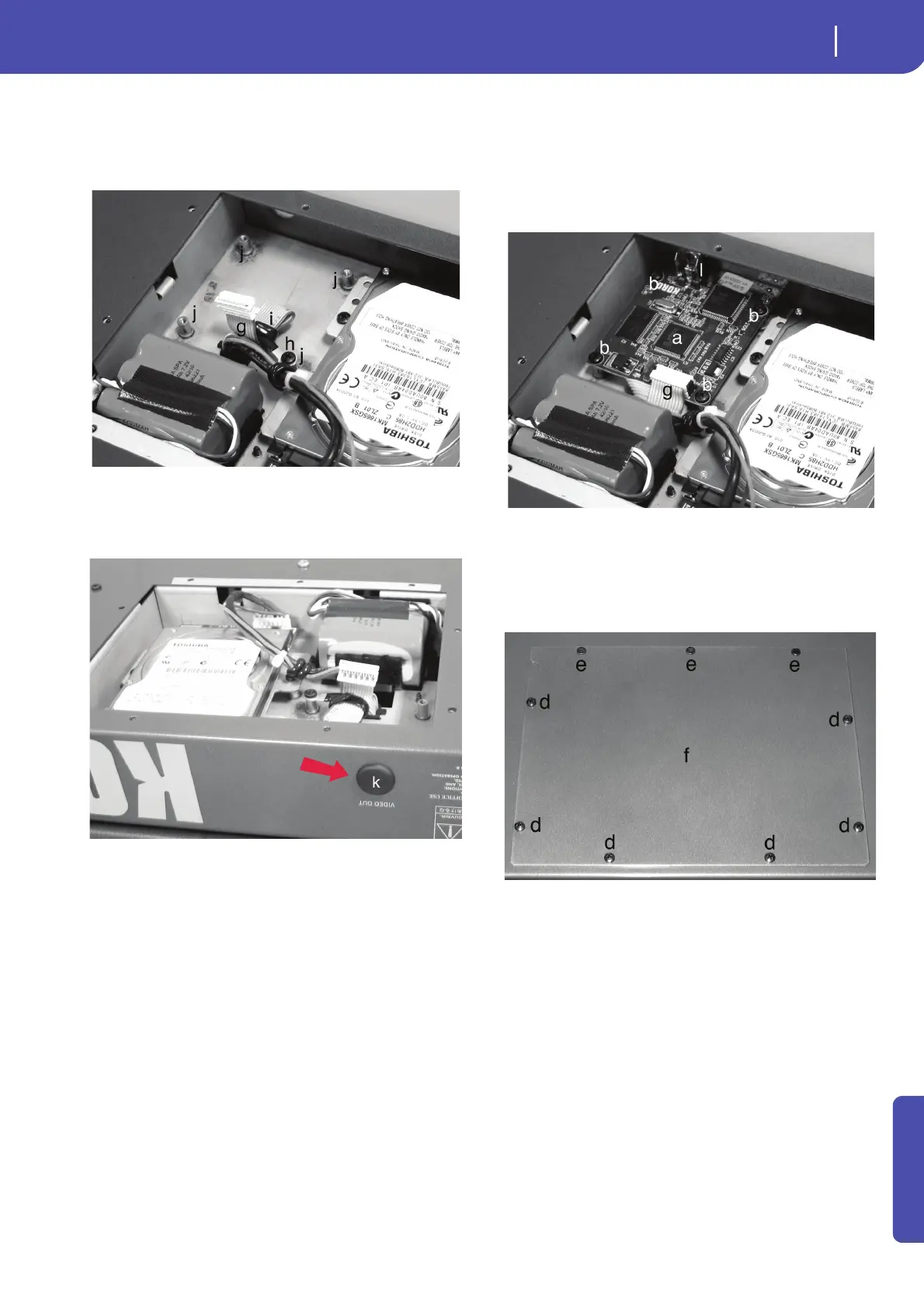

3. After having opened the cover, unfasten the power cable (g)
by removing the screw (h) and the clip (i). Be very careful
not to let the power cable (g) fall inside the instrument.
Inside the compartment, you will see the four spacers (j)
where to place the video board.
4. Remove the protective stopper (k) by pushing it from
inside the slot.
5. Place the video board (a) over the four spacers inside the
instrument, and make the video connector (l) protrude
from the back of the instrument by making it pass through
the corresponding hole. Attach the video card (a) to the
four spacers by using the four previously removed screws
(b). Connect the power cable (g) to the circuit board, as
shown in the illustration.
6. Replace the cover (f) to the original position. Attach the
cover to the bottom of the instrument by using the six fix-
ing screws (d) and the three flat head fixing screws (e) you
had previously removed.
