Installing an Hard Disk (HDIK-2) (only 61-key model)
Precautions
Appendix
The HDIK-2 kit allows you to install a standard 2.5” S-ATA hard
disk drive in your Pa3X (61-key version). The hard disk drive is
not supplied with the kit, so you should purchase it separately.
Wa rn i ng: Korg is not responsible for any damage or injury
caused by incorrect installation of this kit.
Before beginning with the installation, be sure to have all the
parts listed in the following table. You also need a cross-point
screwdriver (not supplied).
Precautions
• Installation of the kit is done at the user’s own risk. Korg
will assume no responsibility for any damage or injury result-
ing from its improper installation or use.
• Be sure to disconnect the instrument from the AC plug,
before opening it.
• To prevent your body’s static electricity from damaging the
board’s components, touch an unpainted metallic component
before proceeding with the installation.
Backup
Before installing or replacing the hard disk, please bakup or
save your User data to an USB storage device. If you do not
know how to do, please read the relevant instructions con-
tained in the “Media” chapter.
Installation
1. Extract the hard disk kit from its package, being careful not
to touch any component on its surface with your fingers.

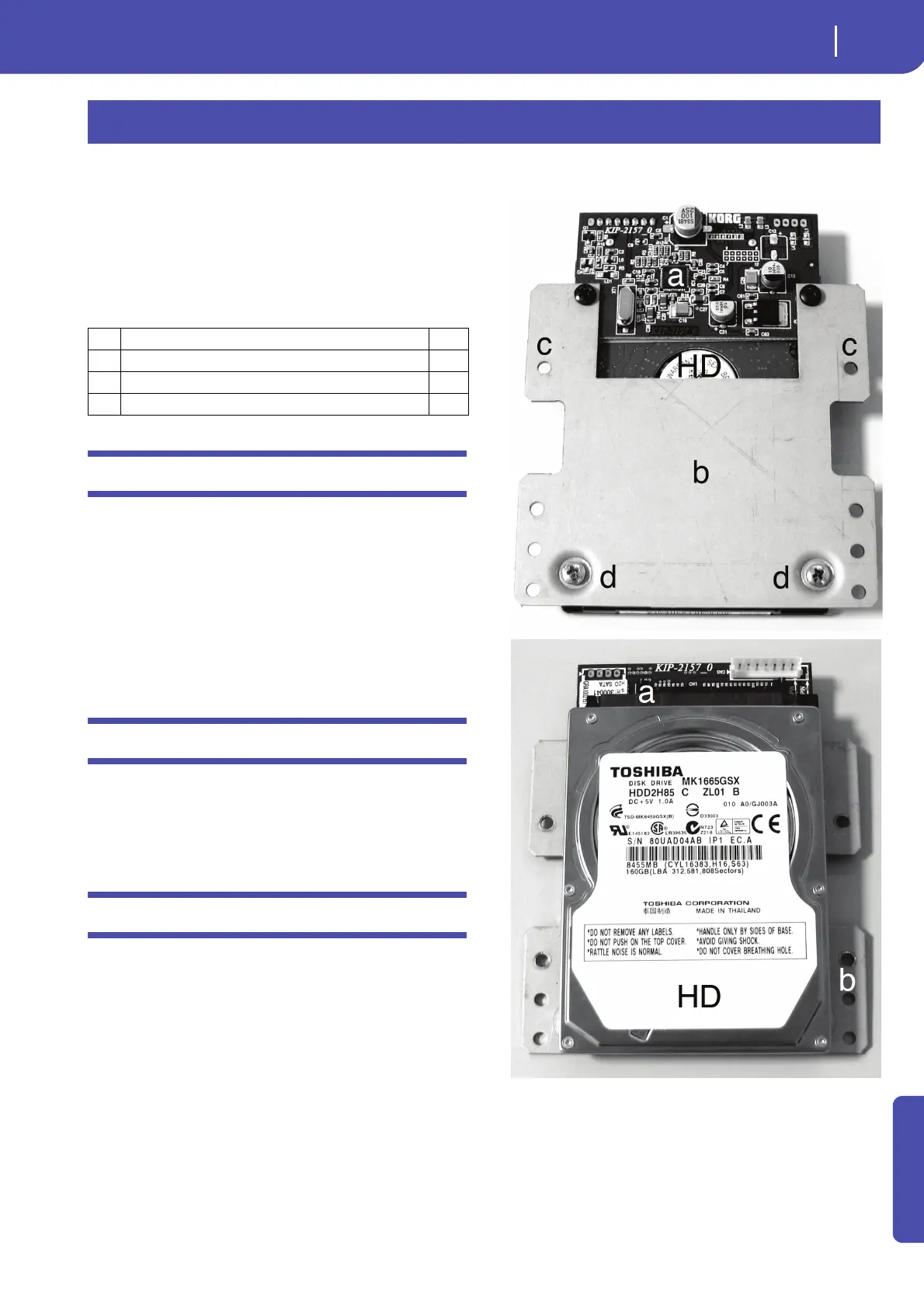

2. Use two screws (c) each to attach the hard disk (not supplied
with the kit) to the interface board (a) and the metal support
(b), as shown in the illustration. Use the two screws (d) to
secure the hard disk to the support (b).
Installing an Hard Disk (HDIK-2)
(only 61-key model)
a
HDD interface × 1
b
HDD support × 1
c
M3x6 TC screws × 6
m
M3x4 TC screws × 2
To Next Page
