Installing the Video Interface (VIF4)
NTSC, PAL, SECAM
You can install a Korg VIF4 Video Interface into your Pa3X. This
interface will let you connect a video monitor, TV set, video
recorder or video projector, to read lyrics on an external device.
The card can be installed by the user. Korg is not responsible
for any damage or injury caused by incorrect installation of
this card.
NTSC, PAL, SECAM
The VIF4 is compatible with the NTSC, PAL and SECAM TV
standard. When connecting a SECAM-compliant TV set, select
the PAL standard. However, in this latter case, the image will be
shown in black and white.
Precautions
• Installation of the card is done at the user’s own risk. Korg will
assume no responsibility for any damage or injury resulting from
its improper installation or use.
• Be sure to disconnect the instrument from the AC plug, before
opening it.
• To prevent your body’s static electricity from damaging the
board’s components, touch an unpainted metallic component
before proceeding with the installation.
Installation
For installation, you will need a cross-point screwdriver (not sup-
plied).

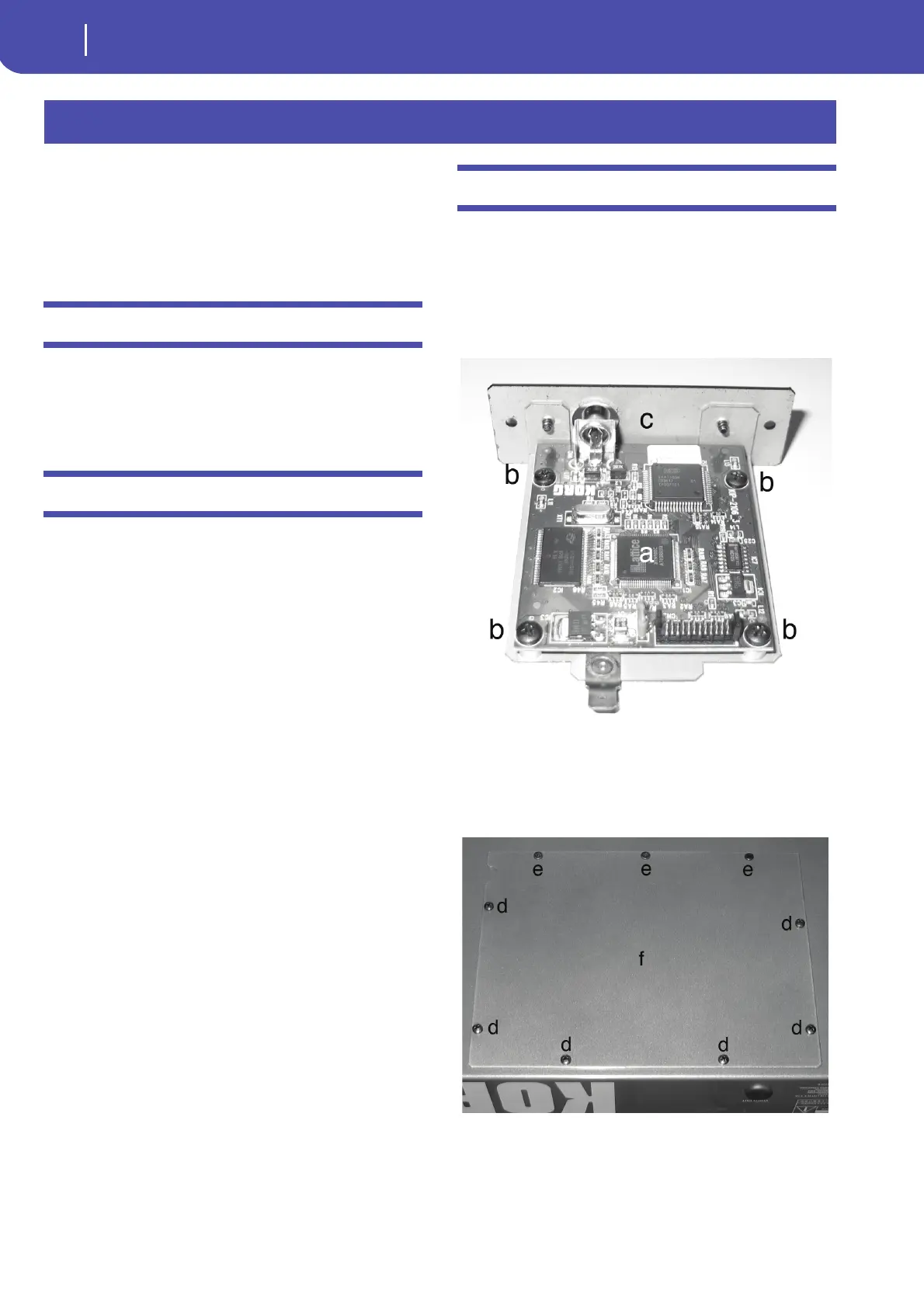

1. Extract the video card (a) from its package, being careful
not to touch any component on its surface with your fin-
gers. Remove the four screws (b) and keep them apart.
Unfasten the board (a) from the metal support (c).
2. From the bottom of the instrument, remove the six fixing
screws (d) and the three flat head fixing screws (e), and
keep them apart. Open the cover (f) to gain access to the
inside of the video board slot, and keep the cover apart.
Installing the Video Interface (VIF4)
