X - 11
Mowers
Required Oil typ Biological lubricants
quantity [litres] Brand name
Main gearbox side mower 2 x 2,1 l SAE 90
Angular drive / Front mower 0,6 l SAE 90
Input gearbox / Front mower 0,7 l SAE 90
2-speed gearbox / Front mower 1,9 l SAE 90
Mowing beam / Front mower 7 l SAE90
Mowing beam / side mower 2 x 8 l SAE 90

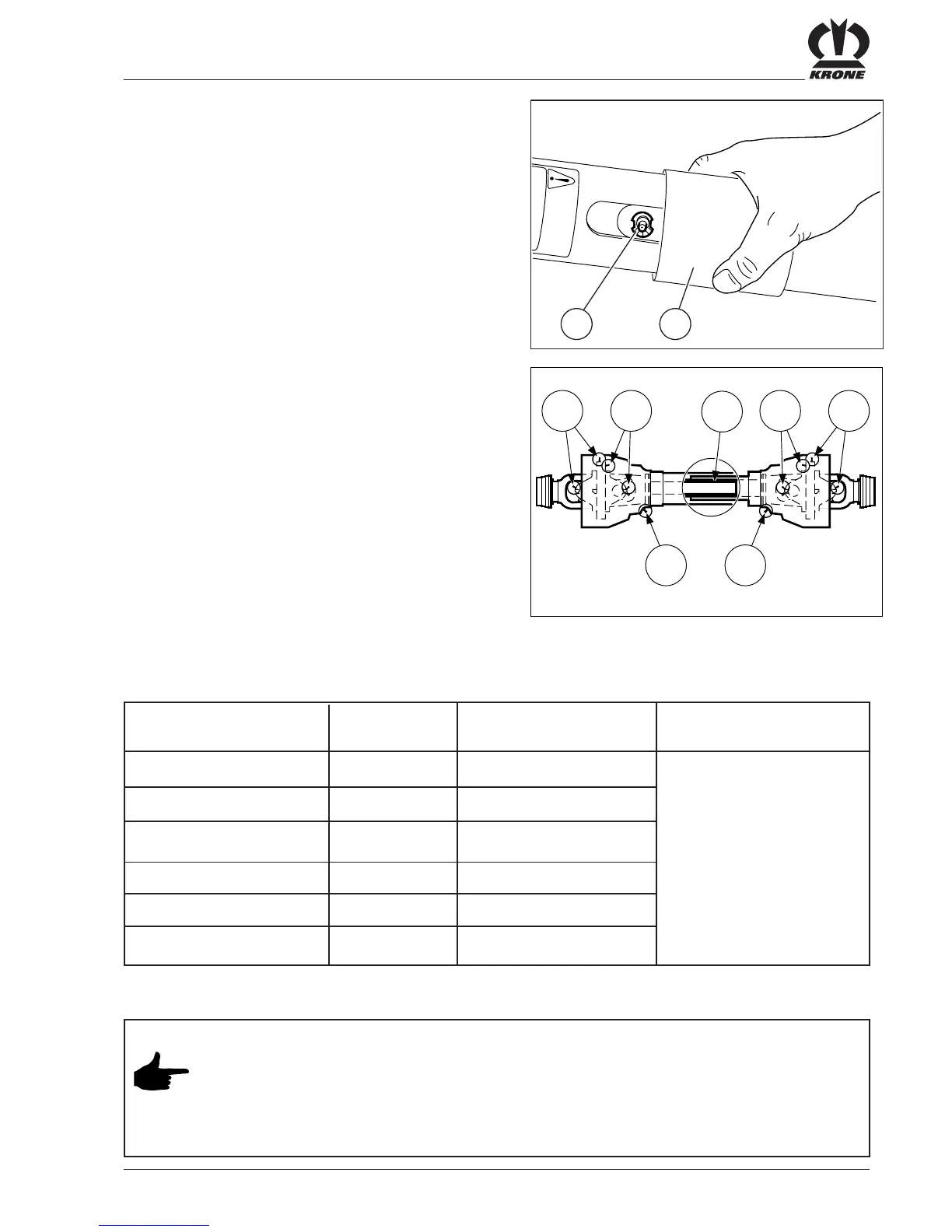

10.3.3 Greasing the Universal Joint Shaft
Lubricate the special section tubes on the intermediate
universal shafts every 20 operating hours.
Push the guard (2) back by hand and turn the
protecting tubes against each other until the
lubrication nipple (1) becomes visible.
All other lubrication nipples on the universal joint shafts
must be lubricated according to the adjacent illustration.
SFM-A-05
D
A
N
G
E
R
2
1
SFM-A-0
40h
8h 8h
20h
40h
8h8h
10.3.4 Required Quantities and Lubricant Designations for Gearboxes
10.3.5 Oil level check and oil change intervals (gearboxes)
Change the oil of all gearboxes every
100 operating hours, but at least once
a year.
Check the oil level before every
operation.
For biological lubricants, the oil change
intervals must be strictly adhered to due
to ageing of the oils.
on request
To Next Page
