COMMON RAIL SYSTEM
07-CR-E5,07-CR-TE5,07-CR-TIE5, DM
1-M2
[2] FUEL SYSTEM
NOTE

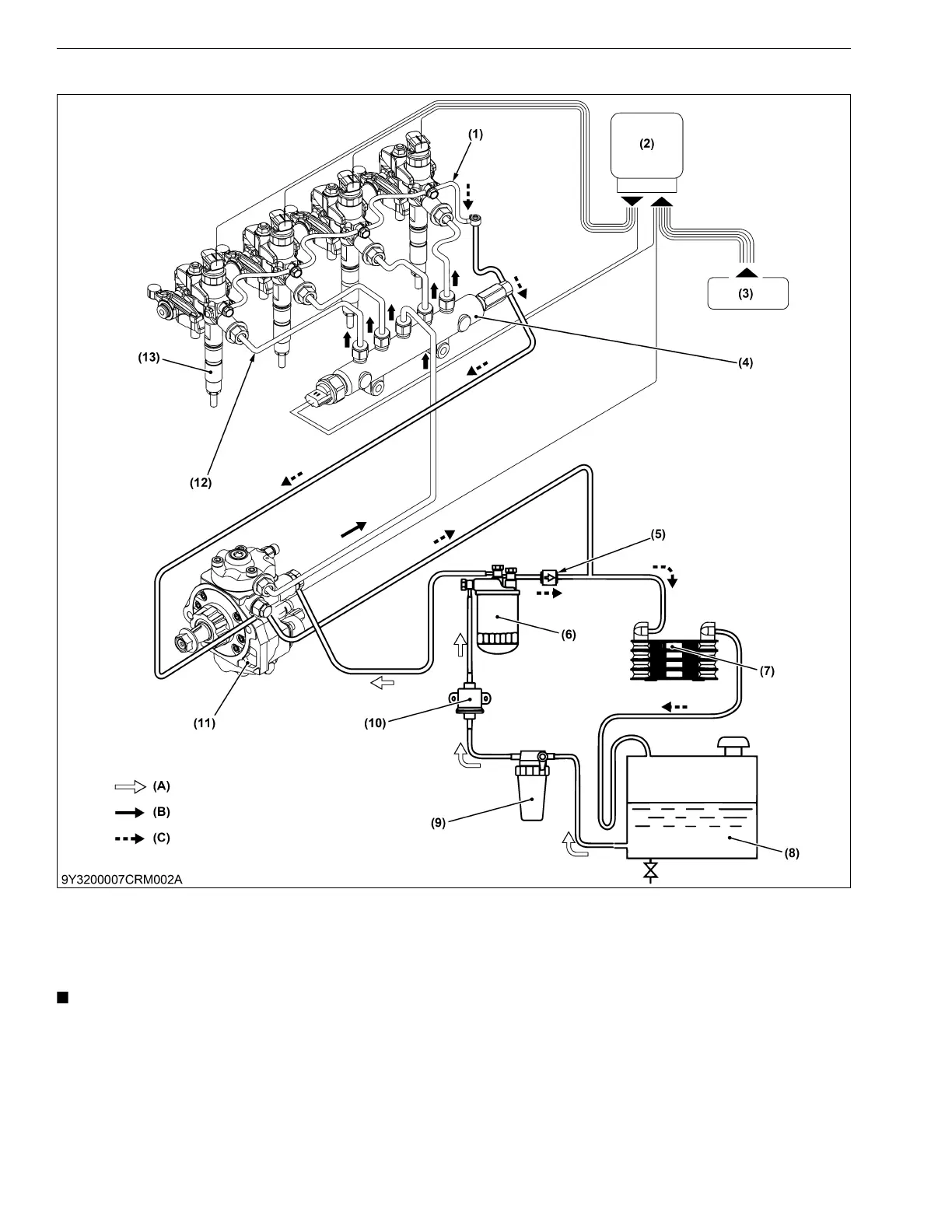

• The common rail system is made up of a supply pump, injector, and rails.
9Y3200007CRM0002US0
(1) Overflow Pipe
(2) Engine ECU
(3) Various Sensors
(4) Rail
(5) Check Valve
(6) Fuel Filter
(7) Fuel Cooler
(8) Fuel Tank
(9) Water Separator
(10) Electromagnetic Fuel Feed
Pump
(11) Supply Pump
(12) Injection Pipe
(13) Injector
(A) Low Pressure Fuel Flow
(B) High Pressure Fuel Flow
(C) Return Fuel Flow
KiSC issued 03, 2022 A
