Kubota 07-CR-E5 - Oil Pressure Error (P0524; 100-1)

COMMON RAIL SYSTEM
07-CR-E5,07-CR-TE5,07-CR-TIE5, DM
1-S207
(24) Oil Pressure Error (P0524 / 100-1)
Behaviour during malfunction:
• Engine stops
Detection item:
• Oil pressure switch
DTC set preconditions:
• Battery voltage is normal
• Key switch turn ON
• Starter Switch signal (Engine ECU: V12 terminal) is not activated
• 10 sec. or more after engine start [700 min
-1
(rpm) or higher]
DTC set parameter:
• Oil pressure switch ON: continues 1 sec. or more
Engine warning light:
•ON
Limp home action by engine ECU (system action):
•None
Recovery from error:
• Key switch turn OFF
9Y3200007CRS0299US0
1. DTC Judgment
1. Place the key switch in the OFF position, and attach the
diagnosis tool to the CAN1 connector.
2. Place the key switch in the ON position, check whether the DTC
(P0524) is output or not.
9Y3200007CRS0300US0

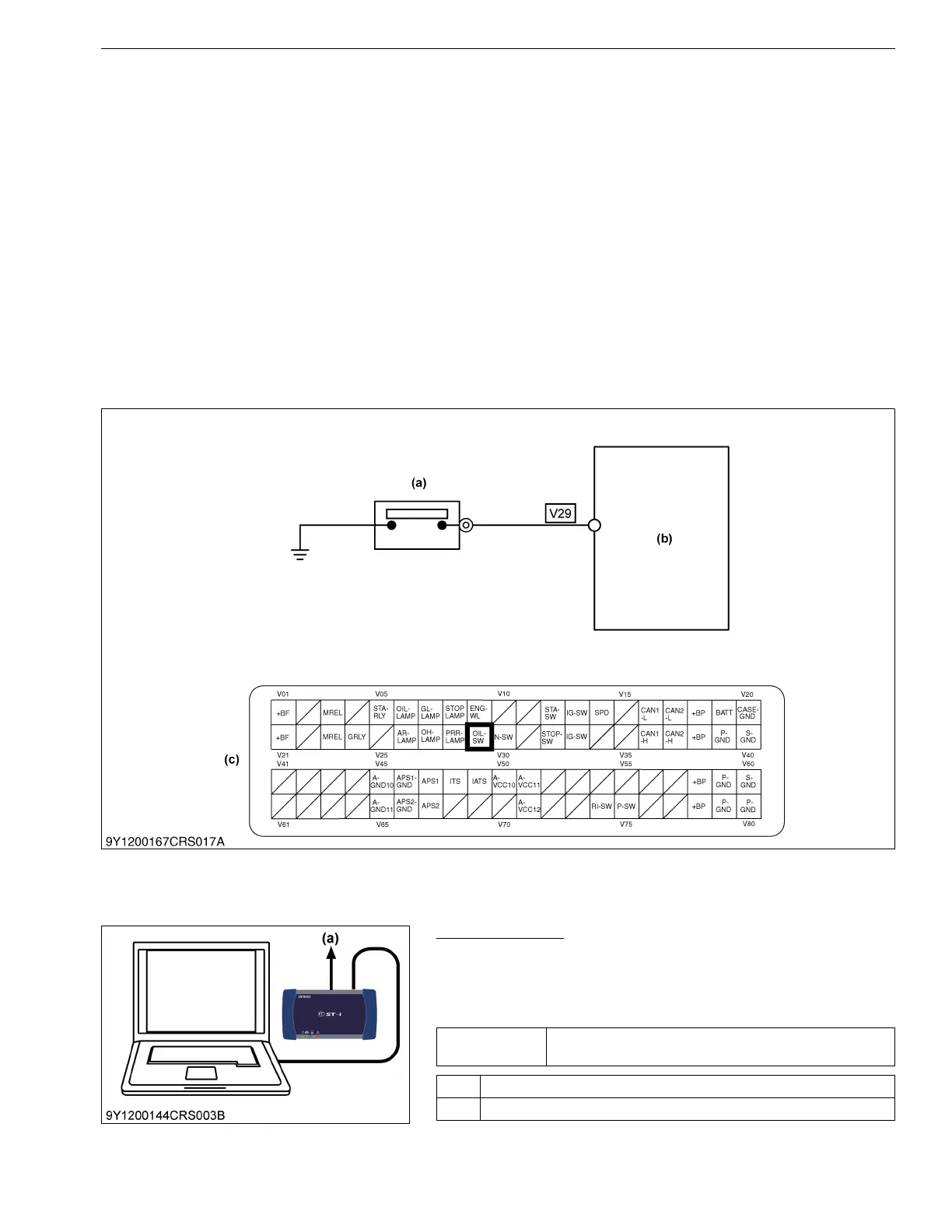

(a) Oil Pressure Switch (b) Engine ECU (c) Engine ECU Connector 2
(Machine Side)
Service
specification
DTC (P0524) must not be output.
OK Normal.
NG Go to "2. Check the Wiring Related to the Oil Pressure Switch".
(a) CAN1 Connector
KiSC issued 03, 2022 A
