Kubota 07-CR-E5 - INTAKE AND EXHAUST SYSTEM

COMMON RAIL SYSTEM
07-CR-E5,07-CR-TE5,07-CR-TIE5, DM
1-M3

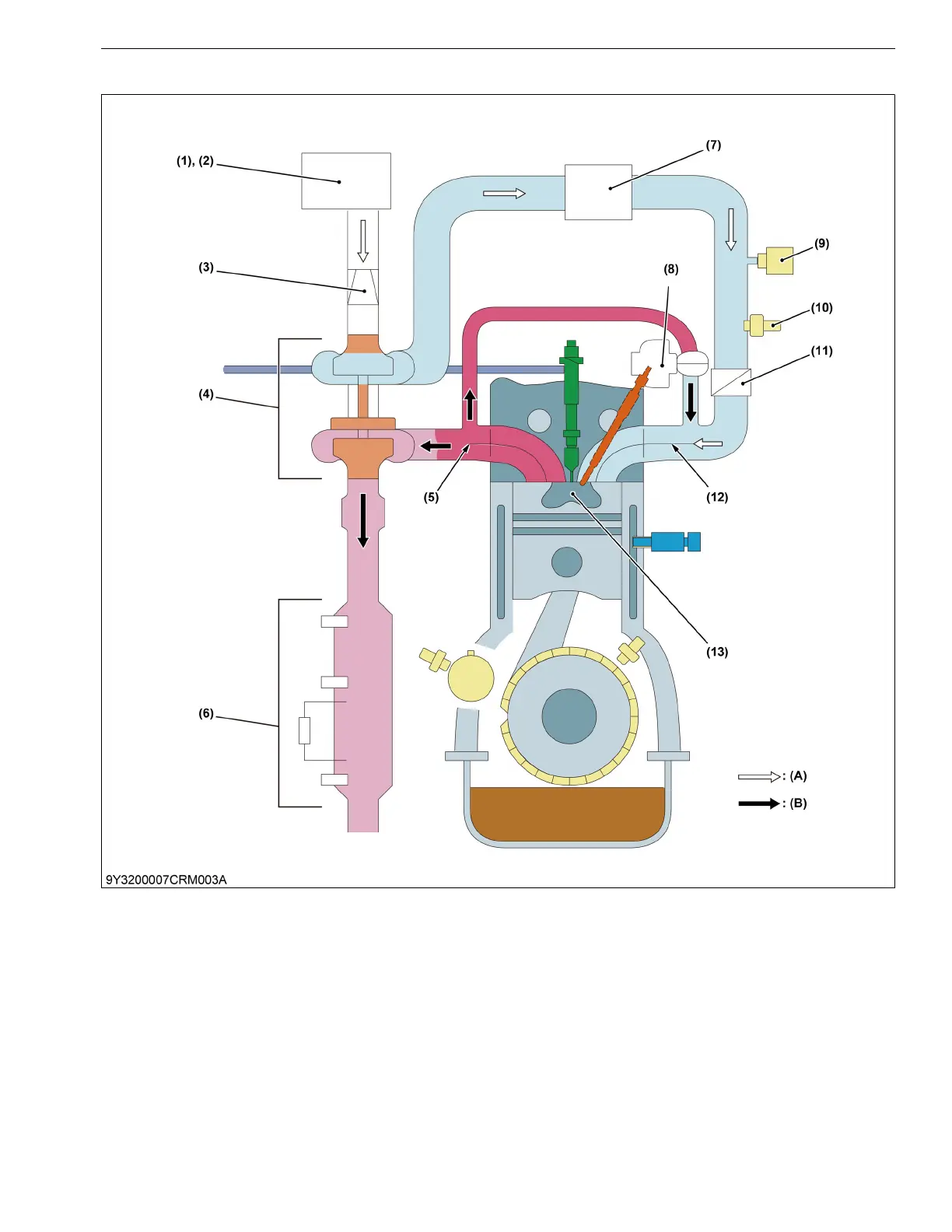

[3] INTAKE AND EXHAUST SYSTEM
9Y3200007CRM0003US0
(1) Pre-cleaner
(2) Air Cleaner
(3) Air Flow Sensor
(4) Turbocharger
(5) Exhaust Manifold
(6) Aftertreatment Unit (DPF)
(7) Intercooler
(8) EGR Valve
(9) Boost Pressure Sensor
(10) Intake Air Temperature
Sensor
(11) Intake Throttle Valve
(12) Intake Manifold
(13) Combustion Chamber
(A) Intake Air
(B) Exhaust Gas
KiSC issued 03, 2022 A
