Kubota 07-CR-E5 - Engine Overheat (DTC P0217; 110-0)

COMMON RAIL SYSTEM
07-CR-E5,07-CR-TE5,07-CR-TIE5, DM
1-S184
(17) Engine Overheat (DTC P0217 / 110-0)
Behaviour during malfunction:
• Insufficient output
• Overheat
Detection item:
• Overheat of engine coolant temperature
DTC set preconditions:
• Coolant temperature sensor is normal
DTC set parameter:
• Engine coolant temperature ≥ 120 °C (248 °F)
Engine warning light:
•ON
Limp home action by engine ECU (system action):
• Output limitation: Approximately 75 % of normal condition
•EGR stop
• Intake throttle 100 % open
Recovery from error:
• Diagnostic counter = zero or Key switch turn OFF
9Y3200007CRS0250US0
9Y3200007CRS0251US0

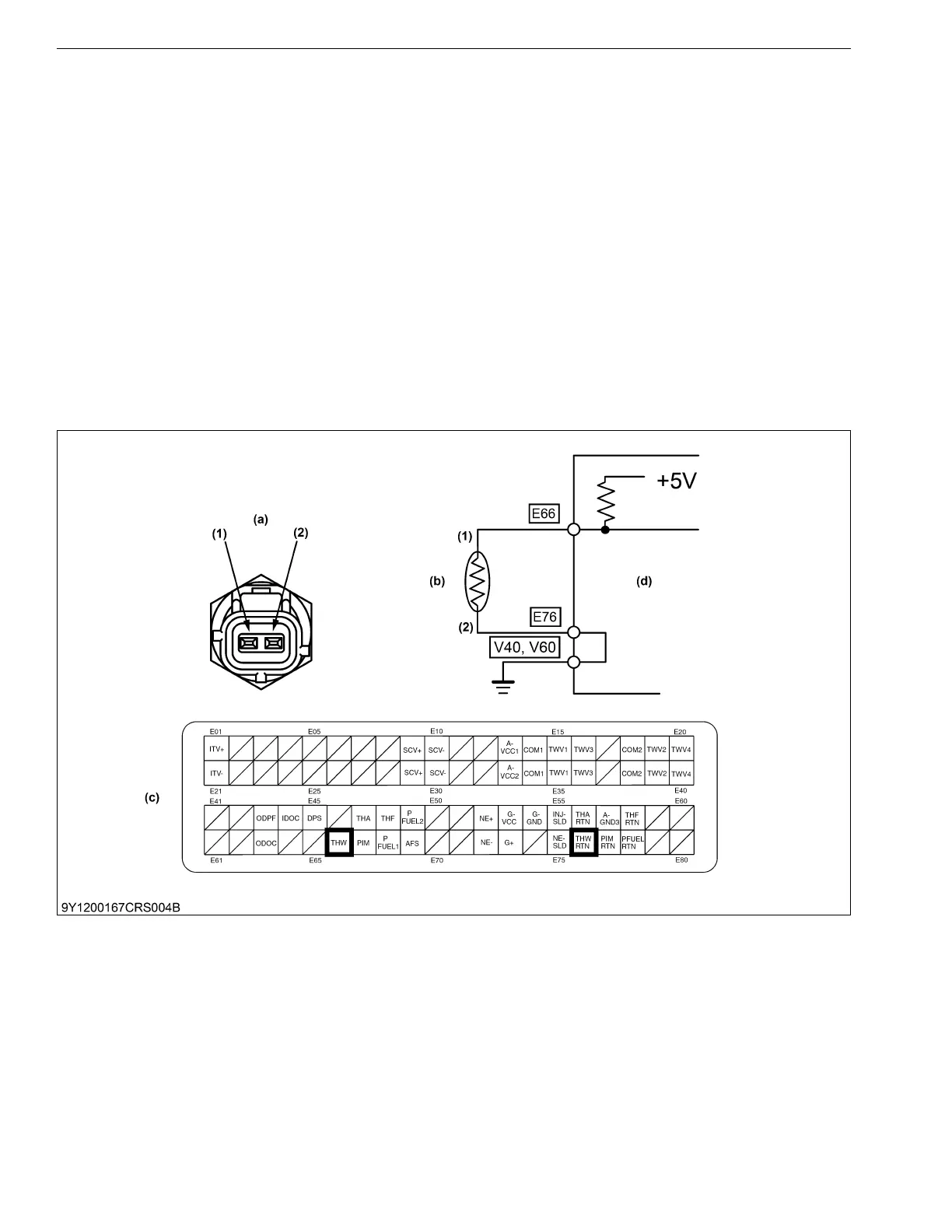

(1) Terminal THW (2) Terminal THW RTN (a) Pin Assignment
(b) Coolant Temperature
Sensor
(c) Engine ECU Connector 1
(Engine Side)
(d) Engine ECU
KiSC issued 03, 2022 A
