Kubota 07-CR-E5 User Manual

COMMON RAIL SYSTEM
07-CR-E5,07-CR-TE5,07-CR-TIE5, DM
1-M7

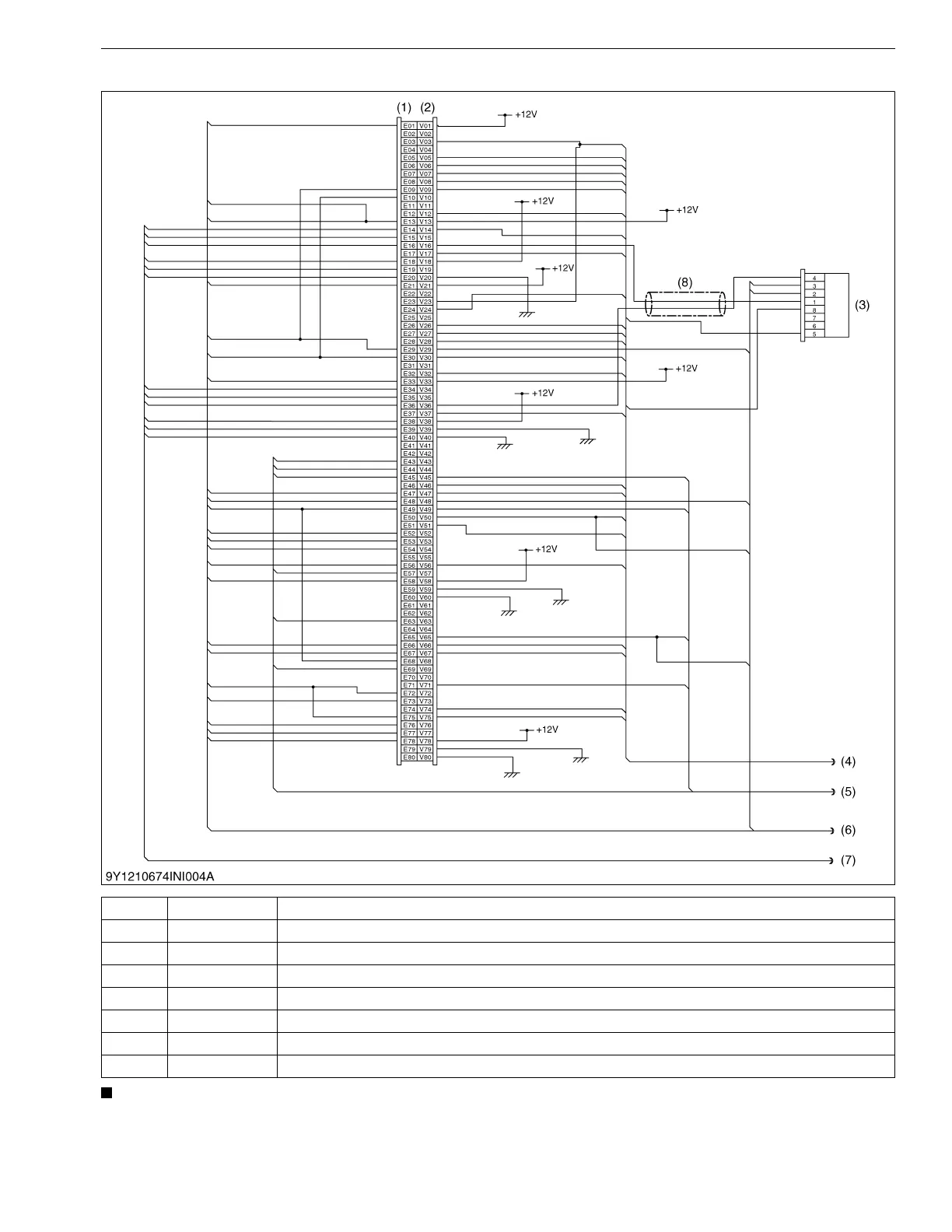

(3) Engine ECU Intermediate Harness (OEM Side Harness)
NOTE
• The picture shows the pin arrangement of the connector housing viewed from wire side, not mating side.
9Y3200007CRM0007US0
(1) CN501 Engine ECU (1)
(2) CN502 Engine ECU (2)
(3) CN503 Engine ECU Joint Connector 1
(4) − Power Unit
(5) − DPF
(6) − Engine
(7) − Injector
(8) − Shield Cable
