Kubota 07-CR-E5 - Injector Intermediate Harness (Engine Side Harness)

COMMON RAIL SYSTEM
07-CR-E5,07-CR-TE5,07-CR-TIE5, DM
1-M6
(2) Injector Intermediate Harness (Engine Side Harness)
NOTE
• The picture shows the pin arrangement of the connector housing viewed from wire side, not mating side.
9Y3200007CRM0006US0

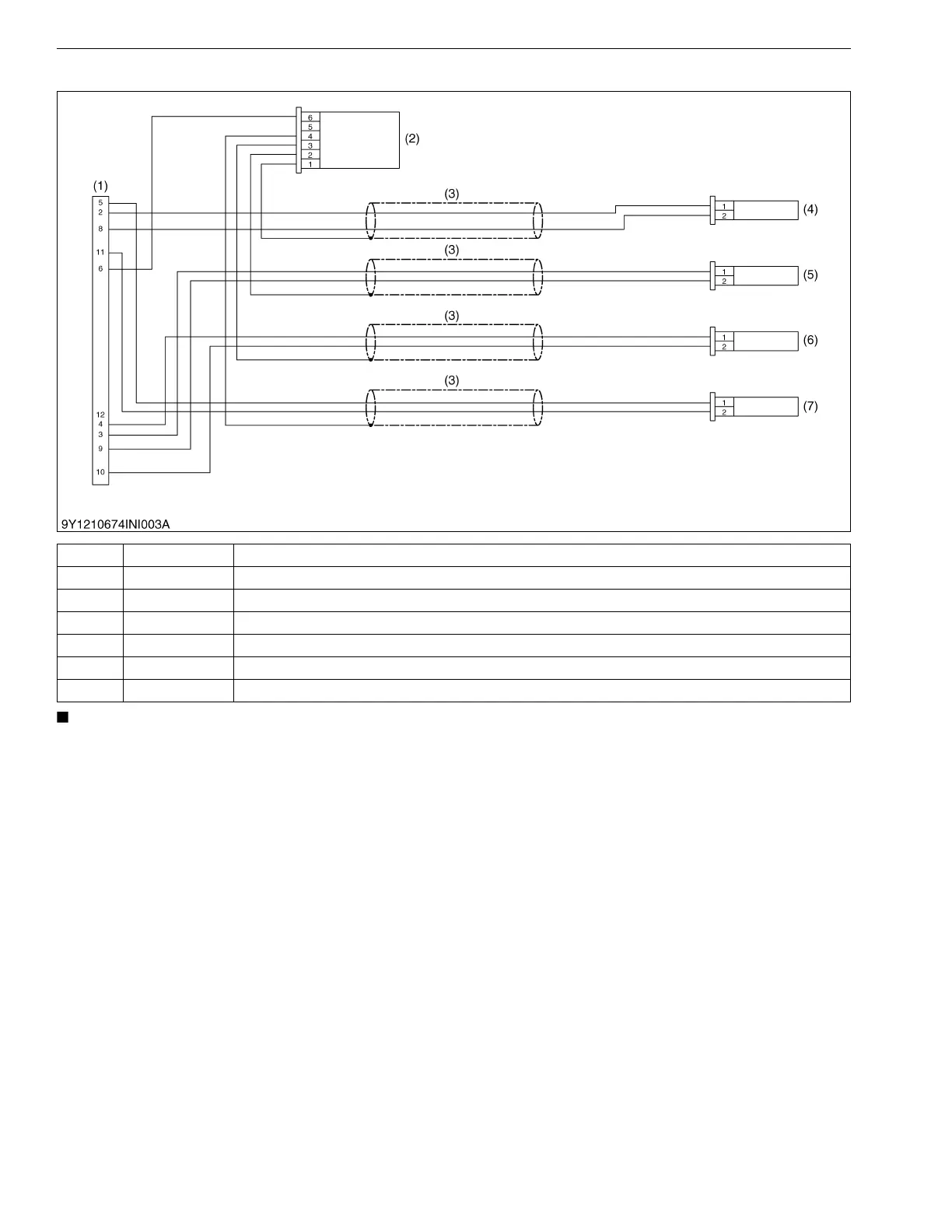

(1) CN306 Injector Intermediate Connector
(2) CN305 Injector Joint Connector 1
(3) − Shield Cable
(4) CN301 Injector #1
(5) CN302 Injector #2
(6) CN303 Injector #3
(7) CN304 Injector #4
