Kubota 07-CR-E5 - ENGINE ECU PIN ASSIGNMENT

COMMON RAIL SYSTEM
07-CR-E5,07-CR-TE5,07-CR-TIE5, DM
1-M19

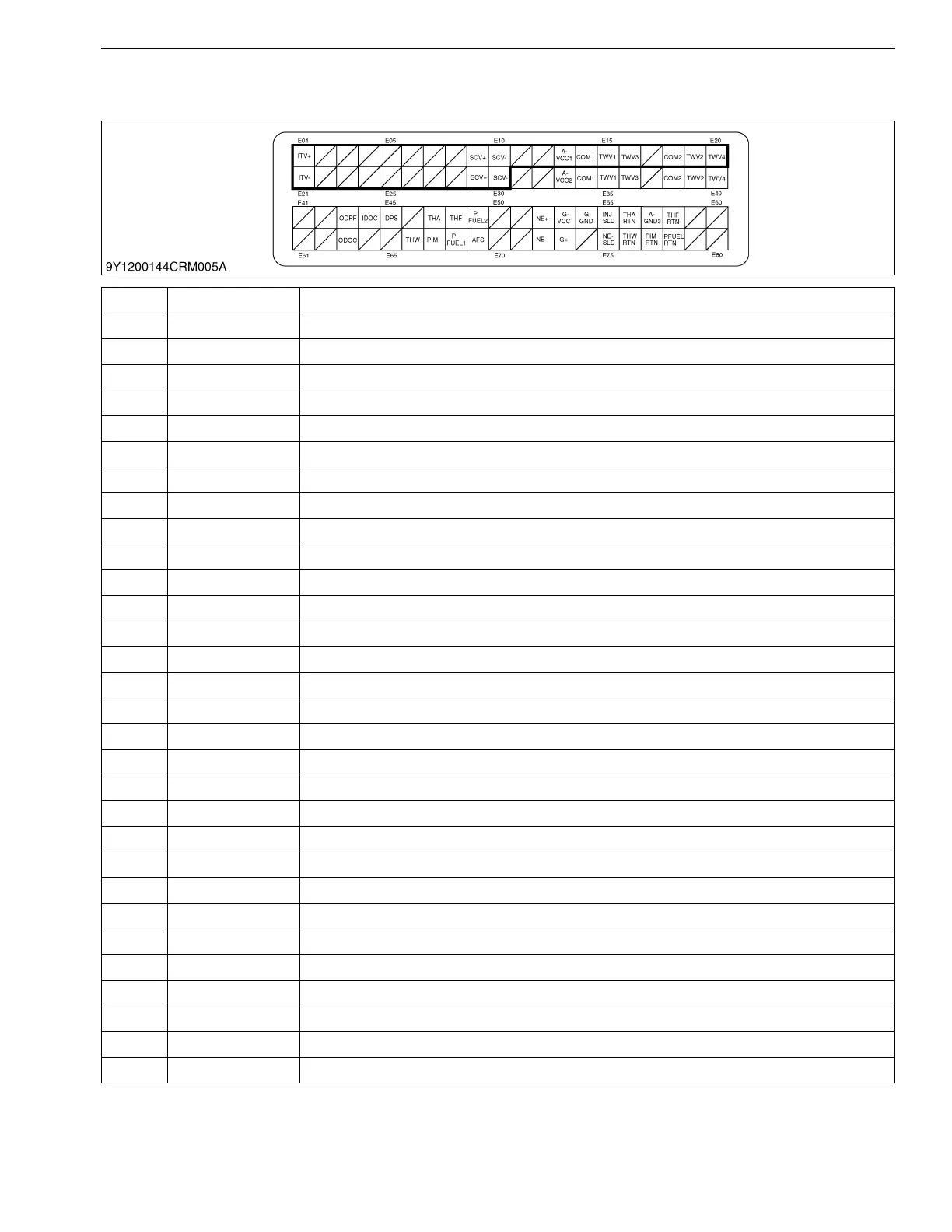

[6] ENGINE ECU PIN ASSIGNMENT
(1) Engine ECU Pin Assignment 1 (Engine Side)
No. Terminal Name Signal Name
E01 ITV+ INTAKE THROTTLE VALVE MOTOR (+)
E02 – –
E03 – –
E04 – –
E05 – –
E06 – –
E07 – –
E08 – –
E09 SCV+ SCV (SUCTION CONTROL VALVE) (+)
E10 SCV− SCV (SUCTION CONTROL VALVE) (−)
E11 – –
E12 – –
E13 A-VCC1 SENSOR (POWER SUPPLY)
E14 COM1 INJECTION COMMON 1
E15 TWV1 INJECTION DRIVE1 (No.1 CYLINDER)
E16 TWV3 INJECTION DRIVE3 (No.4 CYLINDER)
E17 – –
E18 COM2 INJECTION COMMON 2
E19 TWV2 INJECTION DRIVE2 (No.3 CYLINDER)
E20 TWV4 INJECTION DRIVE4 (No.2 CYLINDER)
E21 ITV− INTAKE THROTTLE VALVE MOTOR (−)
E22 – –
E23 – –
E24 – –
E25 – –
E26 – –
E27 – –
E28 – –
E29 SCV+ SCV (SUCTION CONTROL VALVE) (+)
E30 SCV− SCV (SUCTION CONTROL VALVE) (−)
KiSC issued 03, 2022 A
