COMMON RAIL SYSTEM
07-CR-E5,07-CR-TE5,07-CR-TIE5, DM
1-S246
(40) Intake Throttle Feedback Error (DTC P2108 / 523580-2)
Behaviour during malfunction:
• None
Detection item:
• Intake throttle feedback error
DTC set preconditions:
• Battery voltage is normal
DTC set parameter (Approximate parameter):
• Deviation of throttle position is not corrected in 20 times of duty error recovery action
Engine warning light:
•ON
Limp home action by engine ECU (system action):
• Output limitation: Approximately 75 % of normal condition
• Intake throttle 100 % open
Recovery from error:
• Key switch turn OFF
9Y3200007CRS0374US0
9Y3200007CRS0375US0

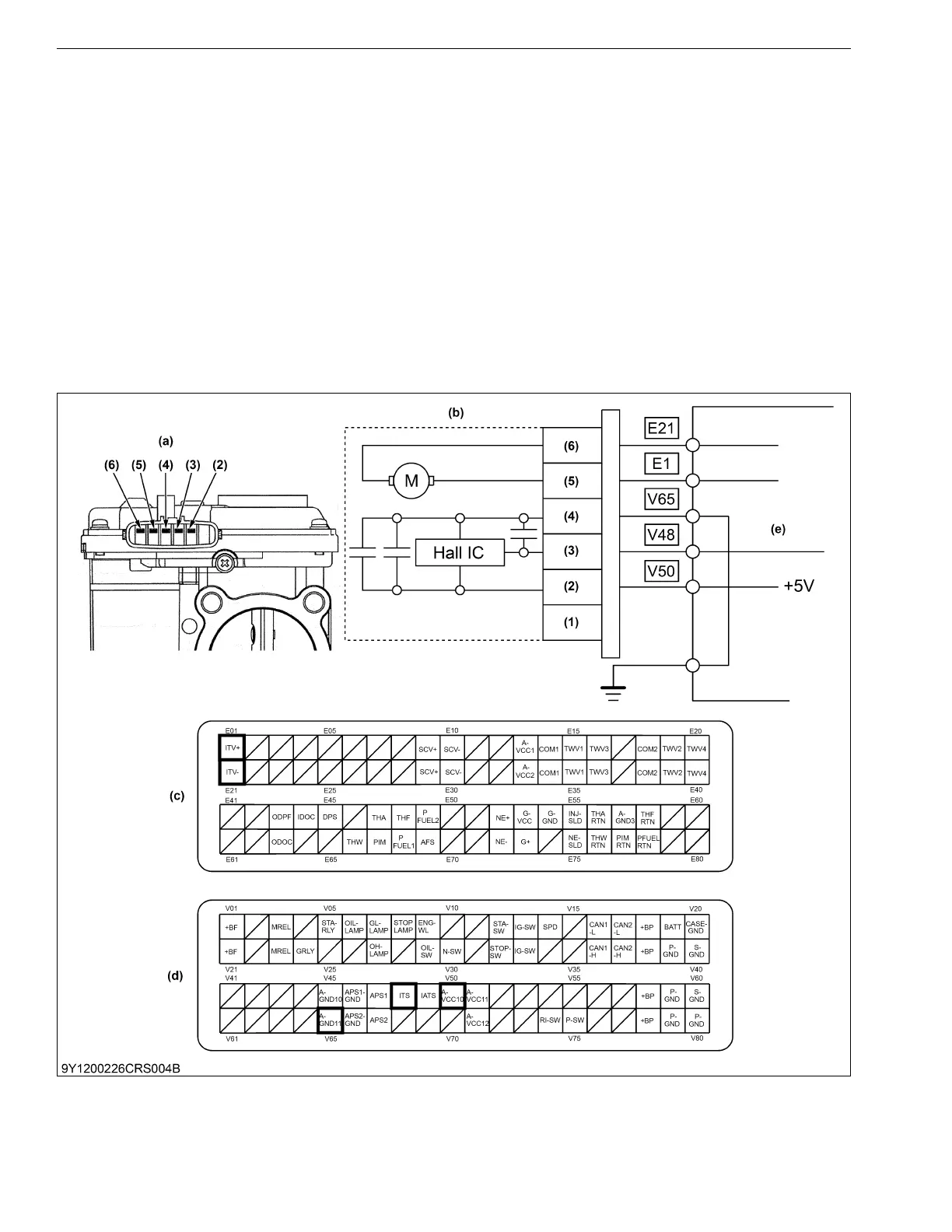

(1) No Connection
(2) Terminal A-VCC10 (+5 V)
(3) Terminal ITS (Output)
(4) Terminal A-GND11 (Ground)
(5) Terminal ITV+
(6) Terminal ITV–
(a) Pin Assignment
(b) Intake Throttle Valve
(c) Engine ECU Connector 1
(Engine Side)
(d) Engine ECU Connector 2
(Machine Side)
(e) Engine ECU
KiSC issued 03, 2022 A
