Kubota 07-CR-E5 - Engine ECU Pin Assignment 2 (Machine Side)

COMMON RAIL SYSTEM
07-CR-E5,07-CR-TE5,07-CR-TIE5, DM
1-M23

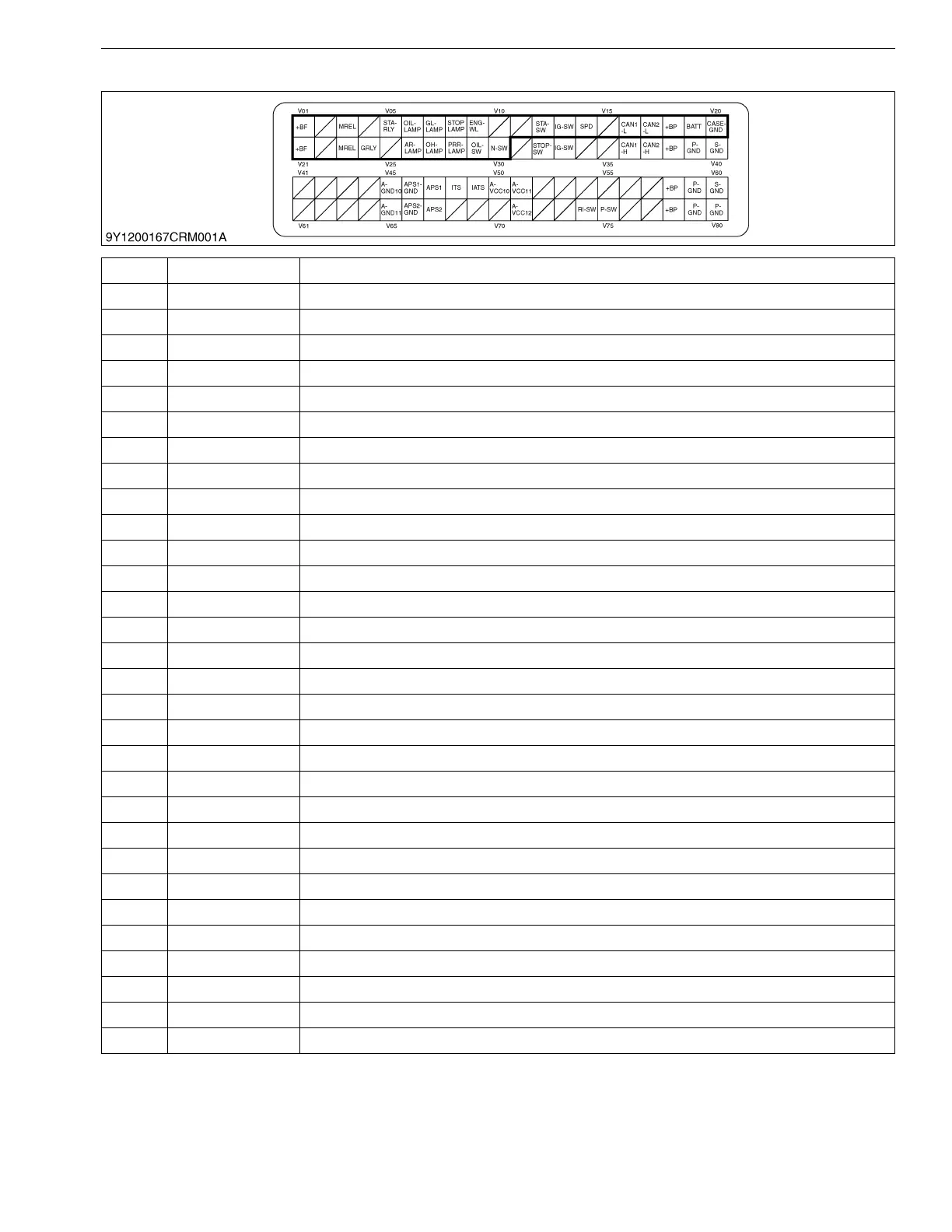

(2) Engine ECU Pin Assignment 2 (Machine Side)
No. Terminal Name Signal Name
V01 +BF BATTERY+ (MAIN RELAY)
V02 – –
V03 MREL MAIN RELAY
V04 – –
V05 STA-RLY STARTER RELAY
V06 OIL-LAMP OUTPUT FOR OIL PRESSURE DECREASE LAMP SIGNAL
V07 GL-LAMP OUTPUT FOR GLOW (AIR HEATER) LAMP SIGNAL
V08 STOP-LAMP OUTPUT FOR ENGINE STOP LAMP SIGNAL
V09 ENG-WL OUTPUT FOR ENGINE WARNING LIGHT SIGNAL
V10 – –
V11 – –
V12 STA-SW STARTER SWITCH
V13 IG-SW KEY SWITCH ON
V14 SPD MACHINE TRAVEL SPEED SIGNAL
V15 – –
V16 CAN1-L CAN1-L (FOR SERVICE)
V17 CAN2-L CAN2-L (FOR MACHINE)
V18 +BP BATTERY+ (MAIN RELAY)
V19 BATT BATTERY+
V20 CASE-GND CASE GROUND
V21 +BF BATTERY+ (MAIN RELAY)
V22 – –
V23 MREL MAIN RELAY
V24 GRLY GLOW (AIR HEATER) RELAY
V25 – –
V26 AR-LAMP ACTIVE REGENERATION LAMP
V27 OH-LAMP OUTOUT FOR OVERHEAT LAMP SIGNAL
V28 PRR-LAMP PARKED REGENERATION REQUEST LAMP
V29 OIL-SW OIL PRESSURE DECREASE SWITCH
V30 N-SW NEUTRAL SWITCH
KiSC issued 03, 2022 A
