Kubota 07-CR-E5 - Injector Charge Voltage Abnormality (DTC P0611; 523525-1)

COMMON RAIL SYSTEM
07-CR-E5,07-CR-TE5,07-CR-TIE5, DM
1-S221
(30) Injector Charge Voltage Abnormality (DTC P0611 / 523525-1)
NOTE
• This DTC is detected when the charge voltage in the injector actuation circuit is too low.
Behaviour during malfunction:
• Insufficinet output
• Worsening exhaust gas performance
• Engine stops in some case
Detection item:
• Injector charge voltage: Low
• Failure of charge circuit of engine ECU
DTC set preconditions:
• Battery voltage is normal
• CPU is normal
DTC set parameter:
• Injector charge voltage: Low
• Failure of charge circuit of engine ECU
Engine warning light:
•ON
Limp home action by engine ECU (system action):
• Output limitation: Approximately 75 % of normal condition
• EGR stop
• Intake throttle 100 % open
Recovery from error:
• Key switch turn OFF
9Y3200007CRS0332US0
9Y3200007CRS0333US0

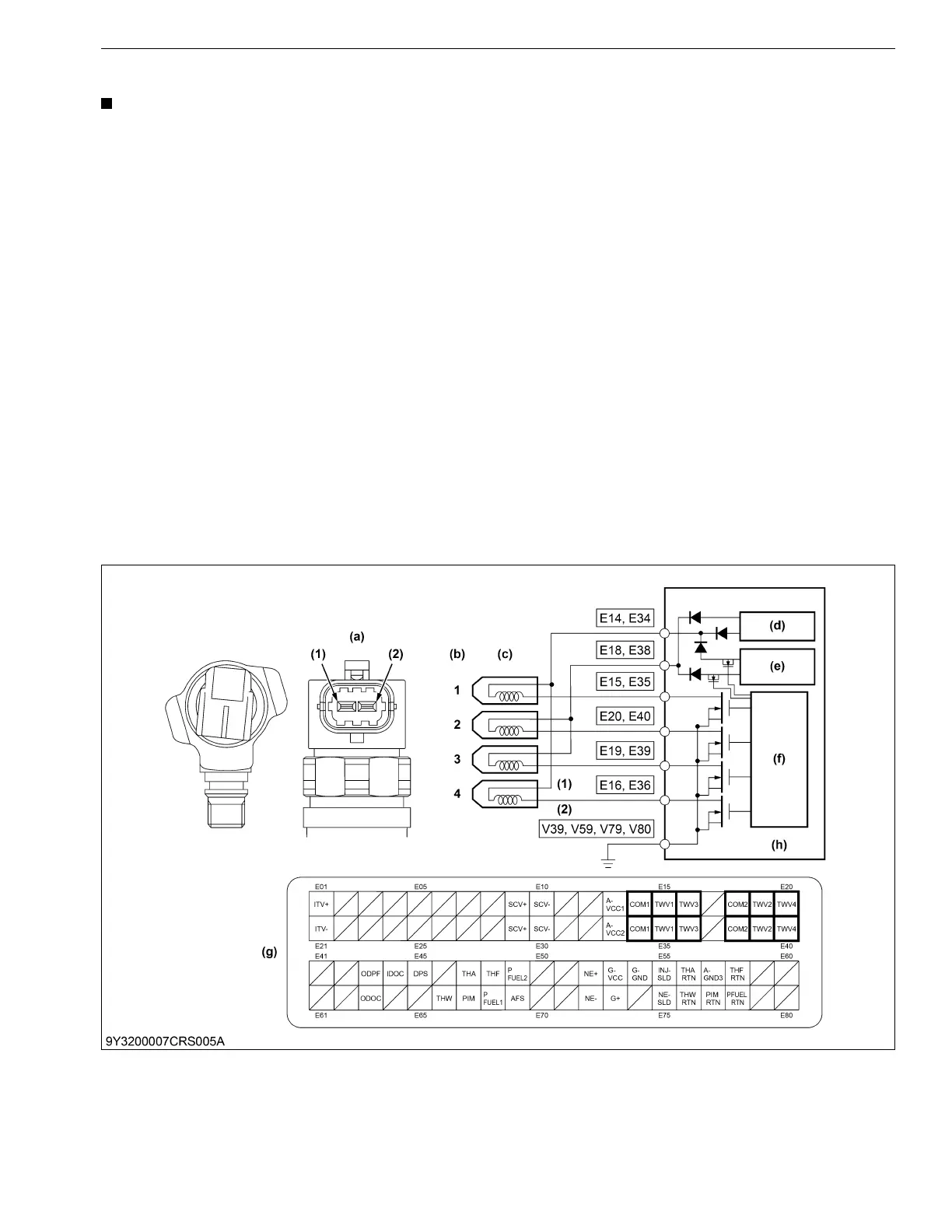

(1) Terminal COMMON
(2) Terminal TWV
(a) Pin Assignment
(b) Engine Cylinder No.
(c) Injector
(d) Constant Amperage Circuit
(e) High Voltage Generation
Circuit
(f) Control Circuit
(g) Engine ECU Connector 1
(Engine Side)
(h) Engine ECU
