COMMON RAIL SYSTEM
07-CR-E5,07-CR-TE5,07-CR-TIE5, DM
1-S158
4. Check the Rail Pressure Sensor (*Refer to Items P0192 and
P0193)
1. Check the rail pressure sensor.
NOTE
• Closely check sensor signals for a noise component and
an abnormality that exists for a short time.
9Y3200007CRS0193US0
5. Check the Pressure Limiter for a Fuel Leakage
1. Check the temperature of the pressure limiter return pipe by
touching it.
(Reference)
• If the fuel leaks from the pressure limiter, the high temperature
and high pressure fuel flows through the return pipe and the
pipe becomes very hot.
9Y3200007CRS0194US0
6. Check for a Fuel Leakage
1. Increase the rail pressure by operating the accelerator pedal or
accelerator lever, and check for a fuel leakage.
9Y3200007CRS0195US0
7. Check the DTC Again
1. Clear the past malfunction data, and make sure that the same
DTC is output again in the reproduction test.
NOTE
• Use all of the available information and try to reproduce the
problem by operating the accelerator pedal in different
ways and by changing the environmental conditions.
9Y3200007CRS0196US0
OK Go to "5. Check the Pressure Limiter for a Fuel Leakage".
NG Replace the rail assembly or its related parts. (Follow the diagnostic
procedure of items P0192 and P0193.) (Refer to page 1-S175)

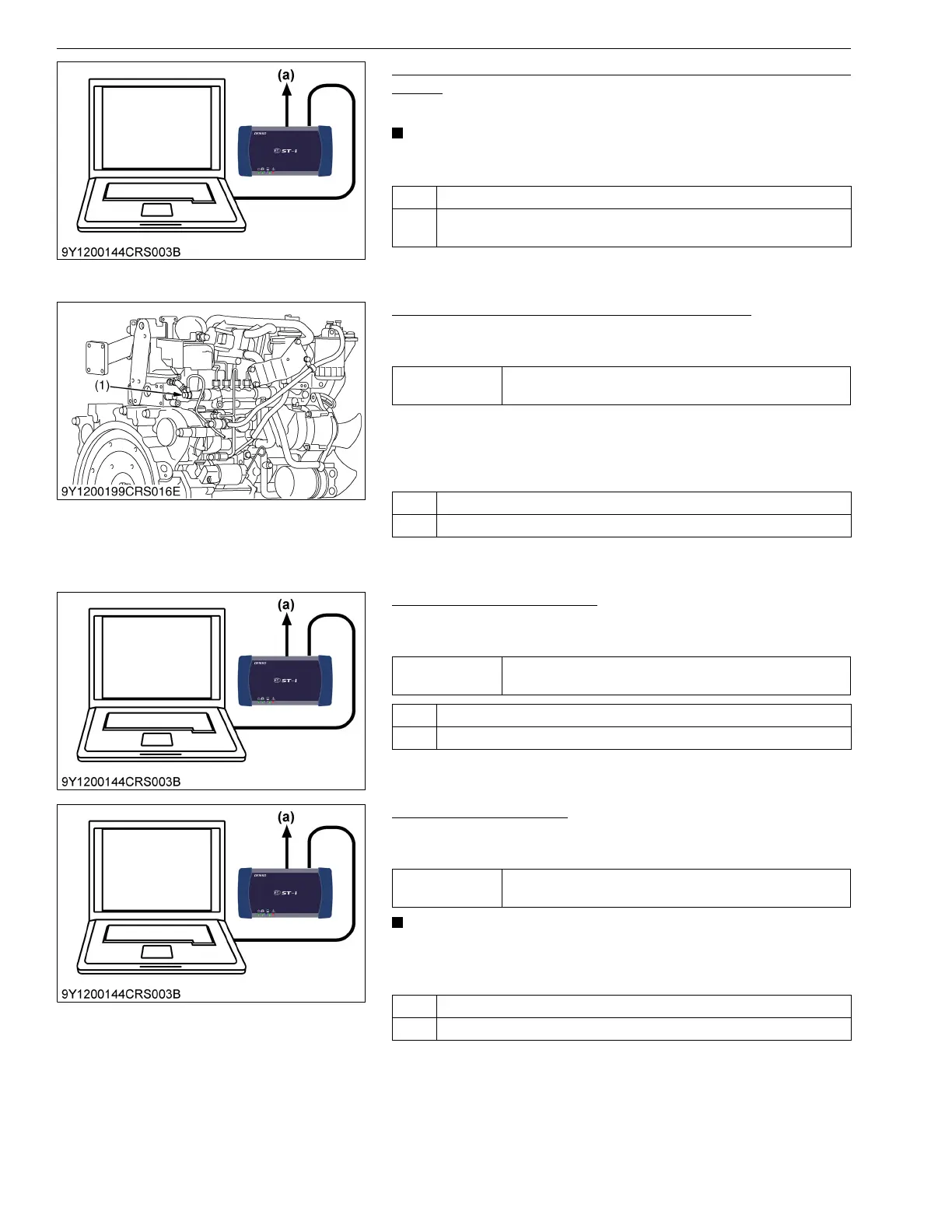

(a) CAN1 Connector
Service
specification
Almost the same as the ambient temperature.
OK Go to "6. Check for a Fuel Leakage".
NG Replace the common rail (pressure limiter).
(1) Pressure Limiter
Service
specification
No fuel leaks.
OK Go to "7. Check the DTC Again".
NG Locate the leakage position and repair it.
(a) CAN1 Connector
Service
specification
Normal (No DTC is output.)
OK Normal.
NG Go to "8. Check the SCV-related Data".
(a) CAN1 Connector
