COMMON RAIL SYSTEM
07-CR-E5,07-CR-TE5,07-CR-TIE5, DM
1-S176
9Y3200007CRS0234US0
1. Check the Rail Pressure Sensor Signals
1. Place the key switch in the ON position, and check the "Actual
rail pressure" and "Rail pressure sensor output voltage" on the
diagnosis tool data monitor.
2. Next, start the engine, change the depressed amount of the
accelerator pedal, and check the same items again.
NOTE
• When idling: Approx. 40 to 50 MPa (410 to 500 kgf/cm
2
, 5800
to 7200 psi)
During no-load maximum speed: 95.0 to 115 MPa
(969 to 1170 kgf/cm
2
, 13800 to 16600 psi)
• Reference value (service specification) has complete
linearity.
9Y3200007CRS0235US0

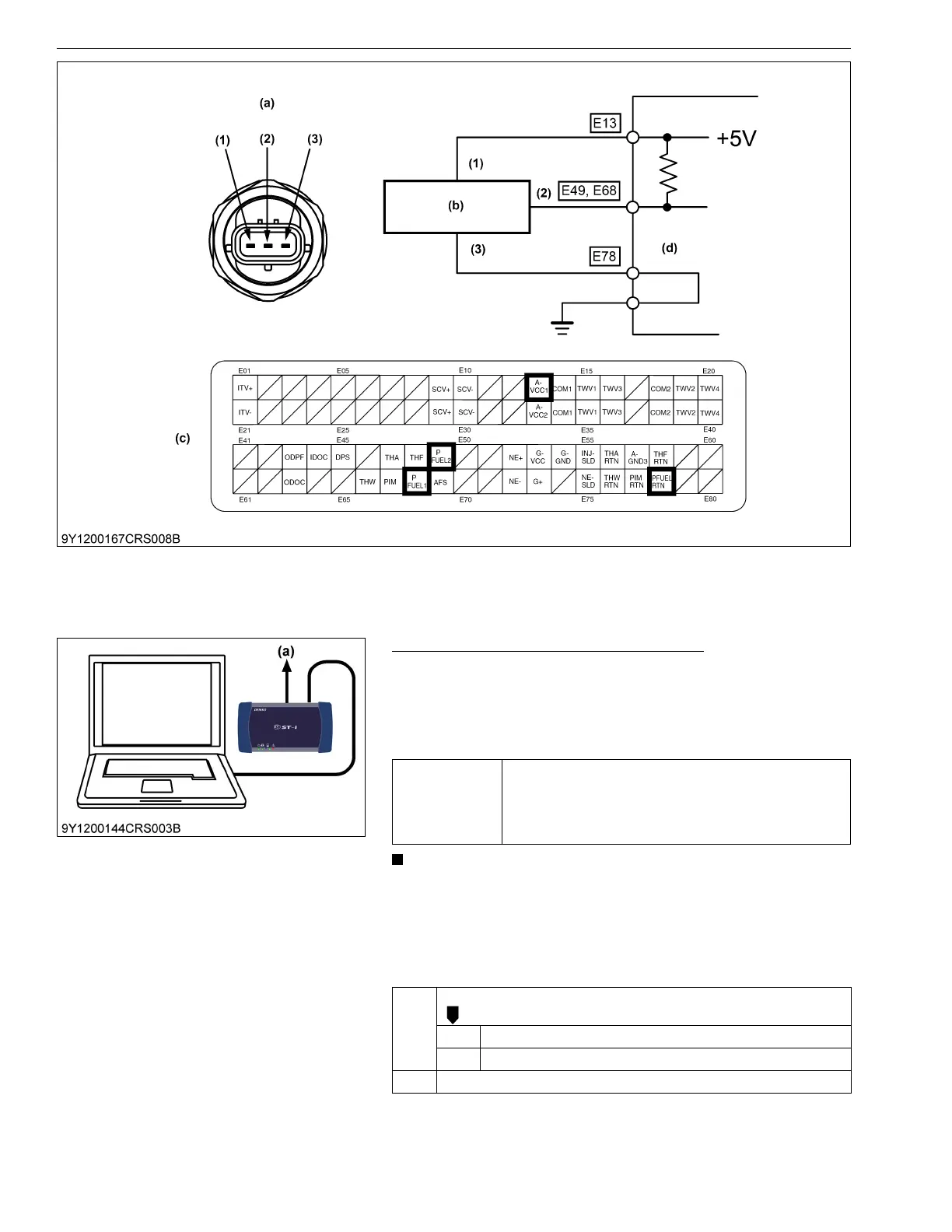

(1) Terminal A-VCC1
(2) Terminal PFUEL
(3) Terminal PFUEL RTN (a) Pin Assignment
(b) Rail pressure sensor
(c) Engine ECU Connector 1
(Engine Side)
(d) Engine ECU
Service
specification
Depends on the rotation speed, load (After warm-up)
1. When stopped: Approx. 1.0 V
2. When idling: 1.65 to 1.80 V
3. During no-load maximum speed: 2.50 to 2.85 V
4. During acceleration: 2.5 to 3.3 V
OK Clear the DTC and check whether it is output again or not.
OK Normal.
NG Replace the engine ECU.
NG Go to "2. Measure the Engine ECU terminal voltage".
(a) CAN1 Connector
