COMMON RAIL SYSTEM
07-CR-E5,07-CR-TE5,07-CR-TIE5, DM
1-S192
9Y3200007CRS0266US0
1. Check the Crankshaft Position Sensor Signals
1. Rotate the engine, and check the "Engine speed active flag"
value on the diagnosis tool data monitor.
9Y3200007CRS0267US0

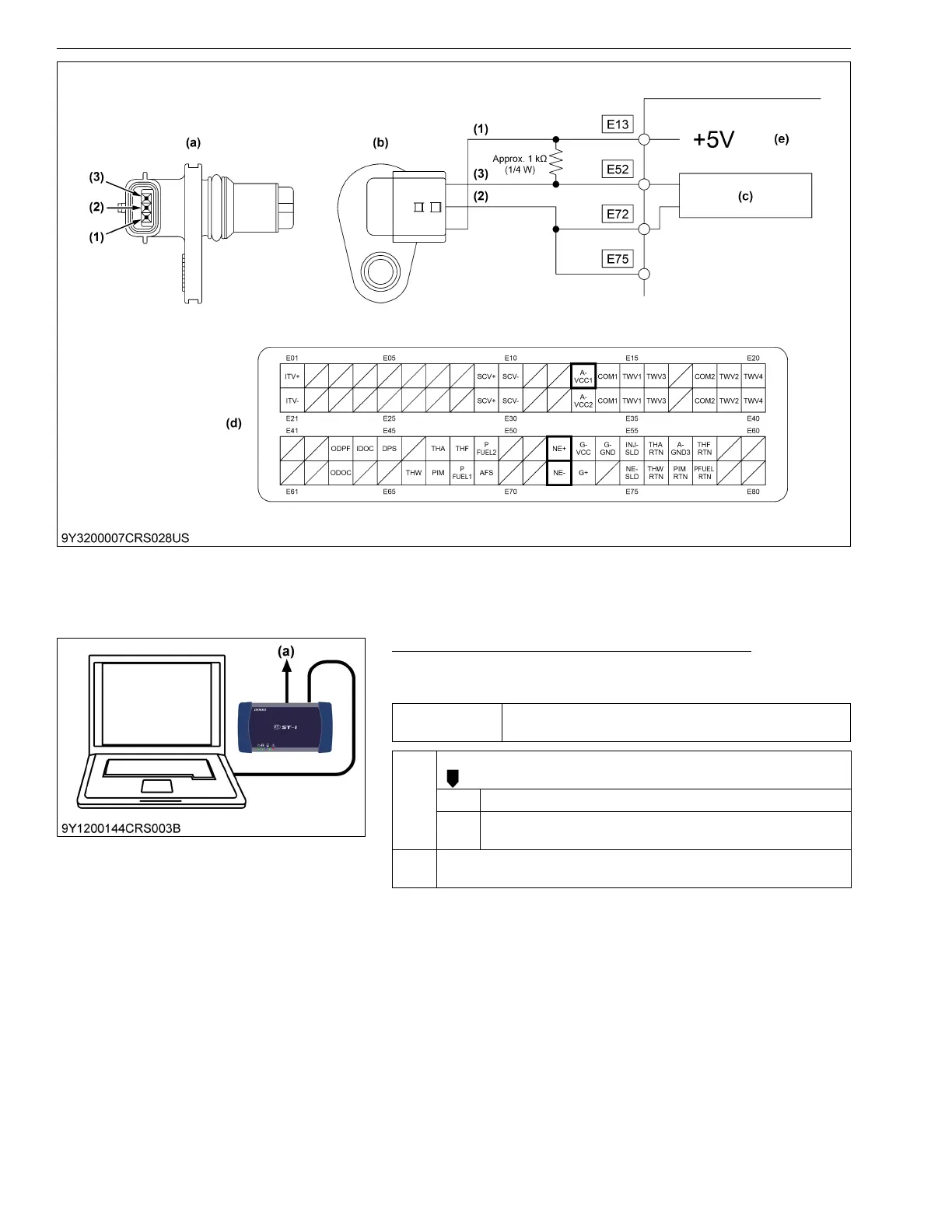

(1) Terminal A-VCC1
(2) Terminal NE−
(3) Terminal NE+
(a) Pin Assignment
(b) Crankshaft Position Sensor
(NE Sensor)
(c) NE Sensor Input Circuit
(d) Engine ECU Connector 1
(Engine Side)
(e) Engine ECU
Service
specification
Always ON
OK It should be confirmed two or more times while changing the accelerator.
OK Normal.
NG Go to "2. Check the Voltage Between Crankshaft Position
Sensor Terminals".
NG Go to "2. Check the Voltage Between Crankshaft Position Sensor
Terminals".
(a) CAN1 Connector
KiSC issued 03, 2022 A
