Kubota 07-CR-E5 - Page 262

COMMON RAIL SYSTEM
07-CR-E5,07-CR-TE5,07-CR-TIE5, DM
1-S224
9Y3200007CRS0339US0

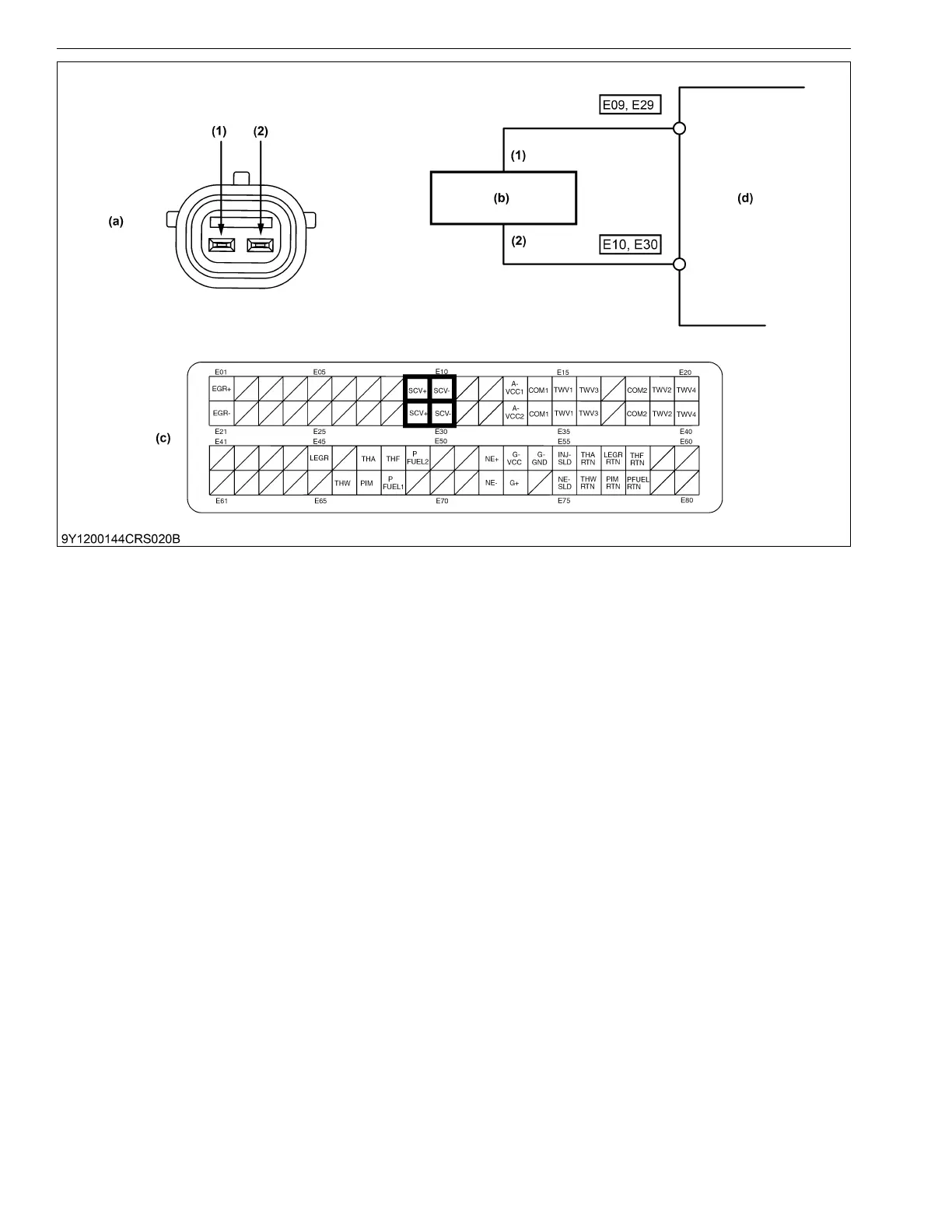

(1) Terminal SCV+
(2) Terminal SCV-
(a) Pin Assignment
(b) Suction Control Valve (SCV)
(c) Engine ECU Connector 1
(Engine Side)
(d) Engine ECU
