COMMON RAIL SYSTEM
07-CR-E5,07-CR-TE5,07-CR-TIE5, DM
1-S226

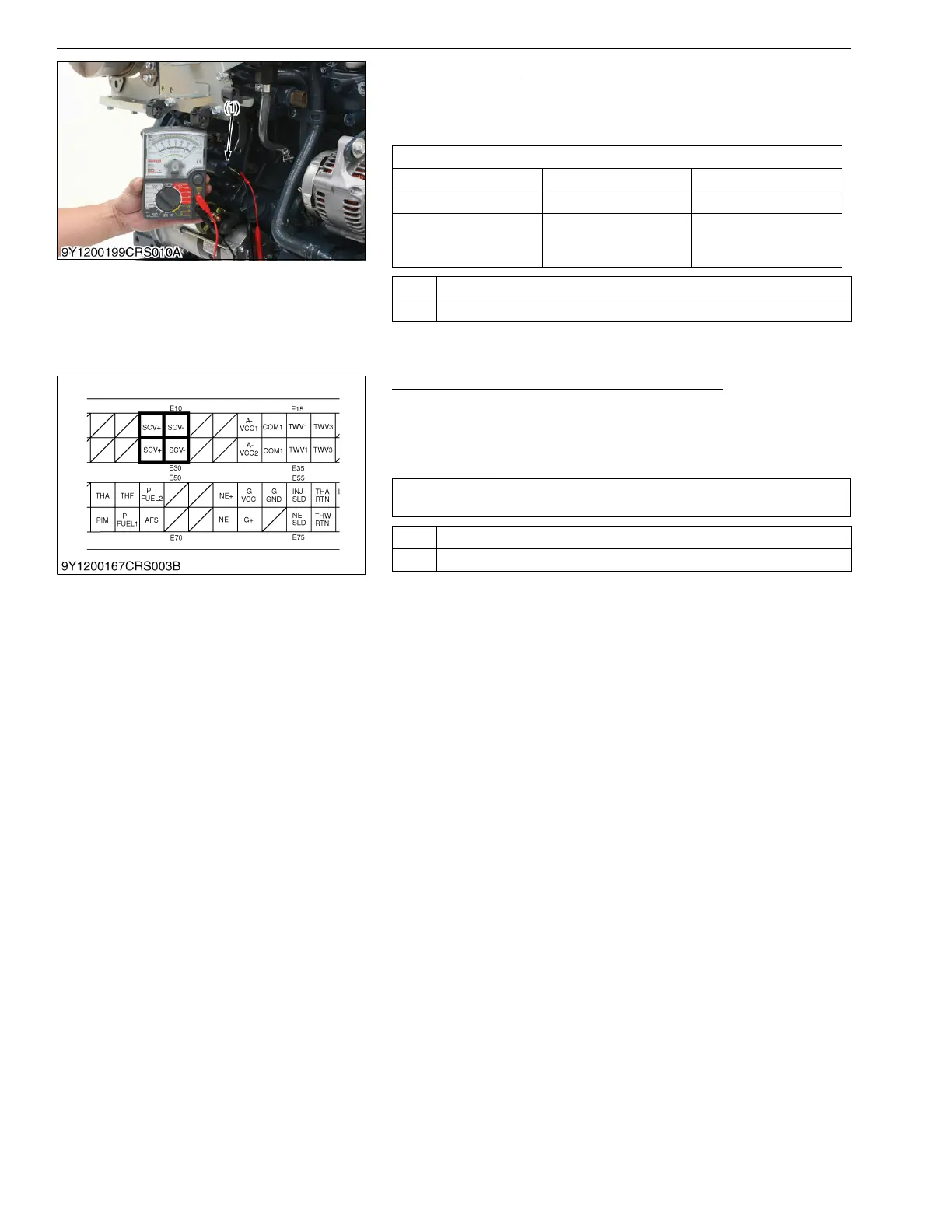

3. Check the SCV
1. Turn the key switch OFF, remove the connector from the SCV
side and measure the resistance between the terminals on the
SCV side.
9Y3200007CRS0342US0
4. Measure the Engine ECU Terminal Voltage
1. Unplug the engine ECU wiring harness connector 1 from
socket, and measure the voltage between engine ECU
terminals E09 / E29 and E10 / E30 and the ground (at the wiring
harness side).
9Y3200007CRS0343US0
Service specification
Item Temperature Resistance
Resistance 20 °C (68 °F) Approx. 2.1 Ω
Insulation resistance
(between terminal
valves)
20 °C (68 °F) 100 MΩ or higher
OK Wiring harness open circuit or connector fault → Check and replace.
NG SCV fault → Replace the SCV or supply pump unit (under warranty).
(1) SCV (Suction Control Valve)
Service
specification
Both must be approx. 0 V.
OK Normal.
NG Replace the wiring harness.
To Next Page
