COMMON RAIL SYSTEM
07-CR-E5,07-CR-TE5,07-CR-TIE5, DM
1-S230
9Y3200007CRS0350US0

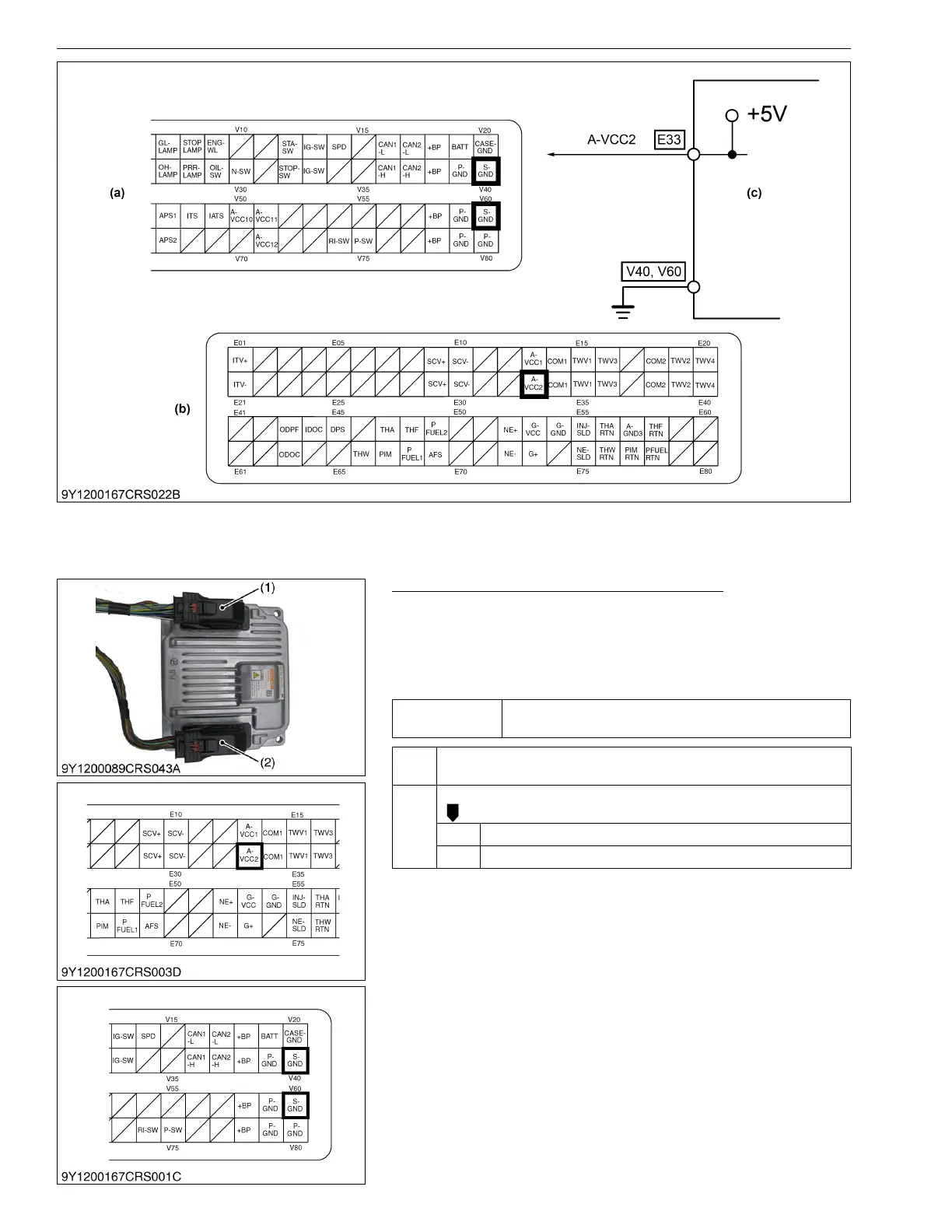

1. Measure the Engine ECU Terminal Voltage
1. Place the key switch in the OFF position, and unplug the engine
ECU wiring harness connector 1 (1) from the socket.
2. Move the key switch from the OFF to the ON position, and
measure the voltage between engine ECU terminals E33 and
V40 / V60.
9Y3200007CRS0351US0
(a) Engine ECU Connector 2
(Machine Side)
(b) Engine ECU Connector 1
(Engine Side)
(c) Engine ECU
Service
specification
Approx. 5 V
OK Check the wiring harness (Engine ECU terminal E33) for a short.
Replace the faulty area.
NG Check the harness connectors and engine ECU pins.
OK Faulty engine ECU Replace.
NG Repair or replace the wiring harness, or replace the engine ECU.
(1) Engine ECU Wiring Harness
Connector 1 (Engine Side)
(2) Engine ECU Wiring Harness
Connector 2 (Machine Side)
