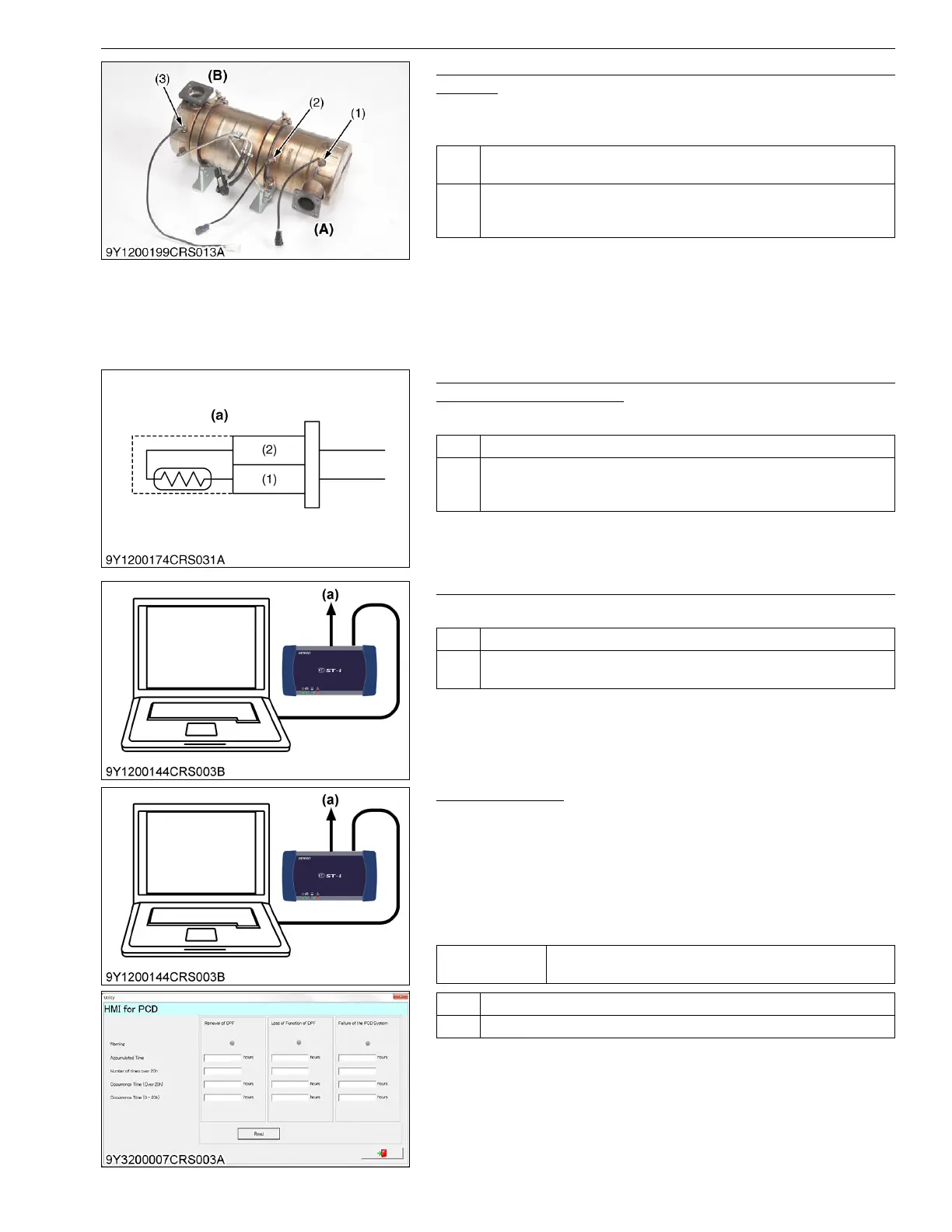

3. Check the Installation of All Exhaust Gas Temperature
Sensors
1. Check the installation of all exhaust gas temperature sensors
(T
0
, T
1
and T
2
).
9Y3200007CRS0555US0
4. Check the Exhaust Gas Temperature Sensors (Refer to Items
P0543, P0546 and P242C)
1. Check the exhaust gas temperature sensors (T
0
, T
1
and T
2
).
9Y3200007CRS0556US0
5. Check the Differential Pressure Sensor (Refer to Item P2455)
1. Check the installation of the differential pressure sensor.
9Y3200007CRS0557US0
6. Check the DTC
1. Place the key switch in the OFF position, attach the diagnosis
tool to the CAN1 connector, and return the key switch to the ON
position again.
2. Clear the DTC, and check whether the same DTC (P1A28) is
output again or not.
3. Check the "HMI for PCD" screen and confirm that no warning is
displayed.
9Y3200007CRS0558US0
OK Go to "4. Check the Exhaust Gas Temperature Sensors (Refer to Items
P0543, P0546 and P242C)".
NG Replace the exhaust gas temperature sensor or engine combustion main
parts. (Follow the diagnostic procedure of items P0543, P0546 and
P242C)
(1) Exhaust Gas Temperature
Sensor T
0
(2) Exhaust Gas Temperature
Sensor T
1
(3) Exhaust Gas Temperature
Sensor T
2
(A) Exhaust Inlet Side
(B) Exhaust Outlet Side
OK Go to "5. Check the Differential Pressure Sensor (Refer to Item P2455)".
NG Replace the exhaust gas temperature sensor or engine combustion main
parts. (Follow the diagnostic procedure of items P0543, P0546 and
P242C)
(1) Terminal A-GND3
(2) Terminal IDOC, ODOC or ODPF
(a) Exhaust Gas Temperature
Sesnsor (T
0
, T
1
and T
2
)
OK Go to "6. Check the DTC Again".
NG Replace the differential pressure sensor or related parts. (Follow the
diagnostic procedure of item P2455)
(a) CAN1 Connector
Service
specification
No DTC is output and no warnings are displayed.
OK Normal
NG Start again from procedure 2. to 6. and confirm the content of procedure.
