P2415 / 523577-2: EGR (DC motor) temperature sensor failure
Behaviour during malfunction:
• Insufficient output
• Worsening exhaust gas performance
Detection item:
• EGR (DC motor) temperature sensor failure
DTC set preconditions:
• Battery voltage is normal
• No DTC of U0077 "CAN1 Bus off"
• EGR control line is normal
DTC set parameter:
• EGR (DC motor) temperature sensor error signal received via CAN
Engine warning light:
•ON
Limp home action by engine ECU (system action):
• Output limitation: Approximately 75 % of normal condition
•EGR stop
Recovery from error:
• Key switch turn OFF
9Y3200007CRS0428US0
9Y3200007CRS0297US0

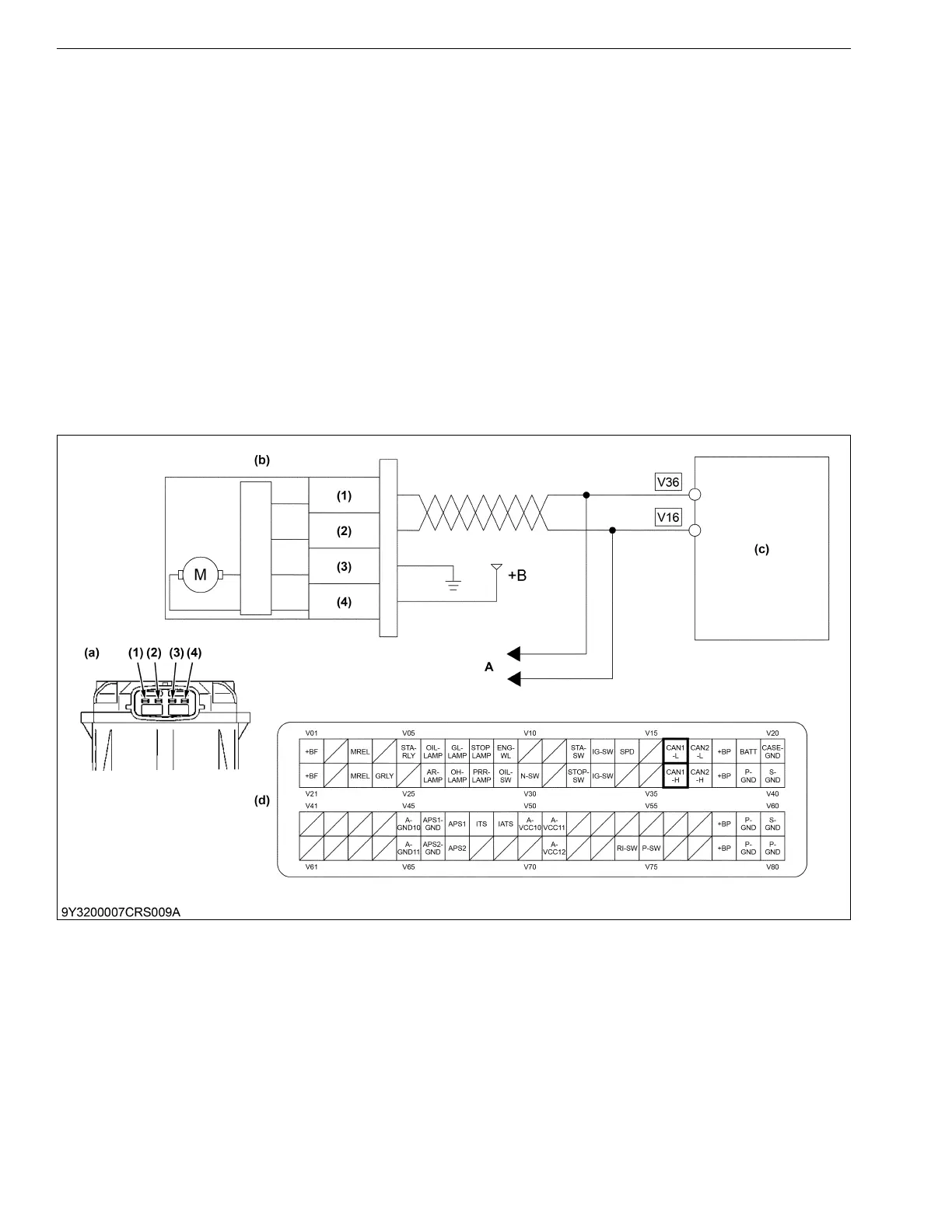

(1) Terminal CAN-H
(2) Terminal CAN-L
(3) Terminal Ground
(4) Terminal Power (+12 V)
(a) Pin Assignment
(b) EGR Valve Assembly
(c) Engine ECU
(d) Engine ECU Connector 2
(Machine Side)
A: To Diagnosis Tool
