COMMON RAIL SYSTEM
07-CR-E5,07-CR-TE5,07-CR-TIE5, DM
1-S285
7. Check the DTC
1. After replace the wiring harness or engine ECU, place the key
switch in the OFF position, attach the diagnosis tool to the
CAN1 connector, and return the key switch to the ON position
again.
2. Clear the DTC, and check whether the same DTC (P2455) is
output again or not.
3. Check the "HMI for PCD" screen and confirm that no warning is
displayed.
9Y3200007CRS0567US0
Service
specification
No DTC is output and no warnings are displayed
OK Normal
NG Start again from procedure 2. to 7. and confirm the content of procedure.

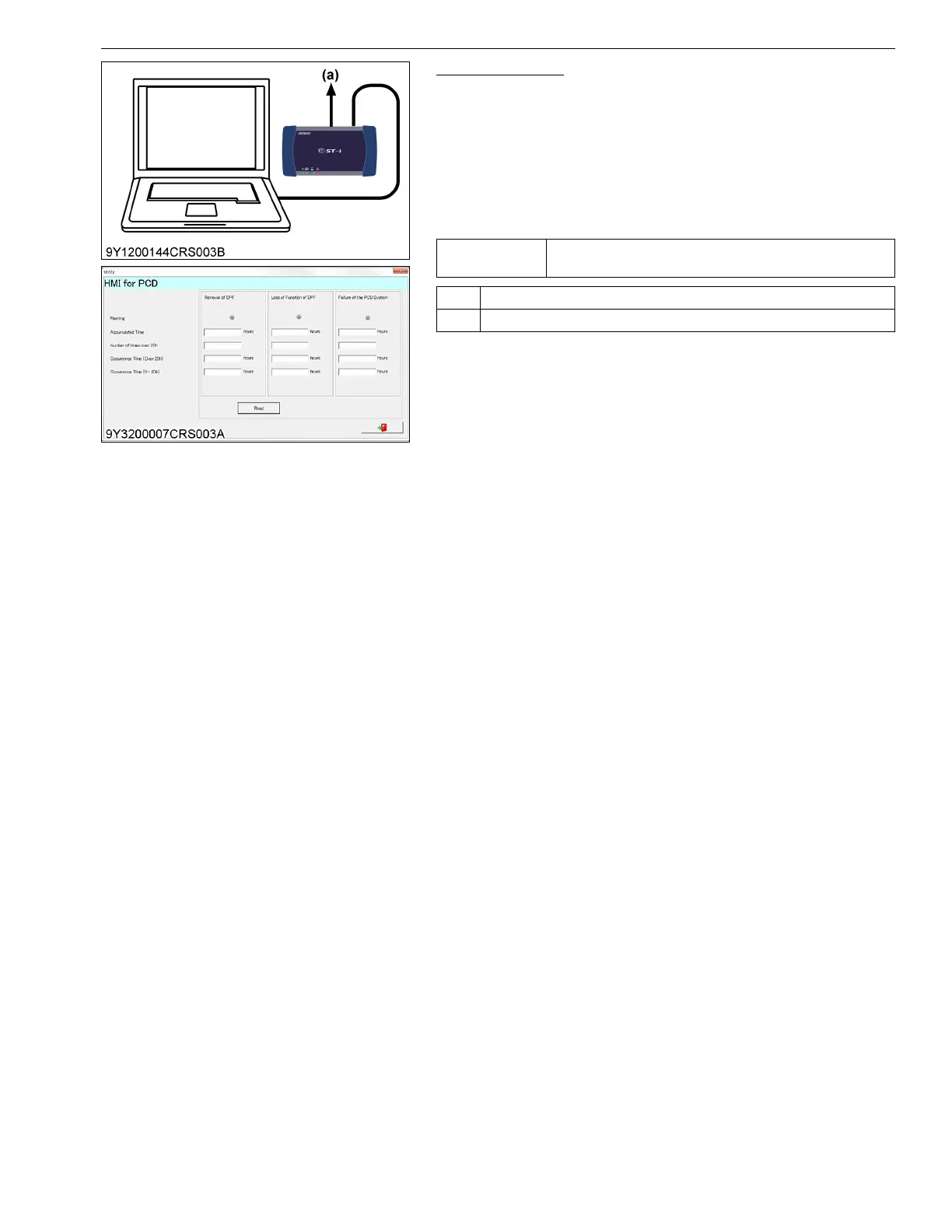

(a) CAN1 Connector
To Next Page
