COMMON RAIL SYSTEM
07-CR-E5,07-CR-TE5,07-CR-TIE5, DM
1-S306

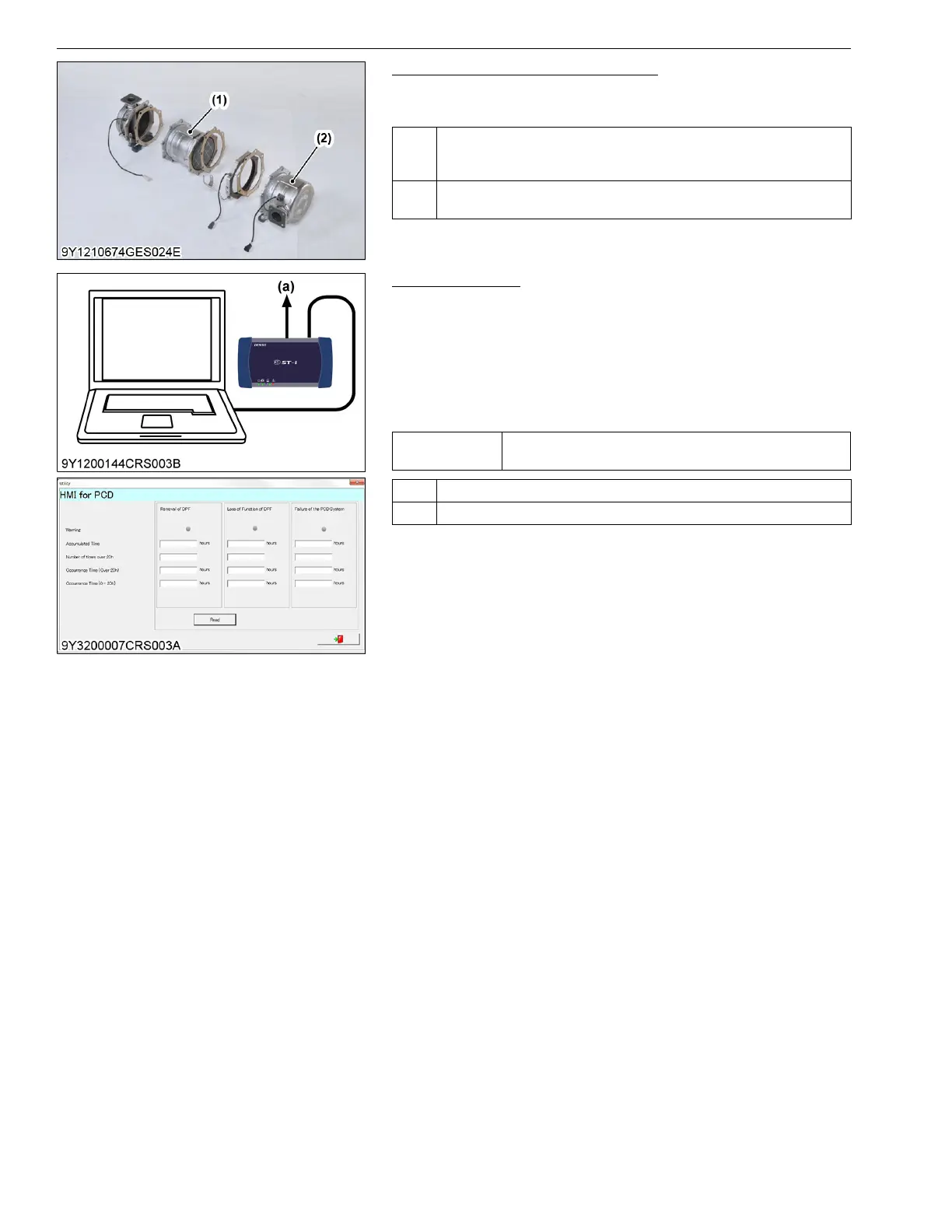

3. Check the DPF Ceramics Element
1. Remove the DPF and check whether there is no crack and loss
of the ceramics element.
9Y3200007CRS0560US0
4. Check the DTC
1. Place the key switch in the OFF position, attach the diagnosis
tool to the CAN1 connector, and return the key switch to the ON
position again.
2. Clear the DTC, and check whether the same DTC (P3015) is
output again or not.
3. Check the "HMI for PCD" screen and confirm that no warning is
displayed.
9Y3200007CRS0561US0
OK Reassemble the DPF in the correct direction (Follow the work shop
manual procedure of item "Cleaning of DPF") and go to "4. Check the
DTC".
NG Replace the DPF with new one and reassemble in the correct direction.
(Follow the work shop manual procedure of item "Cleaning of DPF")
(1)DPF (2)Catalyst (DOC)
Service
specification
No DTC is output and no warnings are displayed.
OK Normal
NG Start again from procedure 2. to 4. and confirm the content of procedure.
(a) CAN1 Connector
