COMMON RAIL SYSTEM
07-CR-E5,07-CR-TE5,07-CR-TIE5, DM
1-S19
3. Glow relay actuation test

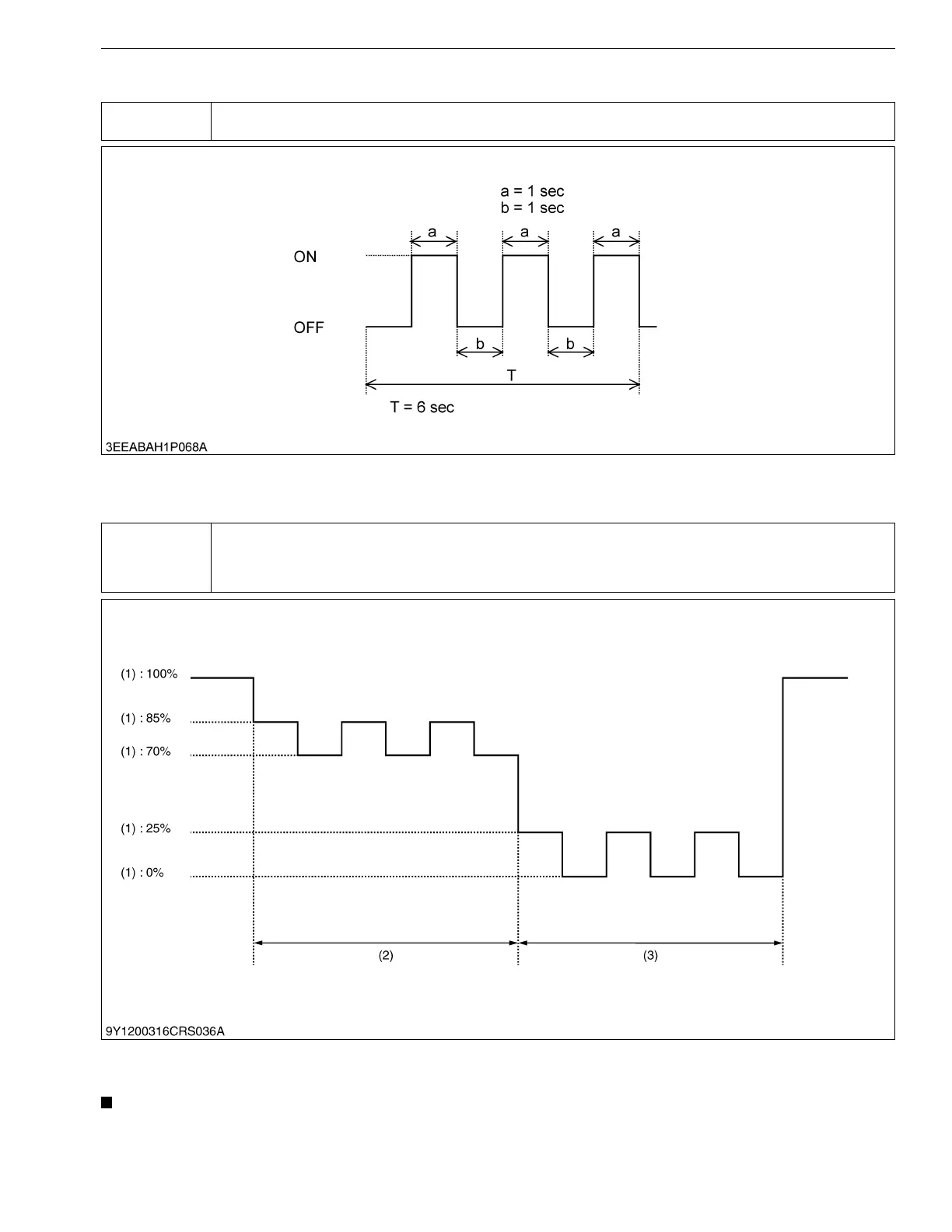

• Operate as shown in the diagram below and in accordance with the requests from the tool.
4. Intake throttle valve actuation test
• Operate as shown in the diagram below and in accordance with the requests from the tool.
• In some cases the actual opening may be different from the target opening.
The reason for this is because the learning value is always reflected for 0 lift, after being used for a long
time 0 points are shifted.
As such, the service specification is a relative evaluation and not an absolute evaluation.
Service
specification
Operate repeatedly between ON and OFF in accordance with the specified cycle.
Service
specification
Low side: When target intake throttle valve opening of 10 % and 25 % are given alternately, there must not be disparity in
the intake throttle valve lift.
High side: When target intake throttle valve opening of 70 % and 85 % are given alternately, there must not be disparity in
the intake throttle valve lift.
(1) Opening (2) Operation Check on the Fully
Open Valve Side
(3) Operation Check on the Fully
Closed Valve Side
To Next Page
