COMMON RAIL SYSTEM
07-CR-E5,07-CR-TE5,07-CR-TIE5, DM
1-S23

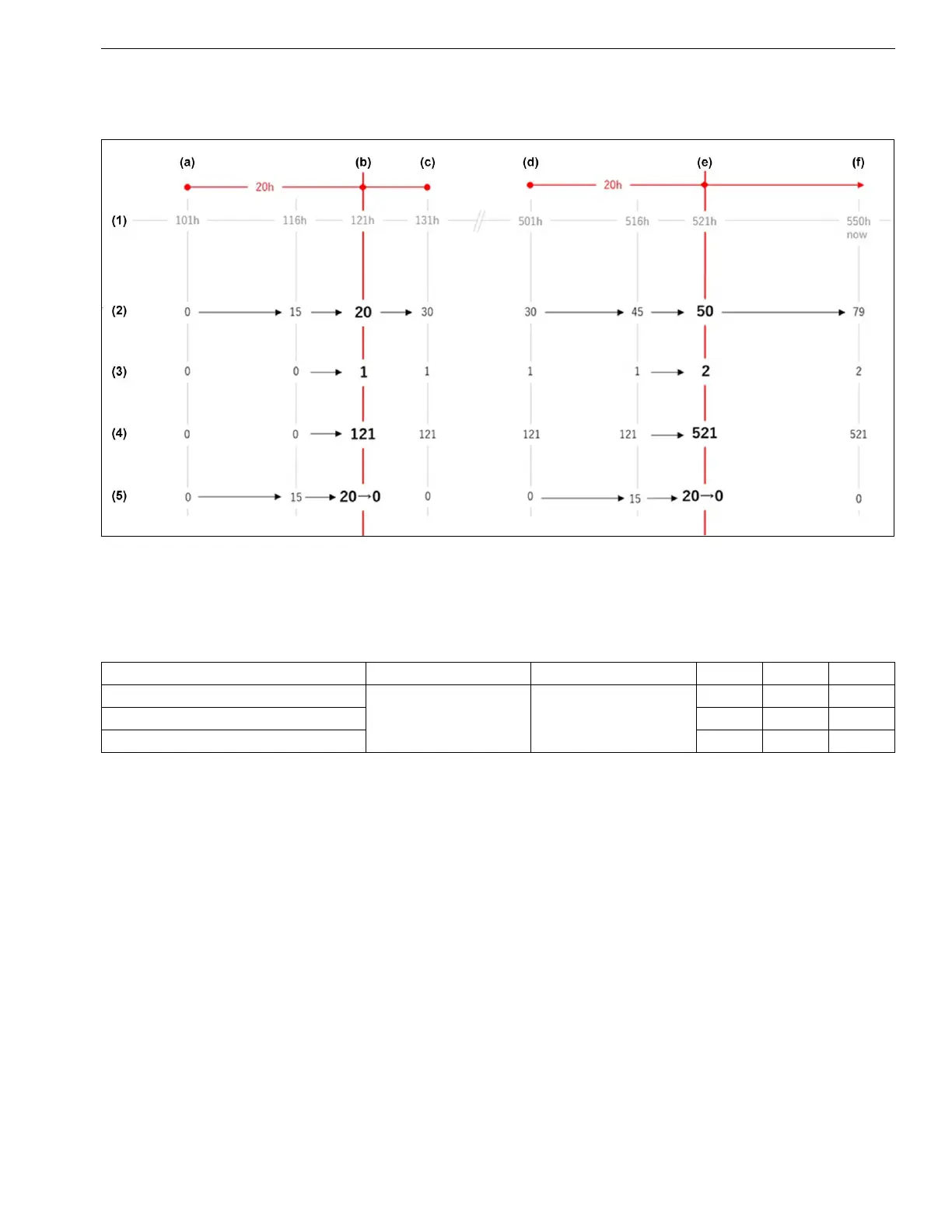

• Example of HMI for PCD utility screen
(Scenario)
(a) DTC for PCD is set at 101h of hour-meter → (c) fixed at 131h
(d) DTC for PCD is set again at 501h → (f) it is not fixed yet at now (550h)
• The following DTCs were set as DTC for PCD.
• The following acts are regarded as fraudulent acts against PM purification.
(1) Hour Meter
(2) Accumulated Time
(3) Number of Times Over 20h
(4) Occurrence Time Over 20h
(5) Duration Time (0 - 20h)
(a) 1st Time DTC for PCD
Occurred
(b) Violation
(c) Fixed
(d) 2nd Time DTC for PCD
Occurred
(e) Violation
(f) Not Yet Fixed
Monitor type Subject component Inducement P-code SPN FNI
Removal of the DPF system
DPF system No applicable
P1A28 3936 7
Loss of function of the DPF system P3015 3936 2
Failures of the DPF system P2455 3251 3
