7 Programming
Outputs
7.6.17 Wait statement (read digital input)
Description The function block KRC_WaitForInput stops the program until a digital input
takes the defined value. Program execution is then resumed.
Memory
Inputs
Continue BOOL TRUE = output written in advance run
BufferMode INT Mode in which the statement is executed
 0: DIRECT
 1: ABORTING
 2: BUFFERED
(>>> "BufferMode" Page 27)
Parameter Type Description
Parameter Type Description
ErrorID DINT Error number
Busy BOOL TRUE = statement is currently being trans-
ferred or has already been transferred
Done BOOL TRUE = statement has been executed
Aborted BOOL TRUE = statement was aborted before it was
processed in the advance run
Error BOOL TRUE = error in function block

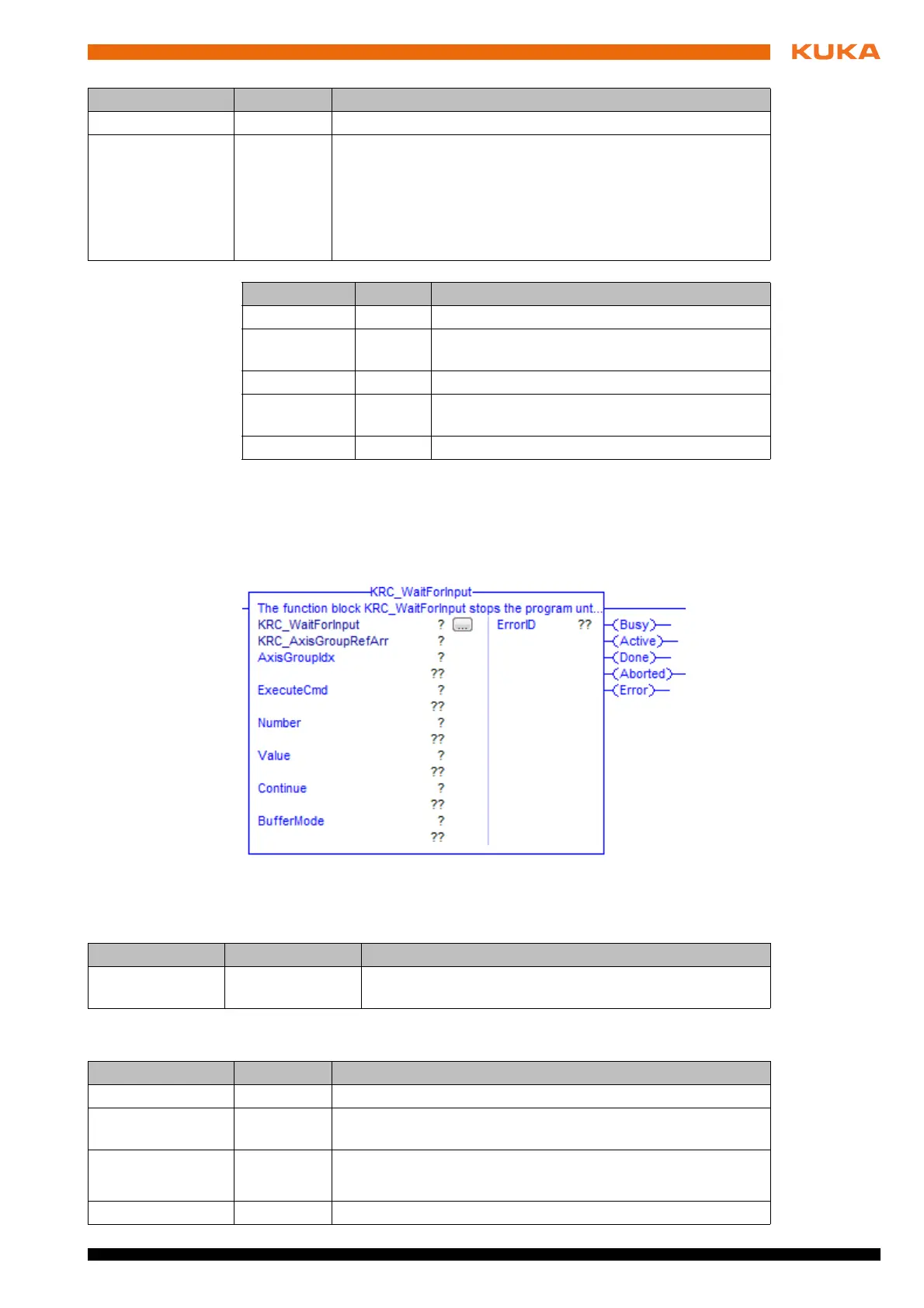

Fig. 7-18: Function block KRC_WaitForInput
Parameter Type Description
KRC_AxisGroup
RefArr
AXIS_GROUP_
REF_ARR
Reference to the internal structure of the axis group
Parameter Type Description
AxisGroupIdx INT Index of axis group
ExecuteCmd BOOL The statement is executed in the case of a rising edge of the
signal.
Number INT Number of the digital input
 1 … 2,048
Value BOOL Setpoint value of the digital input
